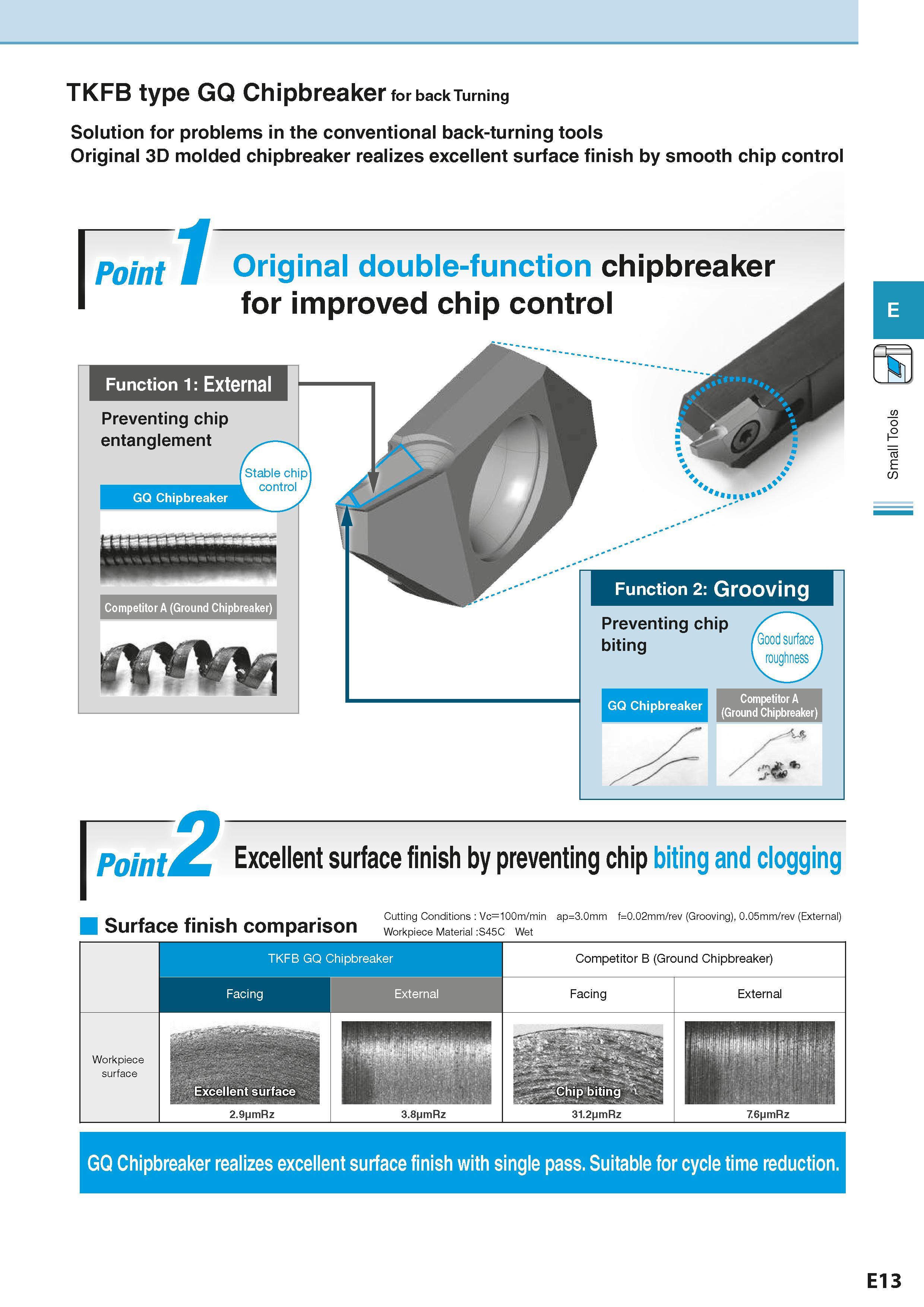

TKFB type GQ Chipbreaker for back Turning Solution for problems in the conventional back-turning tools Original 3D molded chipbreaker realizes excellent surface finish by smooth chip control Point 1 Original double-function chipbreaker for improved chip control Function 2: Grooving Preventing chip biting GQ ChipbreakeJ (Grou QMpbreaker) 2 Point Excellent surface finish by preventing chip biting and clogging r . - Cutting Conditions Vc=100m/min ap=3.0mm f=0.02mm/rev (Grooving), 0.05mm/rev (External) Surface finish comparison Workpiece Material S45C Wet TKFB GQ Chipbreaker Facing External Competitor B (Ground Chipbreaker) Facing External Workpiece surface 2.9 jmRz 3.8 mRz 31.2 jmRz 7.6 mRz GQ Chipbreaker realizes excellent surface finish with single pass. Suitable for cycle time reduction. E13 Small Tools
