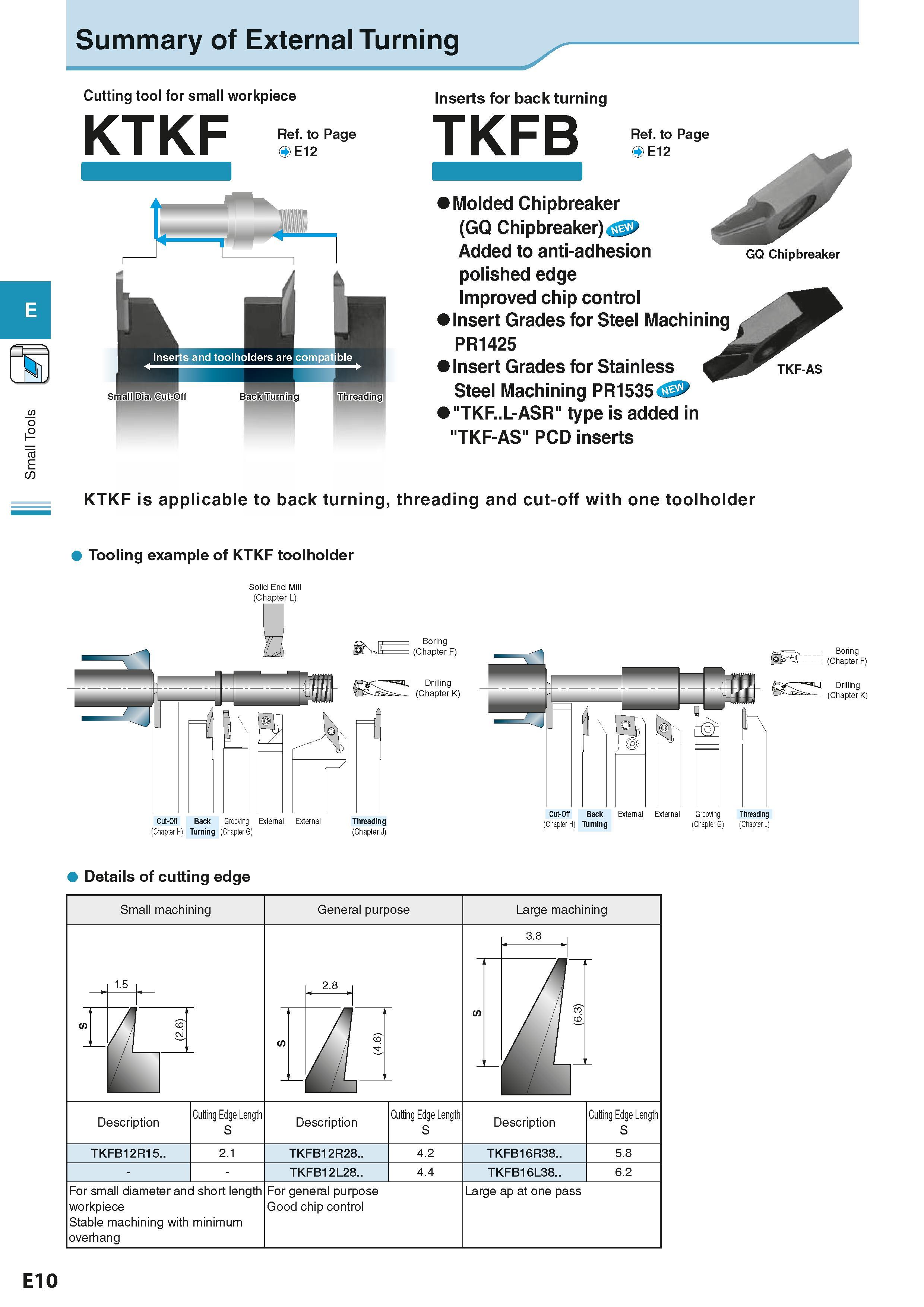

Small Tools Summary of External Turning Cutting tool for small workpiece KTKF Ref. to Page OE12 Small Dia. Cut-Off Inserts for back turning TKFB Ref. to Page E12 Molded Chipbreaker (GQ Chipbreaker) > Added to anti-adhesion polished edge Improved chip control Insert Grades for Steel Machining PR1425 Insert Grades for Stainless Steel Machining PR1535 "TKF..L-ASR" type is added in "TKF-AS" PCD inserts GQ Chipbreaker TKF-AS KTKF is applicable to back turning, threading and cut-off with one toolholder Tooling example of KTKF toolholder Solid End Mill (Chapter L) Sh J (Chapter F) Drilling (Chapter K) Cut-Off Back Grooving External External Threading (Chapter H) Turning (Chapter G) (Chapter J) Boring tOkSS (Chapter F) Cut-Off Back External External Grooving Threading (Chapter H) Turning (Chapter G) (Chapter J) Details of cutting edge Small machining General purpose Large machining 2.8 a a Description Cutting Edge Length S Description Cutting Edge Length S Description Cutting Edge Length S TKFB12R15.. 2.1 TKFB12R28.. 4.2 TKFB16R38.. 5.8 TKFB12L28.. 4.4 TKFB16L38.. 6.2 For small diameter and short length workpiece Stable machining with minimum overhang For general purpose Good chip control Large ap at one pass E10
