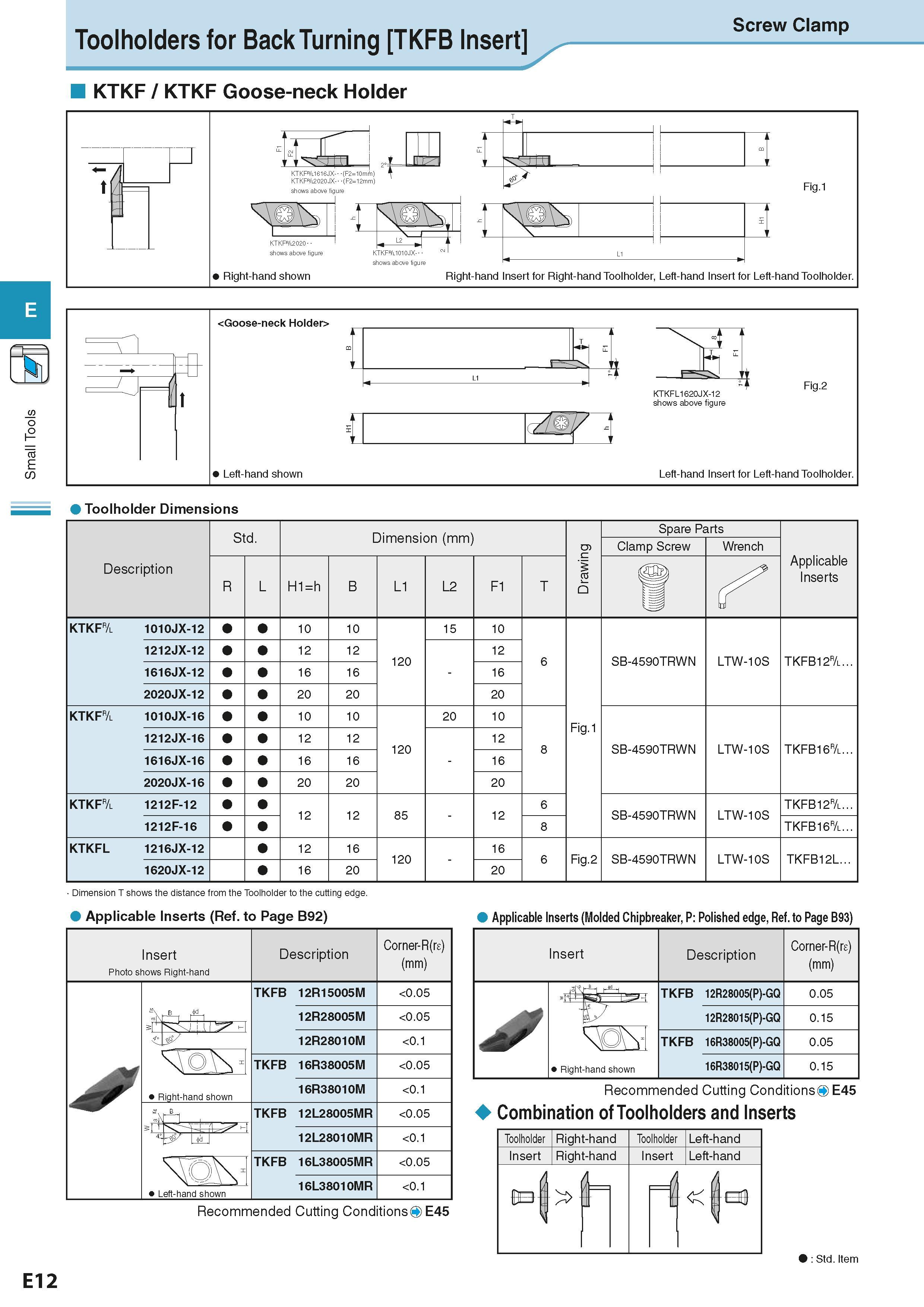

Small Tools Toolholders for Back Turning TKFB Insert Screw Clamp KTKF / KTKF Goose-neck Holder Toolholder Dimensions Description Обозначение инструмента для заказа Std. Dimension (mm) Размеры инструмента указаны в мм Drawing Spare Parts Applicable Inserts Clamp Screw Wrench R L H1=h B L1 L2 F1 T u KTKF& 1010JX-12 10 10 120 15 10 6 Fig.1 SB-4590TRWN LTW-10S TKFB12r/l... 1212JX-12 12 12 - 12 1616JX-12 16 16 16 2020JX-12 20 20 20 KTKF& 1010JX-16 10 10 120 20 10 8 SB-4590TRWN LTW-10S TKFB16r/l... 1212JX-16 12 12 - 12 1616JX-16 16 16 16 2020JX-16 20 20 20 KTKF& 1212F-12 12 12 85 - 12 6 SB-4590TRWN LTW-10S TKFB12r/l... 1212F-16 8 TKFB16r/l... KTKFL 1216JX-12 12 16 120 - 16 6 Fig.2 SB-4590TRWN LTW-10S TKFB12L... 1620JX-12 16 20 20 Dimension T shows the distance from the Toolholder to the cutting edge. Applicable Inserts (Ref. to Page B92) Applicable Inserts (Molded Chipbreaker, P: Polished edge, Ref. to Page B93) Insert Photo shows Right-hand Description Corner-R(re) (mm) TKFB 12R15005M 12R28005M 12R28010M TKFB 16R38005M Right-hand shown 16R38010M TKFB 12L28005MR 12L28010MR TKFB 16L38005MR Left-hand shown 16L38010MR <0.05 <0.05 <0.1 <0.05 <0.1 <0.05 <0.1 <0.05 <0.1 Recommended Cutting Conditions E45 B Insert Description Corner-R(rE) (mm) TKFB 12R28005(P)-GQ 0.05 12R28015(P)-GQ 0.15 TKFB 16R38005(P)-GQ 0.05 Right-hand shown 16R38015(P)-GQ 0.15 Recommended Cutting ConditionsO E45 Combination of Toolholders and Inserts Toolholder Right-hand Toolholder Left-hand Insert Right-hand Insert Left-hand / r B Std. Item E12
