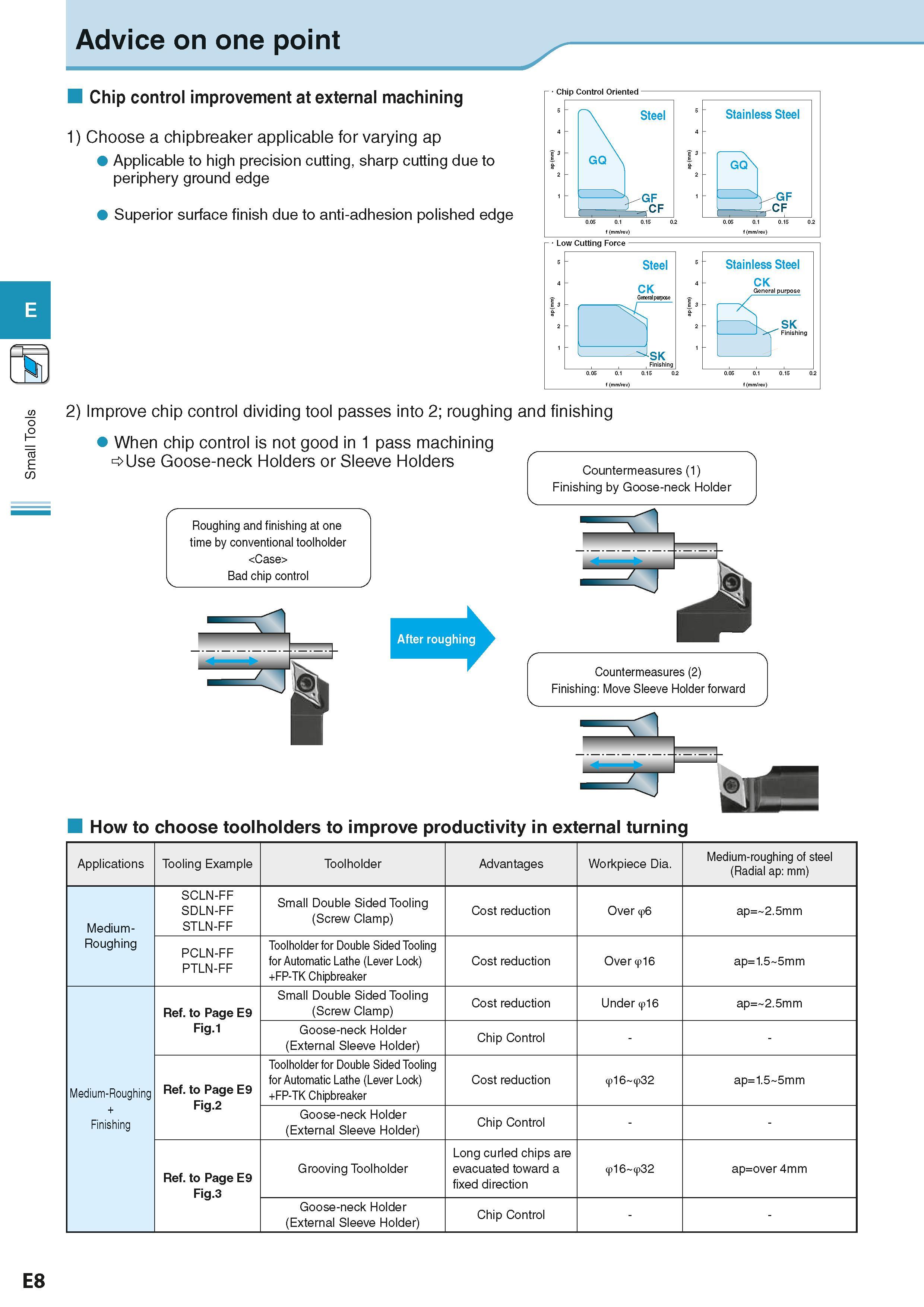

Small Tools Advice on one point Chip control improvement at external machining 1) Choose a chipbreaker applicable for varying ap Applicable to high precision cutting, sharp cutting due to periphery ground edge Superior surface finish due to anti-adhesion polished edge Chip Control Oriented - Stainless Steel GQ C GF CF 0.15 0.2 Low Cutting Force 5 2) Improve chip control dividing tool passes into 2; roughing and finishing When chip control is not good in 1 pass machining Use Goose-neck Holders or Sleeve Holders Countermeasures (1) Finishing by Goose-neck Holder 5 - 4 - E 3 - 2 - f (mm/rev) E 3 How to choose toolholders to improve productivity in external turning Applications Tooling Example Toolholder Advantages Workpiece Dia. Medium-roughing of steel (Radial ap: mm) Medium- Roughing SCLN-FF SDLN-FF STLN-FF Small Double Sided Tooling (Screw Clamp) Cost reduction Over 96 ap= 2.5mm PCLN-FF PTLN-FF Toolholder for Double Sided Tooling for Automatic Lathe (Lever Lock) +FP-TK Chipbreaker Cost reduction Over 916 ap=1.5 5mm Medium-Roughing + Finishing Ref. to Page E9 Fig.1 Small Double Sided Tooling (Screw Clamp) Cost reduction Under 916 ap= 2.5mm Goose-neck Holder (External Sleeve Holder) Chip Control Ref. to Page E9 Fig.2 Toolholder for Double Sided Tooling for Automatic Lathe (Lever Lock) +FP-TK Chipbreaker Cost reduction 916 932 ap=1.5 5mm Goose-neck Holder (External Sleeve Holder) Chip Control Ref. to Page E9 Fig.3 Grooving Toolholder Long curled chips are evacuated toward a fixed direction 916 932 ap=over 4mm Goose-neck Holder (External Sleeve Holder) Chip Control E8
