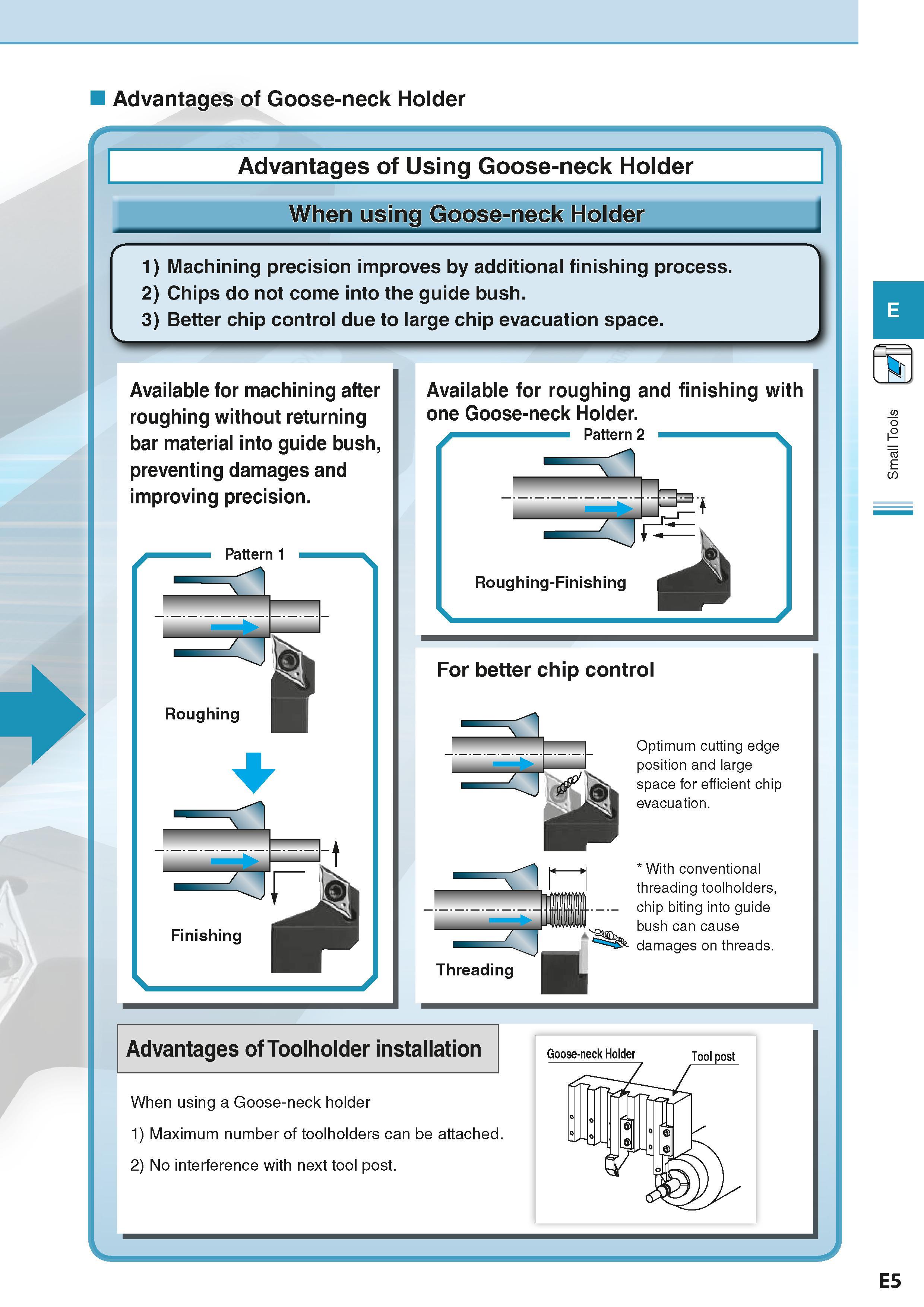

Advantages of Goose-neck Holder r \ Advantages of Using Goose-neck Holder When using Goose-neck Holder 1) Machining precision improves by additional finishing process. 2) Chips do not come into the guide bush. 3) Better chip control due to large chip evacuation space. Available for machining after roughing without returning bar material into guide bush, preventing damages and improving precision. Pattern 1 ll Finishing Available for roughing and finishing with one Goose-neck Holder. Pattern 2 I Roughing-Finishing r4 y For better chip control Optimum cutting edge position and large space for efficient chip evacuation. With conventional threading toolholders, chip biting into guide bush can cause damages on threads. Advantages of Toolholder installation When using a Goose-neck holder 1) Maximum number of toolholders can be attached. 2) No interference with next tool post. V. o £ E S E5
