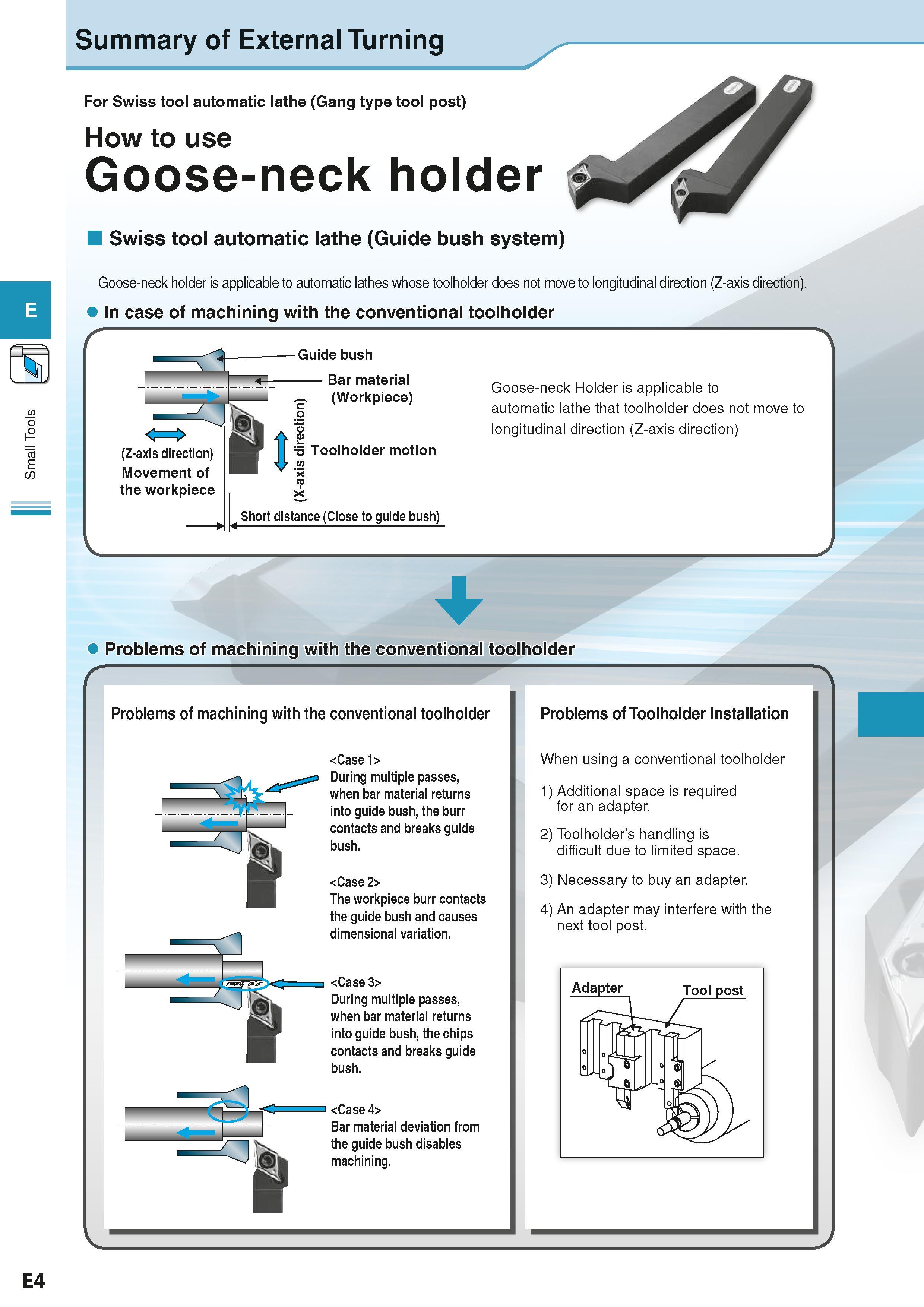

Small Tools Summary of External Turning For Swiss tool automatic lathe (Gang type tool post) How to use Goose-neck holder Swiss tool automatic lathe (Guide bush system) Goose-neck holder is applicable to automatic lathes whose toolholder does not move to longitudinal direction (Z-axis direction). In case of machining with the conventional toolholder Guide bush (Z-axis direction) Movement of the workpiece - Bar material (Workpiece) t5 Toolholder motion to 'x ra X Goose-neck Holder is applicable to automatic lathe that toolholder does not move to longitudinal direction (Z-axis direction) Short distance (Close to guide bush) Problems of machining with the conventional toolholder Problems of machining with the conventional toolholder During multiple passes, when bar material returns into guide bush, the burr contacts and breaks guide bush. The workpiece burr contacts the guide bush and causes dimensional variation. During multiple passes, when bar material returns into guide bush, the chips contacts and breaks guide bush. Bar material deviation from the guide bush disables machining. E4
