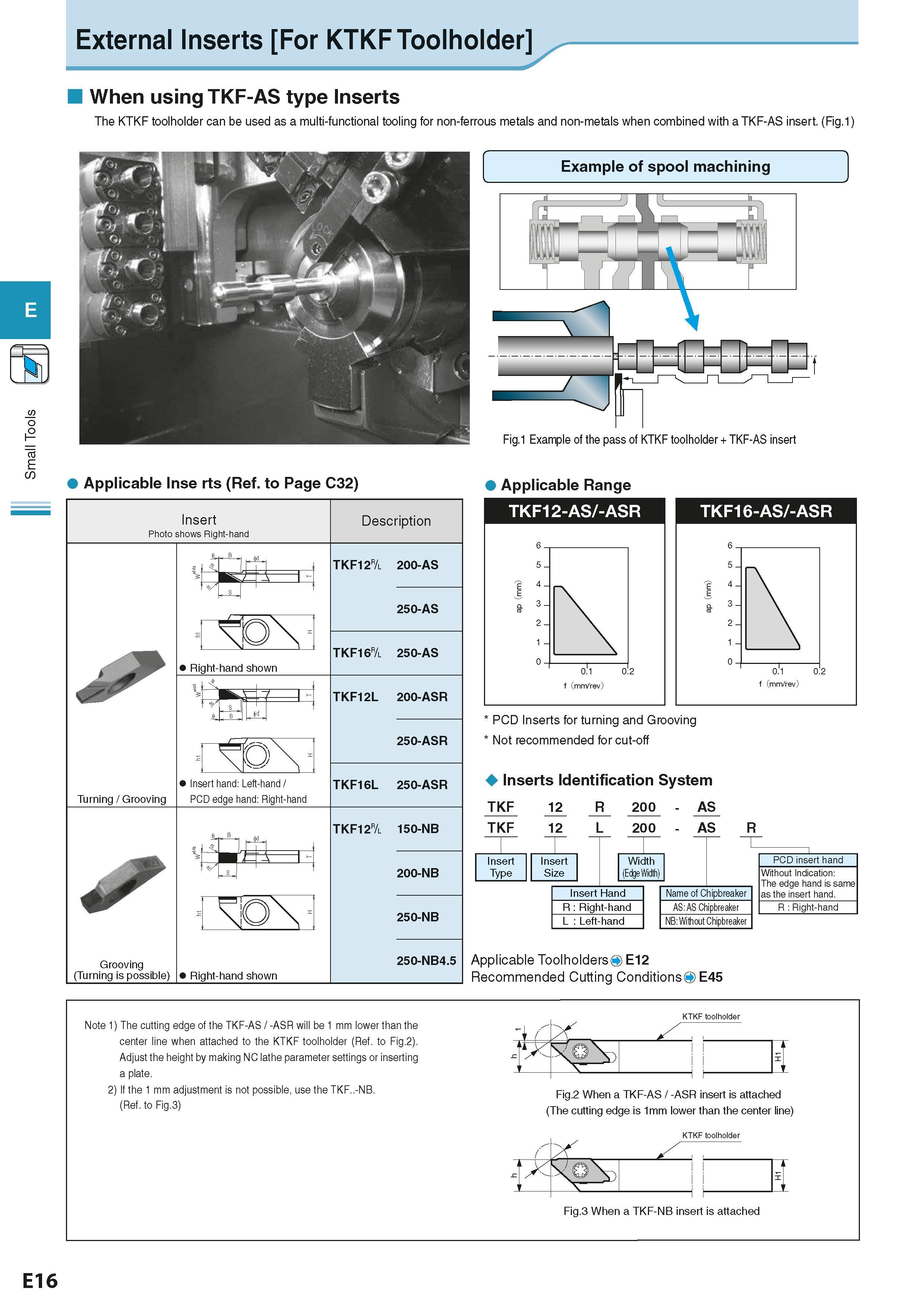

Small Tools External Inserts For KTKF Toolholder When using TKF-AS type Inserts The KTKF toolholder can be used as a multi-functional tooling for non-ferrous metals and non-metals when combined with a TKF-AS insert. (Fig.1) Example of spool machining Applicable Inse rts (Ref. to Page C32) Fig.1 Example of the pass of KTKF toolholder + TKF-AS insert Applicable Range Insert Photo shows Right-hand Turning / Grooving Grooving (Turning is possible) Right-hand shown 1 - d Insert hand: Left-hand / PCD edge hand: Right-hand Right-hand shown Description TKF12& 200-AS 250-AS TKF16& 250-AS TKF12L 200-ASR 250-ASR TKF16L 250-ASR TKF12& 150-NB 200-NB 250-NB 250-NB4.5 TKF12-AS/-ASR 6 5 4m a 3 -a 2 -1 - \ 0 - 0.1 0 2 f (mm/rev) TKF16-AS/-ASR 6 -r 5 4m a 3 -a 2 -1 - \ 0 - 0.1 0 f (mm/rev) 2 PCD Inserts for turning and Grooving Not recommended for cut-off Inserts Identification System TKF 12 R 200 - AS L TKF 12 200 AS Insert Type Insert Size Width (Edge Width) Insert Hand R Right-hand L Left-hand Name of Chipbreaker AS: AS Chipbreaker NB: Without Chipbreaker PCD insert hand Without Indication: The edge hand is same as the insert hand. R Right-hand Applicable ToolholdersO E12 Recommended Cutting ConditionsO E45 Note 1) The cutting edge of the TKF-AS / -ASR will be 1 mm lower than the center line when attached to the KTKF toolholder (Ref. to Fig.2). Adjust the height by making NC lathe parameter settings or inserting a plate. 2) If the 1 mm adjustment is not possible, use the TKF..-NB. (Ref. to Fig.3) KTKF toolholder Fig.2 When a TKF-AS / -ASR insert is attached (The cutting edge is 1mm lower than the center line) KTKF toolholder Q\) Fig.3 When a TKF-NB insert is attached R E16
