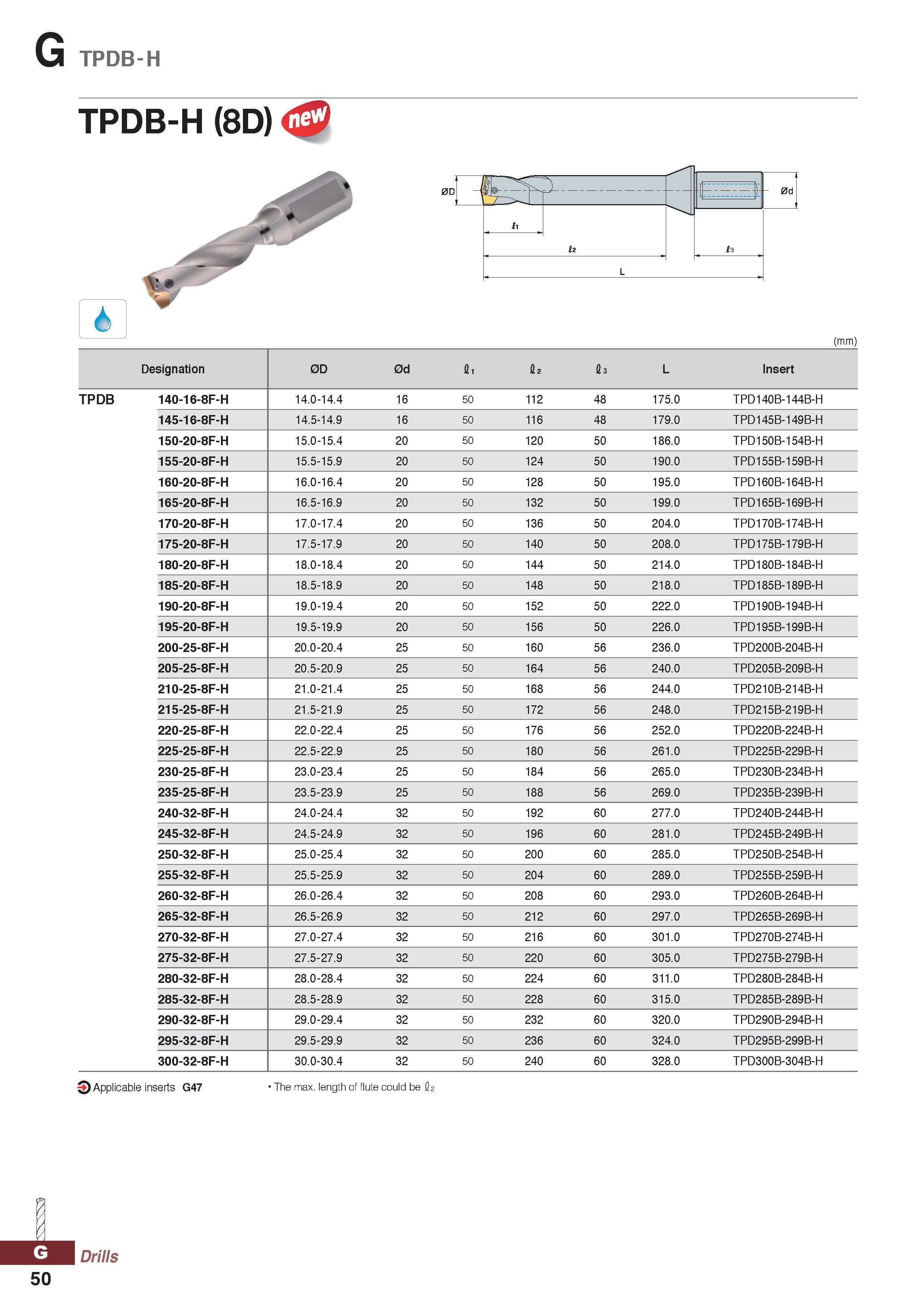

1050 Каталог KORLOY 2020 Инструмент и оснастка для станков по металлу Стр.G50

Каталог KORLOY 2020 Инструмент для станков по металлу Стр. G50 1050 Lab2u

G TPDB-H TPDB-H (8D) 6 (mm) Designation 0D 0d Si S2 S3 L Insert TPDB 140-16-8F-H 14.O-14.4 16 50 112 48 175.O TPD14OB-144B-H 145-16-8F-H 14.5-14.9 16 50 116 48 179.O TPD145B-149B-H 150-20-8F-H 15.O-15.4 20 50 12O 50 186.O TPD15OB-154B-H 155-20-8F-H 15.5-15.9 20 50 124 50 19O.O TPD155B-159B-H 160-20-8F-H 16.O-16.4 20 50 128 50 195.O TPD16OB-164B-H 165-20-8F-H 16.5-16.9 20 50 132 50 199.O TPD165B-169B-H 170-20-8F-H 17.O-17.4 20 50 136 50 2O4.O TPD17OB-174B-H 175-20-8F-H 17.5-17.9 20 50 14O 50 2O8.O TPD175B-179B-H 180-20-8F-H 18.O-18.4 20 50 144 50 214.O TPD18OB-184B-H 185-20-8F-H 18.5-18.9 20 50 148 50 218.O TPD185B-189B-H 190-20-8F-H 19.O-19.4 20 50 152 50 222.O TPD19OB-194B-H 195-20-8F-H 19.5-19.9 20 50 156 50 226.O TPD195B-199B-H 200-25-8F-H 2O.O-2O.4 25 50 16O 56 236.O TPD2OOB-2O4B-H 205-25-8F-H 2O.5-2O.9 25 50 164 56 24O.O TPD2O5B-2O9B-H 210-25-8F-H 21.O-21.4 25 50 168 56 244. O TPD21OB-214B-H 215-25-8F-H 21.5-21.9 25 50 172 56 248.O TPD215B-219B-H 220-25-8F-H 22.O-22.4 25 50 176 56 252.O TPD22OB-224B-H 225-25-8F-H 22.5-22.9 25 50 18O 56 261.O TPD225B-229B-H 230-25-8F-H 23.O-23.4 25 50 184 56 265.O TPD23OB-234B-H 235-25-8F-H 23.5-23.9 25 50 188 56 269.O TPD235B-239B-H 240-32-8F-H 24.O-24.4 32 50 192 60 277.O TPD24OB-244B-H 245-32-8F-H 24.5-24.9 32 50 196 60 281.O TPD245B-249B-H 250-32-8F-H 25.O-25.4 32 50 2OO 60 285.O TPD25OB-254B-H 255-32-8F-H 25.5-25.9 32 50 2O4 60 289.O TPD255B-259B-H 260-32-8F-H 26.O-26.4 32 50 2O8 60 293.O TPD26OB-264B-H 265-32-8F-H 26.5-26.9 32 50 212 60 297.O TPD265B-269B-H 270-32-8F-H 27.O-27.4 32 50 216 60 3O1.O TPD27OB-274B-H 275-32-8F-H 27.5-27.9 32 50 22O 60 3O5.O TPD275B-279B-H 280-32-8F-H 28.O-28.4 32 50 224 60 311.O TPD28OB-284B-H 285-32-8F-H 28.5-28.9 32 50 228 60 315.O TPD285B-289B-H 290-32-8F-H 29.O-29.4 32 50 232 60 32O.O TPD29OB-294B-H 295-32-8F-H 29.5-29.9 32 50 236 60 324.O TPD295B-299B-H 300-32-8F-H 3O.O-3O.4 32 50 24O 60 328.O TPD3OOB-3O4B-H 3 Applicable inserts G47 The max. length of flute could be 02 J. Drills 50
