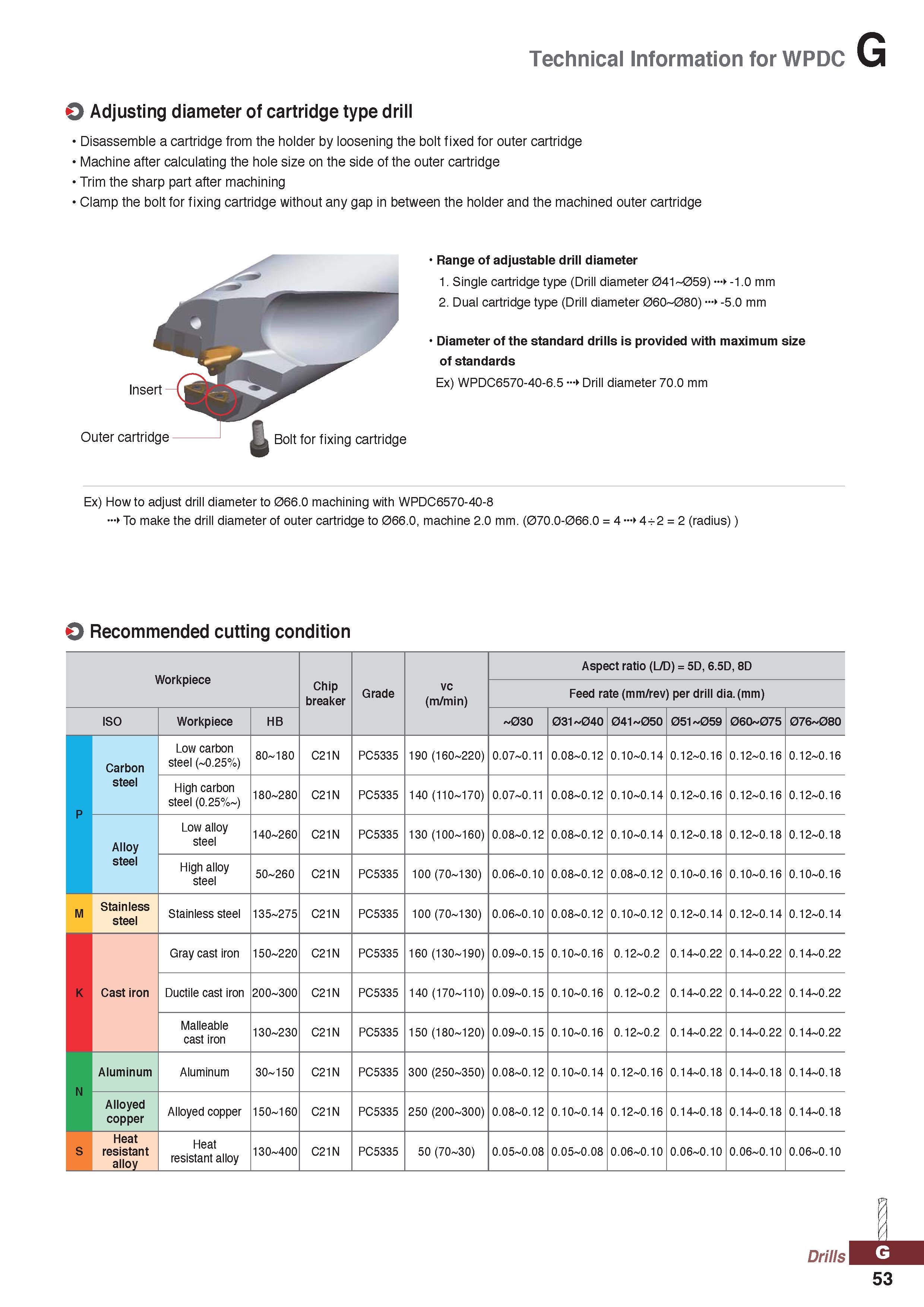

Technical Information for WPDC O Adjusting diameter of cartridge type drill Disassemble a cartridge from the holder by loosening the bolt fixed for outer cartridge Machine after calculating the hole size on the side of the outer cartridge Trim the sharp part after machining Clamp the bolt for fixing cartridge without any gap in between the holder and the machined outer cartridge Range of adjustable drill diameter 1. Single cartridge type (Drill diameter 041-059) -1.0 mm 2. Dual cartridge type (Drill diameter 060-080) -5.0 mm Diameter of the standard drills is provided with maximum size of standards Ex) WPDC6570-40-6.5 Drill diameter 70.0 mm Ex) How to adjust drill diameter to 066.0 machining with WPDC6570-40-8 To make the drill diameter of outer cartridge to 066.0, machine 2.0 mm. (070.0-066.0 = 4 4 2 = 2 (radius) ) O Recommended cutting condition Aspect ratio (L/D) = 5D, 6.5D, 8D Chip breaker Grade vc (m/min) Feed rate (mm/rev) per drill dia. (mm) ISO Workpiece hb 030 031 040 041 050 051 059 060 075 076 080 Carbon Low carbon steel (-0.25%) 80-180 C21N PC5335 190 (160-220) 0.07-0.11 0.08-0.12 0.10-0.14 0.12-0.16 0.12-0.16 0.12-0.16 P steel High carbon steel (0.25%-) 180-280 C21N PC5335 140 (110-170) 0.07-0.11 0.08-0.12 0.10-0.14 0.12-0.16 0.12-0.16 0.12-0.16 Alloy Low alloy steel 140-260 C21N PC5335 130 (100-160) 0.08-0.12 0.08-0.12 0.10-0.14 0.12-0.18 0.12-0.18 0.12-0.18 steel High alloy steel 50-260 C21N PC5335 100 (70-130) 0.06-0.10 0.08-0.12 0.08-0.12 0.10-0.16 0.10-0.16 0.10-0.16 M Stainless steel Stainless steel 135-275 C21N PC5335 100 (70-130) 0.06-0.10 0.08-0.12 0.10-0.12 0.12-0.14 0.12-0.14 0.12-0.14 Gray cast iron 150-220 C21N PC5335 160 (130-190) 0.09-0.15 0.10-0.16 0.12-0.2 0.14-0.22 0.14-0.22 0.14-0.22 K Cast iron Ductile cast iron 200-300 C21N PC5335 140 (170-110) 0.09-0.15 0.10-0.16 0.12-0.2 0.14-0.22 0.14-0.22 0.14-0.22 Malleable cast iron 130-230 C21N PC5335 150 (180-120) 0.09-0.15 0.10-0.16 0.12-0.2 0.14-0.22 0.14-0.22 0.14-0.22 N Aluminum Aluminum 30-150 C21N PC5335 300 (250-350) 0.08-0.12 0.10-0.14 0.12-0.16 0.14-0.18 0.14-0.18 0.14-0.18 Alloyed copper Alloyed copper 150-160 C21N PC5335 250 (200-300) 0.08-0.12 0.10-0.14 0.12-0.16 0.14-0.18 0.14-0.18 0.14-0.18 S Heat resistant alloy Heat resistant alloy 130-400 C21N PC5335 50 (70-30) 0.05-0.08 0.05-0.08 0.06-0.10 0.06-0.10 0.06-0.10 0.06-0.10 J- Drill 53
