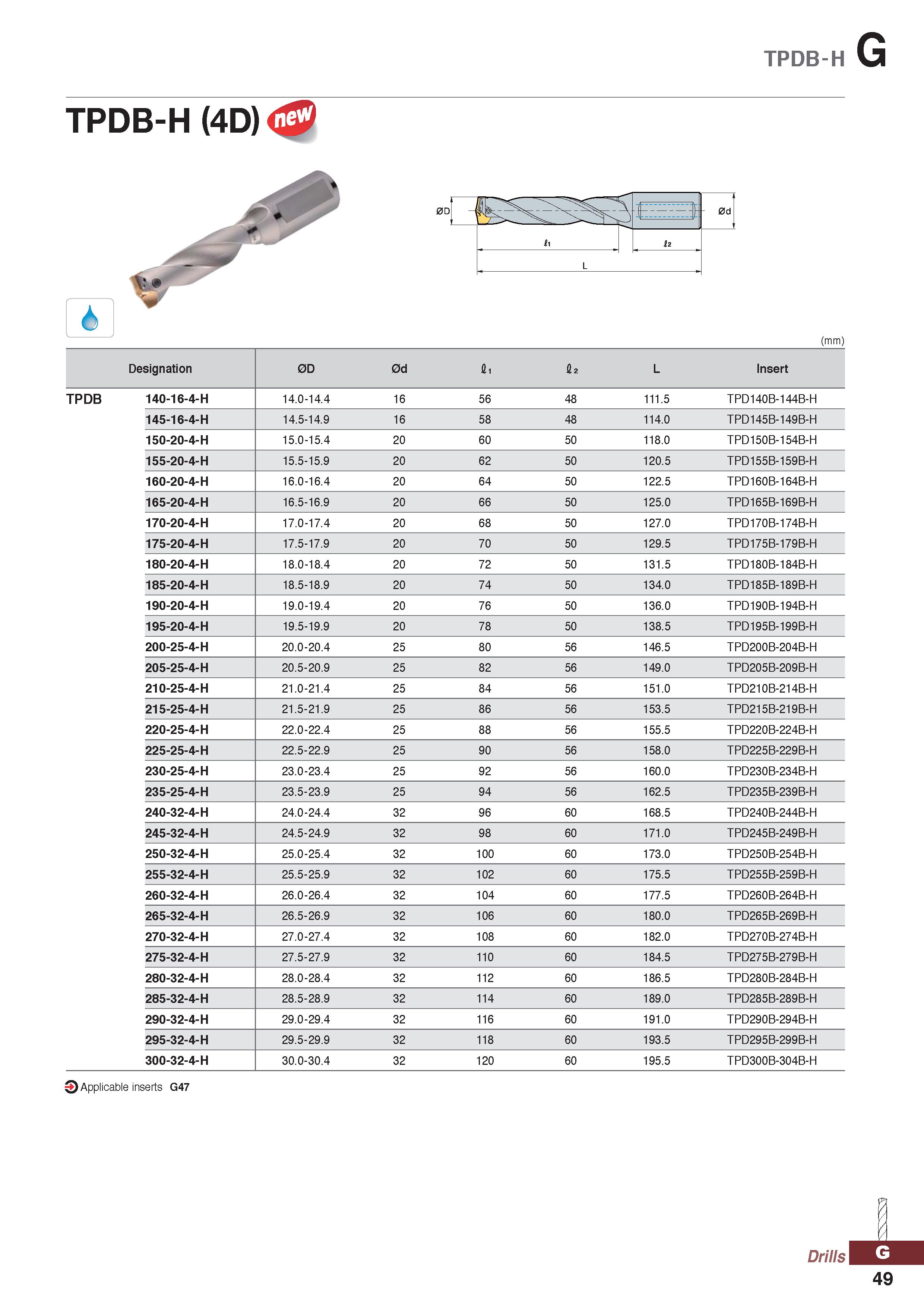

TPDB-H G TPDB-H (4D) W H + -1 , - 0d £1 12 L (mm) Designation 0D 0d li lz L Insert TPDB 140-16-4-H 14.0-14.4 16 56 48 111.5 TPD140B-144B-H 145-16-4-H 14.5-14.9 16 58 48 114.0 TPD145B-149B-H 150-20-4-H 15.0-15.4 20 60 50 118.0 TPD150B-154B-H 155-20-4-H 15.5-15.9 20 62 50 120.5 TPD155B-159B-H 160-20-4-H 16.0-16.4 20 64 50 122.5 TPD160B-164B-H 165-20-4-H 16.5-16.9 20 66 50 125.0 TPD165B-169B-H 170-20-4-H 17.0-17.4 20 68 50 127.0 TPD170B-174B-H 175-20-4-H 17.5-17.9 20 70 50 129.5 TPD175B-179B-H 180-20-4-H 18.0-18.4 20 72 50 131.5 TPD180B-184B-H 185-20-4-H 18.5-18.9 20 74 50 134.0 TPD185B-189B-H 190-20-4-H 19.0-19.4 20 76 50 136.0 TPD190B-194B-H 195-20-4-H 19.5-19.9 20 78 50 138.5 TPD195B-199B-H 200-25-4-H 20.0-20.4 25 80 56 146.5 TPD200B-204B-H 205-25-4-H 20.5-20.9 25 82 56 149.0 TPD205B-209B-H 210-25-4-H 21.0-21.4 25 84 56 151.0 TPD210B-214B-H 215-25-4-H 21.5-21.9 25 86 56 153.5 TPD215B-219B-H 220-25-4-H 22.0-22.4 25 88 56 155.5 TPD220B-224B-H 225-25-4-H 22.5-22.9 25 90 56 158.0 TPD225B-229B-H 230-25-4-H 23.0-23.4 25 92 56 160.0 TPD230B-234B-H 235-25-4-H 23.5-23.9 25 94 56 162.5 TPD235B-239B-H 240-32-4-H 24.0-24.4 32 96 60 168.5 TPD240B-244B-H 245-32-4-H 24.5-24.9 32 98 60 171.0 TPD245B-249B-H 250-32-4-H 25.0-25.4 32 100 60 173.0 TPD250B-254B-H 255-32-4-H 25.5-25.9 32 102 60 175.5 TPD255B-259B-H 260-32-4-H 26.0-26.4 32 104 60 177.5 TPD260B-264B-H 265-32-4-H 26.5-26.9 32 106 60 180.0 TPD265B-269B-H 270-32-4-H 27.0-27.4 32 108 60 182.0 TPD270B-274B-H 275-32-4-H 27.5-27.9 32 110 60 184.5 TPD275B-279B-H 280-32-4-H 28.0-28.4 32 112 60 186.5 TPD280B-284B-H 285-32-4-H 28.5-28.9 32 114 60 189.0 TPD285B-289B-H 290-32-4-H 29.0-29.4 32 116 60 191.0 TPD290B-294B-H 295-32-4-H 29.5-29.9 32 118 60 193.5 TPD295B-299B-H 300-32-4-H 30.0-30.4 32 120 60 195.5 TPD300B-304B-H O Applicable inserts G47 Drills Jrn 49
