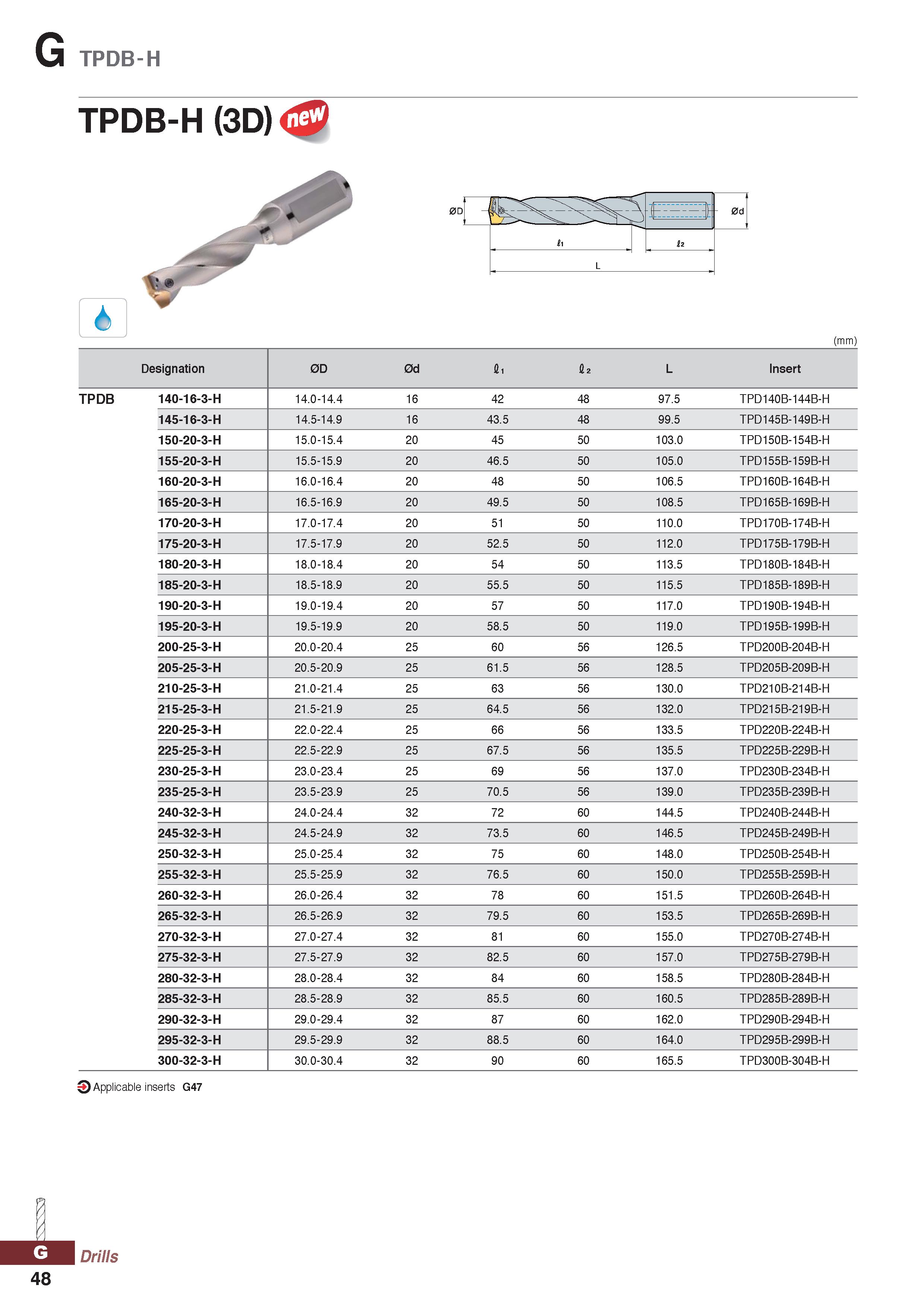

G TPDB-H TPDB-H (3D) W H + -1 , - 0d £1 12 L (mm) Designation 0D 0d Si S2 L Insert TPDB 140-16-3-H 14.0-14.4 16 42 48 97.5 TPD140B-144B-H 145-16-3-H 14.5-14.9 16 43.5 48 99.5 TPD145B-149B-H 150-20-3-H 15.0-15.4 20 45 50 103.0 TPD150B-154B-H 155-20-3-H 15.5-15.9 20 46.5 50 105.0 TPD155B-159B-H 160-20-3-H 16.0-16.4 20 48 50 106.5 TPD160B-164B-H 165-20-3-H 16.5-16.9 20 49.5 50 108.5 TPD165B-169B-H 170-20-3-H 17.0-17.4 20 51 50 110.0 TPD170B-174B-H 175-20-3-H 17.5-17.9 20 52.5 50 112.0 TPD175B-179B-H 180-20-3-H 18.0-18.4 20 54 50 113.5 TPDi80B-i84B-H 185-20-3-H 18.5-18.9 20 55.5 50 115.5 TPDi85B-i89B-H 190-20-3-H 19.0-19.4 20 57 50 117.0 TPDi90B-i94B-H 195-20-3-H 19.5-19.9 20 58.5 50 119.0 TPDi95B-i99B-H 200-25-3-H 20.0-20.4 25 60 56 126.5 TPD200B-204B-H 205-25-3-H 20.5-20.9 25 61.5 56 128.5 TPD205B-209B-H 210-25-3-H 21.0-21.4 25 63 56 130.0 TPD2i0B-2i4B-H 215-25-3-H 21.5-21.9 25 64.5 56 132.0 TPD215B-219B-H 220-25-3-H 22.0-22.4 25 66 56 133.5 TPD220B-224B-H 225-25-3-H 22.5-22.9 25 67.5 56 135.5 TPD225B-229B-H 230-25-3-H 23.0-23.4 25 69 56 137.0 TPD230B-234B-H 235-25-3-H 23.5-23.9 25 70.5 56 139.0 TPD235B-239B-H 240-32-3-H 24.0-24.4 32 72 60 144.5 TPD240B-244B-H 245-32-3-H 24.5-24.9 32 73.5 60 146.5 TPD245B-249B-H 250-32-3-H 25.0-25.4 32 75 60 148.0 TPD250B-254B-H 255-32-3-H 25.5-25.9 32 76.5 60 150.0 TPD255B-259B-H 260-32-3-H 26.0-26.4 32 78 60 151.5 TPD260B-264B-H 265-32-3-H 26.5-26.9 32 79.5 60 153.5 TPD265B-269B-H 270-32-3-H 27.0-27.4 32 81 60 155.0 TPD270B-274B-H 275-32-3-H 27.5-27.9 32 82.5 60 157.0 TPD275B-279B-H 280-32-3-H 28.0-28.4 32 84 60 158.5 TPD280B-284B-H 285-32-3-H 28.5-28.9 32 85.5 60 160.5 TPD285B-289B-H 290-32-3-H 29.0-29.4 32 87 60 162.0 TPD290B-294B-H 295-32-3-H 29.5-29.9 32 88.5 60 164.0 TPD295B-299B-H 3QQ-32-3-H 30.0-30.4 32 90 60 165.5 TPD300B-304B-H O Applicable inserts G47 J. Drills 48
