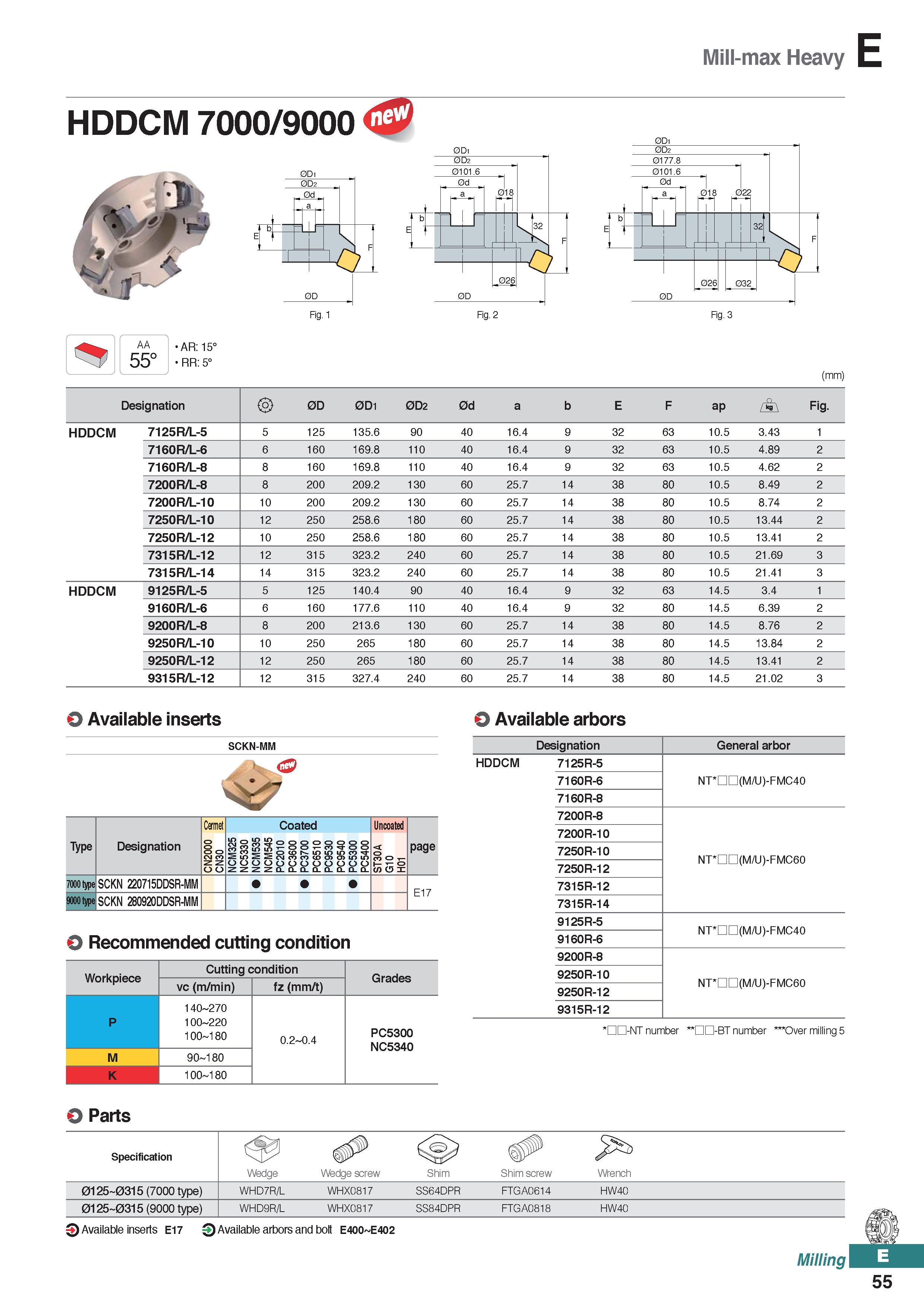

Mill-max Heavy HDDCM 7000/9000 AR: 15° RR: 5° (mm) Designation 2> 0D 0D1 0D2 0d a b E F ap / B \ Fig. HDDCM 7125R/L-5 5 125 135.6 90 40 16.4 9 32 63 10.5 3.43 1 7160R/L-6 6 160 169.8 110 40 16.4 9 32 63 10.5 4.89 2 7160R/L-8 8 160 169.8 110 40 16.4 9 32 63 10.5 4.62 2 7200R/L-8 8 200 209.2 130 60 25.7 14 38 80 10.5 8.49 2 7200R/L-10 10 200 209.2 130 60 25.7 14 38 80 10.5 8.74 2 7250R/L-10 12 250 258.6 180 60 25.7 14 38 80 10.5 13.44 2 7250R/L-12 10 250 258.6 180 60 25.7 14 38 80 10.5 13.41 2 7315R/L-12 12 315 323.2 240 60 25.7 14 38 80 10.5 21.69 3 7315R/L-14 14 315 323.2 240 60 25.7 14 38 80 10.5 21.41 3 HDDCM 9125R/L-5 5 125 140.4 90 40 16.4 9 32 63 14.5 3.4 1 9160R/L-6 6 160 177.6 110 40 16.4 9 32 80 14.5 6.39 2 9200R/L-8 8 200 213.6 130 60 25.7 14 38 80 14.5 8.76 2 9250R/L-10 10 250 265 180 60 25.7 14 38 80 14.5 13.84 2 9250R/L-12 12 250 265 180 60 25.7 14 38 80 14.5 13.41 2 9315R/L-12 12 315 327.4 240 60 25.7 14 38 80 14.5 21.02 3 O Available inserts SCKN-MM Cermet Coated Uncoated Type Designation CN2000 CN30 JjQoJSSfi 2u)22c nn(DO)(m ZZZZQ.Q.HHQ.Q.aQ. ST30A G10 H01 page 7000 type SCKN 220715DDSR-MM E17 9000 type SCKN 280920DDSR-MM Recommended cutting condition Workpiece Cutting condition Grades vc (m/min) fz (mm/t) P 140 270 100 220 100-180 0.2 0.4 PC5300 NC5340 M 90-180 K 100-180 O Available arbors Designation General arbor HDDCM 7125R-5 NT’DD(M/U)-FMC40 7160R-6 7160R-8 7200R-8 NT’DD(M/U)-FMC60 7200R-10 7250R-10 7250R-12 7315R-12 7315R-14 9125R-5 NT’DD(M/U)-FMC40 9160R-6 9200R-8 NT’DD(M/U)-FMC60 9250R-10 9250R-12 9315R-12 ’ -NT number ’’ -BT number ’’’Over milling 5 O Parts Specification Wedge Wedge screw Shim Shim screw Wrench 0125 0315 (7000 type) WHD7R/L WHX0817 SS64DPR FTGA0614 HW40 0125 0315 (9000 type) WHD9R/L WHX0817 SS84DPR FTGA0818 HW40 Q Available inserts E17 Q Available arbors and bolt E400 E402 Milling 55
