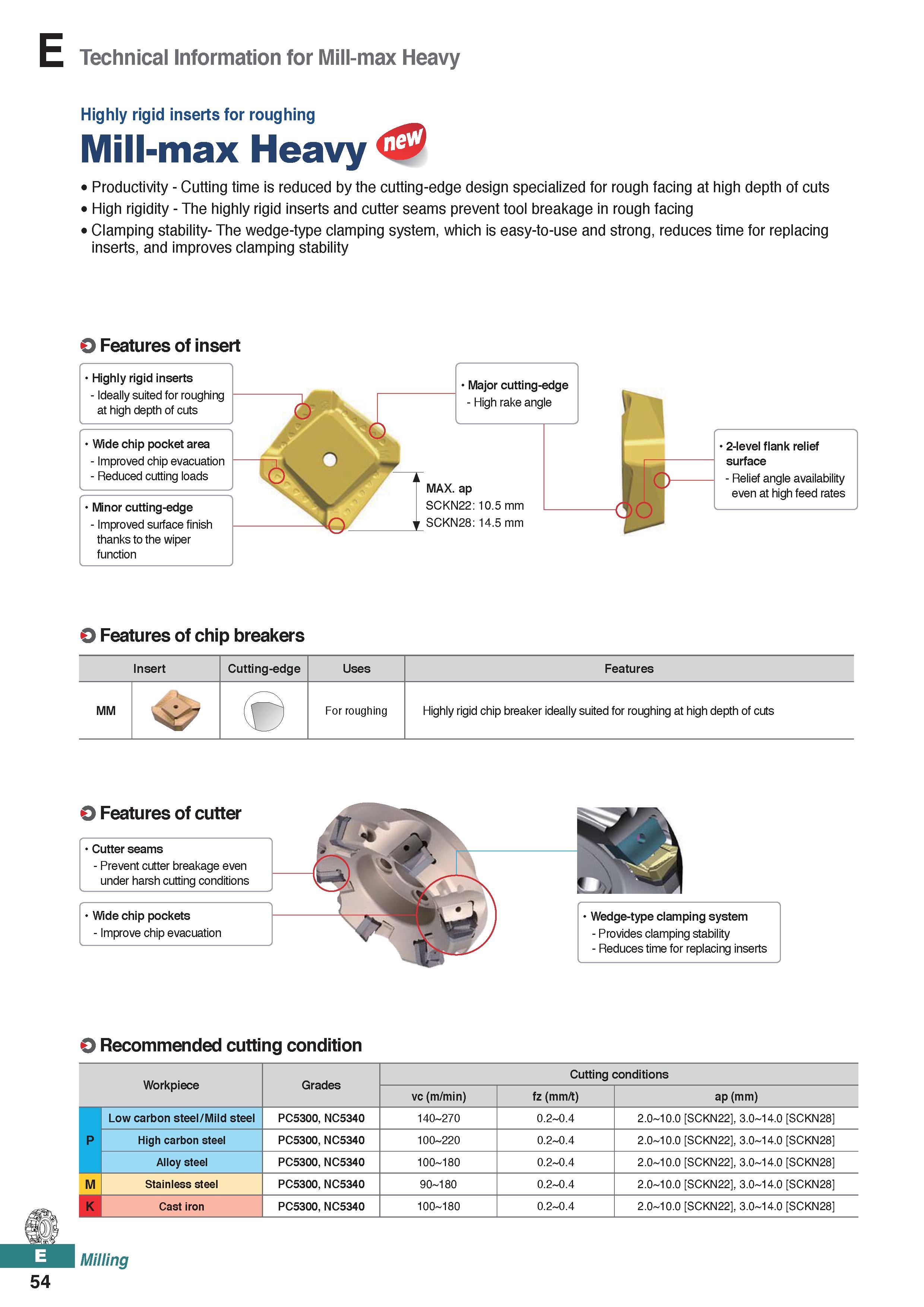

Technical Information for Mill-max Heavy Highly rigid inserts for roughing Mill-max Heavy dP Productivity - Cutting time is reduced by the cutting-edge design specialized for rough facing at high depth of cuts High rigidity - The highly rigid inserts and cutter seams prevent tool breakage in rough facing Clamping stability- The wedge-type clamping system, which is easy-to-use and strong, reduces time for replacing inserts, and improves clamping stability O Features of insert Highly rigid inserts - Ideally suited for roughing at high depth of cuts Wide chip pocket area - Improved chip evacuation - Reduced cutting loads Minor cutting-edge - Improved surface finish thanks to the wiper function Major cutting-edge - High rake angle MAX. ap SCKN22: 10.5 mm SCKN28: 14.5 mm 2-level flank relief surface - Relief angle availability even at high feed rates O Features of chip breakers Insert Cutting-edge Uses Features MM 0 For roughing Highly rigid chip breaker ideally suited for roughing at high depth of cuts 0 Features of cutter Cutter seams - Prevent cutter breakage even under harsh cutting conditions Wide chip pockets - Improve chip evacuation Wedge-type clamping system - Provides clamping stability - Reduces time for replacing inserts O Recommended cutting condition Workpiece Grades Cutting conditions vc (m/min) fz (mm/t) ap (mm) Low carbon steel/Mild steel PC5300, NC5340 140 270 0.2 0.4 2.0-10.0 SCKN22 , 3.0-14.0 SCKN28 P High carbon steel PC5300, NC5340 100 220 0.2 0.4 2.0-10.0 SCKN22 , 3.0-14.0 SCKN28 Alloy steel PC5300, NC5340 100-180 0.2 0.4 2.0-10.0 SCKN22 , 3.0-14.0 SCKN28 M Stainless steel PC5300, NC5340 90 180 0.2 0.4 2.0-10.0 SCKN22 , 3.0-14.0 SCKN28 K Cast iron PC5300, NC5340 100-180 0.2 0.4 2.0-10.0 SCKN22 , 3.0-14.0 SCKN28 Milling 54
