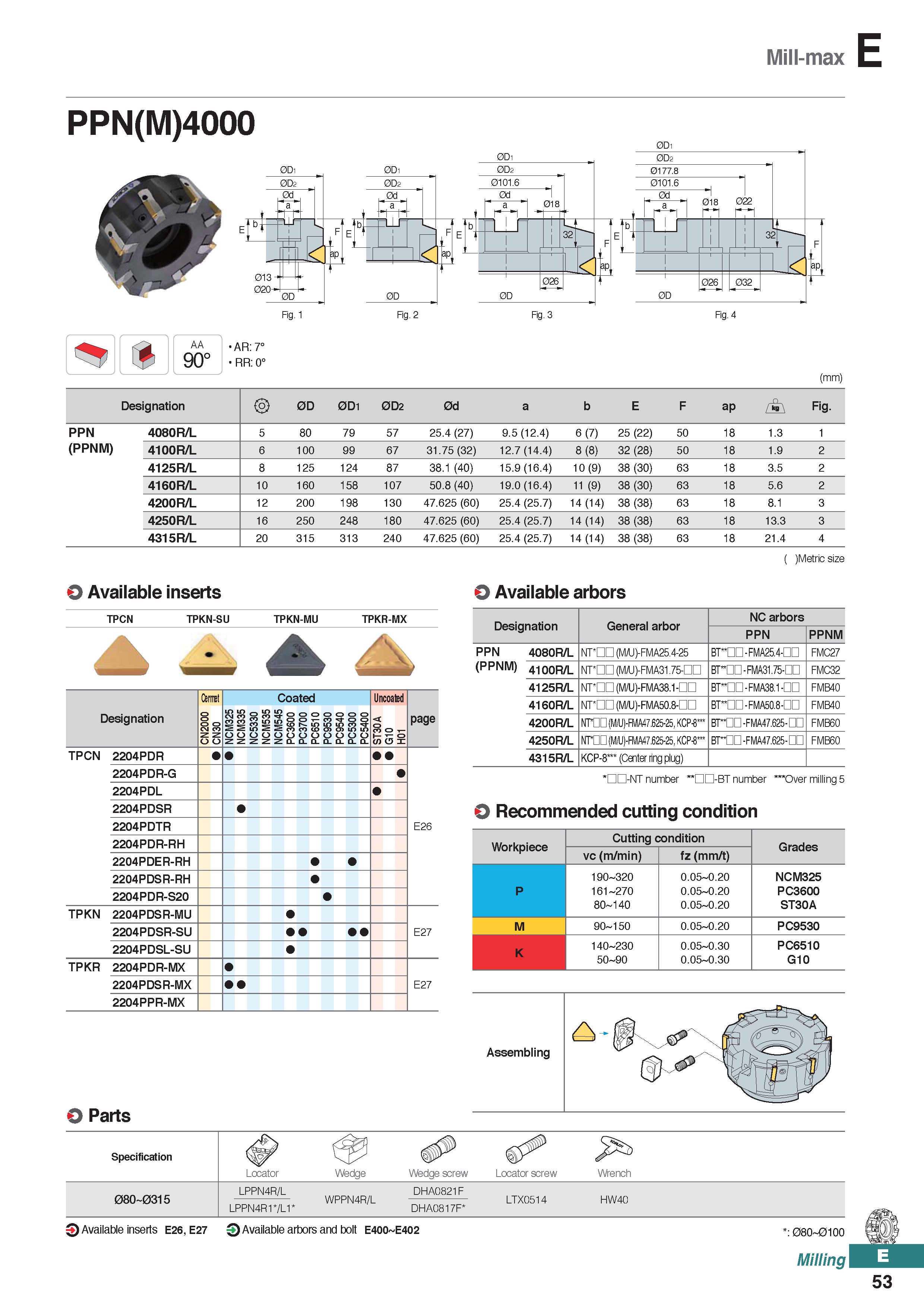

Mill-max PPN(M)4000 0D1 AA 90° AR: 7° RR: 0° (mm) Designation 0D 0D1 0D2 0d a b E F ap Fig. PPN 4080R/L 5 80 79 57 25.4 (27) 9.5 (12.4) 6 (7) 25 (22) 50 18 1.3 1 (PPNM) 4100R/L 6 100 99 67 31.75 (32) 12.7 (14.4) 8(8) 32 (28) 50 18 1.9 2 4125R/L 8 125 124 87 38.1 (40) 15.9 (16.4) 10 (9) 38 (30) 63 18 3.5 2 4160R/L 10 160 158 107 50.8 (40) 19.0 (16.4) 11 (9) 38 (30) 63 18 5.6 2 4200R/L 12 200 198 130 47.625 (60) 25.4 (25.7) 14 (14) 38 (38) 63 18 8.1 3 4250R/L 16 250 248 180 47.625 (60) 25.4 (25.7) 14 (14) 38 (38) 63 18 13.3 3 4315R/L 20 315 313 240 47.625 (60) 25.4 (25.7) 14 (14) 38 (38) 63 18 21.4 4 ( )Metric size O Available inserts O Available arbors TPCN TPKN-SU TPKN-MU TPKR-MX Designation tend Coated Uncoated page CN2000 CN30 NCM325 NCM335 NC5330 NCM535 NCM545 PC3600 000000 O 1 CO 755534 n (c o> o in m CCCCCC Q Q Q Q Q Q ST30A G10 H01 TPCN 2204PDR 2204PDR-G 2204PDL 2204PDSR 2204PDTR E26 2204PDR-RH 2204PDER-RH 2204PDSR-RH 2204PDR-S20 TPKN 2204PDSR-MU 2204PDSR-SU E27 2204PDSL-SU TPKR 2204PDR-MX 2204PDSR-MX E27 2204PPR-MX Designation General arbor NC arbors PPN PPNM PPN 4080R/L NT’DD (M/U)-FMA25.4-25 BTUD -FMA25.4-DD FMC27 (PPNM) 4100R/L NT’DD (M/U)-FMA31.75-DD BT"Dn -FMA31.75-HD FMC32 4125R/L NT’DD (M/U)-FMA38.1-DD BTUD-FMA38.1-DD FMB40 4160R/L NT’DD (M/U)-FMA50.8-DD BTUD -FMA50.8-DD FMB40 4200R/L NTHD (M/U)-FMA47.625-25, KCP-8 BT -FMA47.625- FMB60 4250R/L NTHD (M/U)-FMA47.625-25, KCP-8 BT -FMA47.625- FMB60 4315R/L KCP-8 (Center ring plug) ’ -NT number ’’ -BT number "“Over milling 5 O Recommended cutting condition Workpiece Cutting condition Grades vc (m/min) fz (mm/t) P 190 320 161 270 80-140 0.05 0.20 0.05 0.20 0.05 0.20 NCM325 PC3600 ST30A M 90 150 0.05 0.20 PC9530 K 140 230 50 90 0.05 0.30 0.05 0.30 PC6510 G10 O Parts Milling 53
