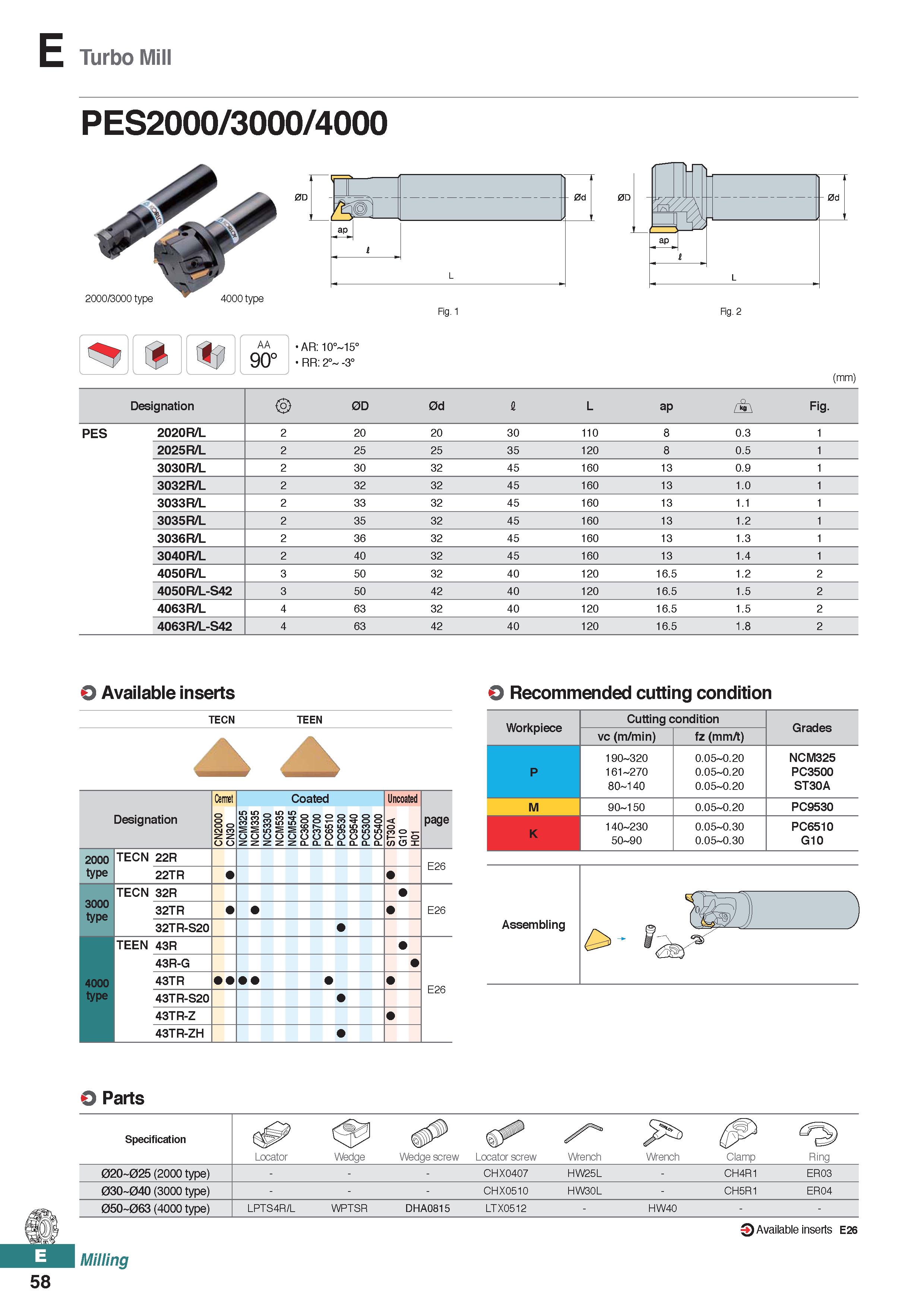

E Turbo Mill PES2000/3000/4000 2000/3000 type 4000 type 0D 0d Fig. 1 Fig. 2 AA 90° AR: 10° 15° RR: 2° -3° (mm) Designation 2> 0D 0d I L ap /i\ Fig. PES 2020R/L 2 20 20 30 110 8 0.3 1 2025R/L 2 25 25 35 120 8 0.5 1 3030R/L 2 30 32 45 160 13 0.9 1 3032R/L 2 32 32 45 160 13 1.0 1 3033R/L 2 33 32 45 160 13 1.1 1 3035R/L 2 35 32 45 160 13 1.2 1 3036R/L 2 36 32 45 160 13 1.3 1 3040R/L 2 40 32 45 160 13 1.4 1 4050R/L 3 50 32 40 120 16.5 1.2 2 4050R/L-S42 3 50 42 40 120 16.5 1.5 2 4063R/L 4 63 32 40 120 16.5 1.5 2 4063R/L-S42 4 63 42 40 120 16.5 1.8 2 Available inserts TECN TEEN Cemiet Coated Uncoated Designation CN2000 CN30 NCM325 NCM335 NC5330 NCM535 NCM545 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 10 G page 2000 type TECN 22R E26 22TR 3000 type TECN 32R E26 32TR 32TR-S20 4000 type TEEN 43R E26 43R-G 43TR 43TR-S20 43TR-Z 43TR-ZH Recommended cutting condition Workpiece Cutting condition Grades vc (m/min) fz (mm/t) P 190 320 161 270 80-140 0.05 0.20 0.05 0.20 0.05 0.20 NCM325 PC3500 ST30A M 90 150 0.05 0.20 PC9530 K 140 230 50 90 0.05 0.30 0.05 0.30 PC6510 G10 Parts Specification Locator Wedge Wedge screw Locator screw Wrench Wrench Clamp Ring 02O 025 (2000 type) - CHX0407 HW25L - CH4R1 ER03 03O 04O (3000 type) - CHX0510 HW30L - CH5R1 ER04 05O 063 (4000 type) LPTS4R/L WPTSR DHA0815 LTX0512 - HW40 Milling 0 Available inserts E26 58
