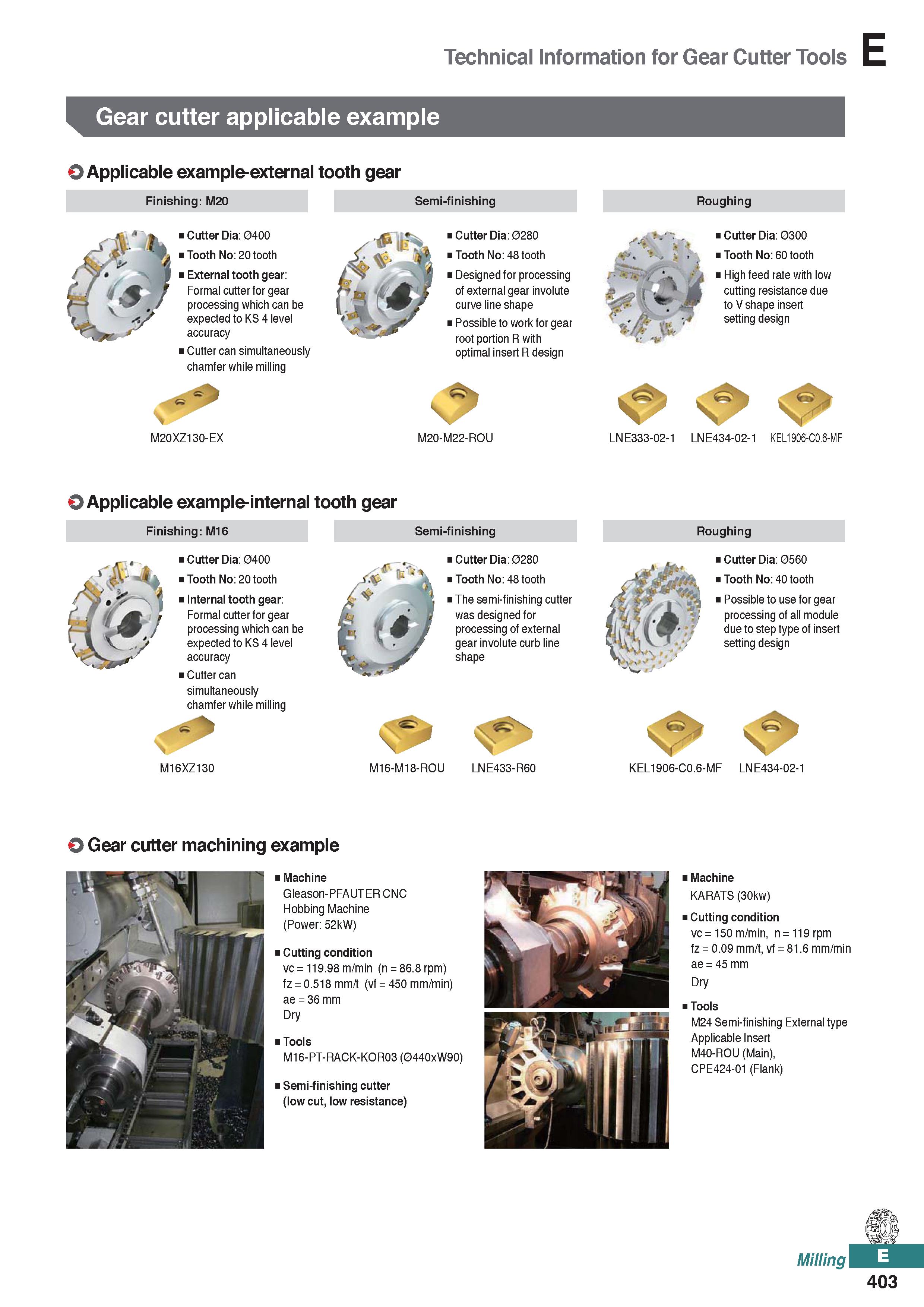

Technical Information for Gear Cutter Tools E Gear cutter applicable example O Applicable example-external tooth gear Finishing: M20 Semi-finishing Roughing Cutter Dia: 0400 Tooth No: 20 tooth External tooth gear: Formal cutter for gear processing which can be expected to KS 4 level accuracy Cutter can simultaneously chamfer while milling V M20XZ130-EX Cutter Dia: 0280 Tooth No: 48 tooth Designed for processing of external gear involute curve line shape Possible to work for gear root portion R with optimal insert R design M20-M22-R0U Cutter Dia: 0300 Tooth No: 60 tooth High feed rate with low cutting resistance due to V shape insert setting design LNE333-02-1 LNE434-02-1 KEL1906-C0.6-MF O Applicable example-internal tooth gear Finishing: M16 Semi-finishing Roughing Cutter Dia: 0400 Tooth No: 20 tooth I nternal tooth gear: Formal cutter for gear processing which can be expected to KS 4 level accuracy Cutter can simultaneously chamfer while milling M16XZ130 Cutter Dia: 0280 Tooth No: 48 tooth The semi-finishing cutter was designed for processing of external gear involute curb line shape M16-M18-R0U LNE433-R60 Cutter Dia: 0560 Tooth No: 40 tooth Possible to use for gear processing of all module due to step type of insert setting design KEL1906-C0.6-MF LNE434-02-1 O Gear cutter machining example Machine Gleason-PFAUTER CNC Hobbing Machine (Power: 52kW) Cutting condition vc = 119.98 m/min (n = 86.8 rpm) fz = 0.518 mm/t (vf = 450 mm/min) ae = 36 mm Dry Tools M16-PT-RACK-K0R03 (0440xW90) Semi-finishing cutter (low cut, low resistance) Machine KARATS (30kw) Cutting condition vc = 150 m/min, n = 119 rpm fz = 0.09 mm/t, vf = 81.6 mm/min ae = 45 mm Dry Tools M24 Semi-finishing External type Applicable Insert M40-R0U (Main), CPE424-01 (Flank) Milling 403
