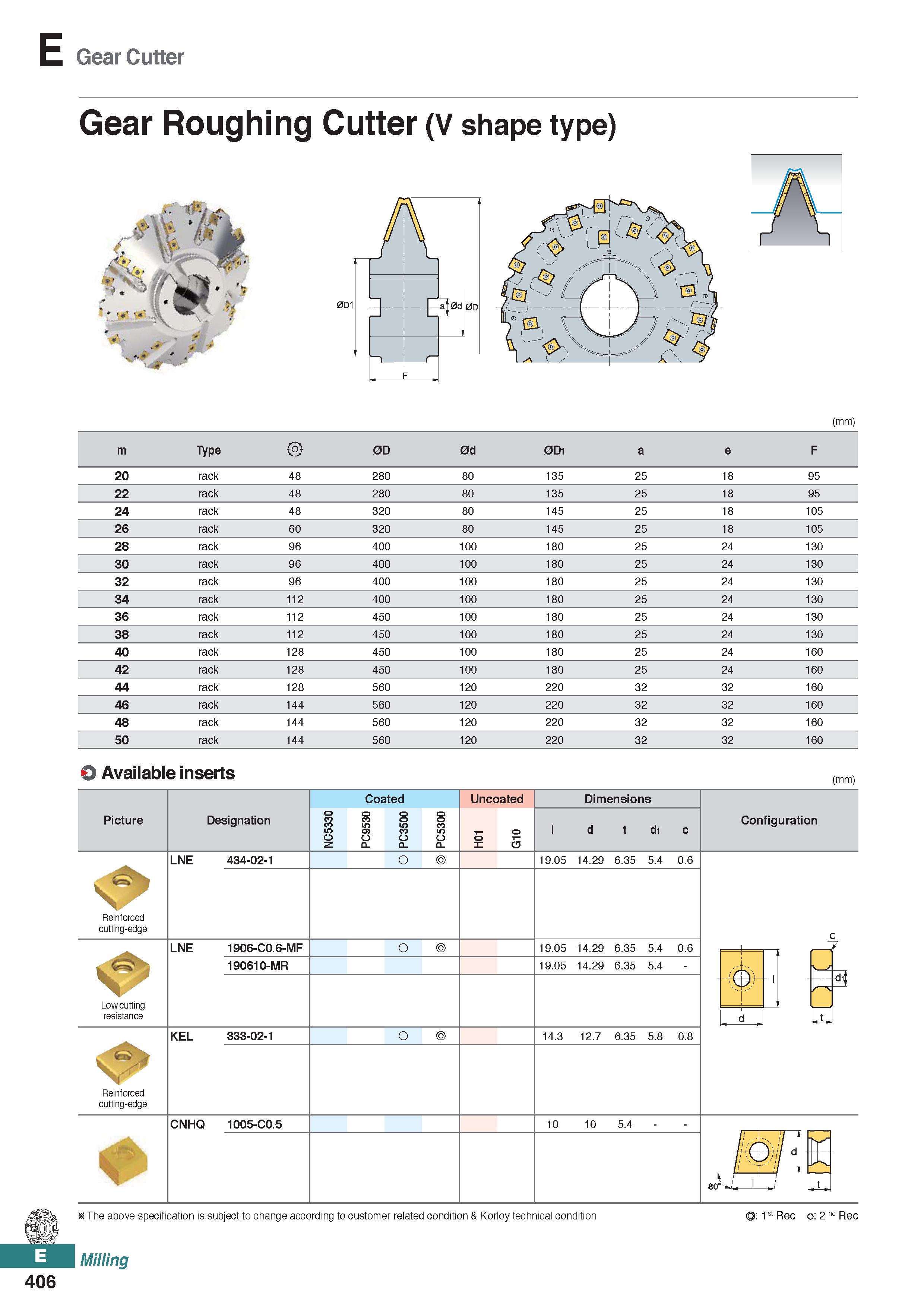

E Gear Cutter Gear Roughing Cutter (V shape type) (mm) m Type 2> 0D 0d 0D1 a e F 20 rack 48 280 80 135 25 18 95 22 rack 48 280 80 135 25 18 95 24 rack 48 320 80 145 25 18 105 26 rack 60 320 80 145 25 18 105 28 rack 96 400 100 180 25 24 130 30 rack 96 400 100 180 25 24 130 32 rack 96 400 100 180 25 24 130 34 rack 112 400 100 180 25 24 130 36 rack 112 450 100 180 25 24 130 38 rack 112 450 100 180 25 24 130 40 rack 128 450 100 180 25 24 160 42 rack 128 450 100 180 25 24 160 44 rack 128 560 120 220 32 32 160 46 rack 144 560 120 220 32 32 160 48 rack 144 560 120 220 32 32 160 50 rack 144 560 120 220 32 32 160 O Available inserts (mm) Coated Uncoated Dimensions Picture Designation NC5330 PC9530 PC3500 PC5300 H01 G10 I d t d1 c Configuration LNE 434-02-1 O 19.05 14.29 6.35 5.4 0.6 Reinforced cutting-edge c INE 1906-C06-MF O 19.05 14.29 6.35 5.4 0.6 7 190610-MR 19.05 14.29 6.35 5.4 - ty a 3 Low cutting resistance -1 ,t„ KEL 333-02-1 O 14.3 12.7 6.35 5.8 0.8 Reinforced cutting-edge CNHQ 1005-C0.5 10 10 5.4 / ¥ u / r 80 J i / t X The above specification is subject to change according to customer related condition & Korloy technical condition : 1st Rec o: 2 nd Rec Milling 406
