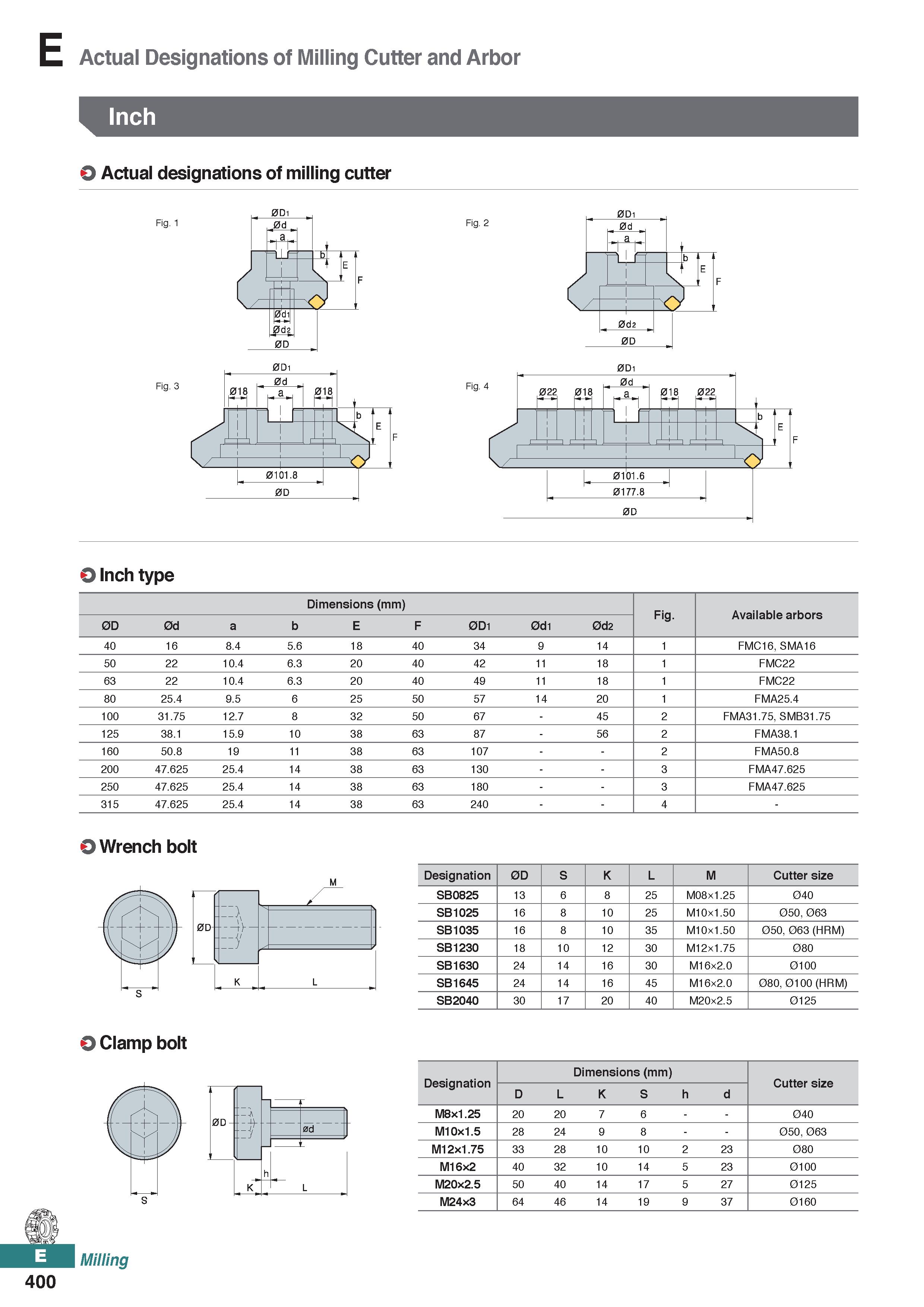

E Actual Designations of Milling Cutter and Arbor Actual designations of milling cutter Fig. 2 0Di O Inch type Dimensions (mm) Fig. Available arbors 0D 0d a b E F 0D1 0d1 0d2 40 16 8.4 5.6 18 40 34 9 14 1 FMC16, SMA16 50 22 10.4 6.3 20 40 42 11 18 1 FMC22 63 22 10.4 6.3 20 40 49 11 18 1 FMC22 80 25.4 9.5 6 25 50 57 14 20 1 FMA25.4 100 31.75 12.7 8 32 50 67 - 45 2 FMA31.75, SMB31.75 125 38.1 15.9 10 38 63 87 - 56 2 FMA38.1 160 50.8 19 11 38 63 107 2 FMA50.8 200 47.625 25.4 14 38 63 130 3 FMA47.625 250 47.625 25.4 14 38 63 180 3 FMA47.625 315 47.625 25.4 14 38 63 240 4 - Wrench bolt Designation 0D S K L M Cutter size SB0825 13 6 8 25 M08x1.25 040 SB1025 16 8 10 25 M10x1.50 050, 063 SB1035 16 8 10 35 M10x1.50 050, 063 (HRM) SB1230 18 10 12 30 M12x1.75 080 SB1630 24 14 16 30 M16x2.0 0100 SB1645 24 14 16 45 M16x2.0 080, 0100 (HRM) SB2040 30 17 20 40 M20x2.5 0125 400 Clamp bolt Milling 0 D Designation Dimensions (mm) Cutter size D L K S h d M8x1.25 20 20 7 6 040 0d M10x1.5 28 24 9 8 050, 063 M12x1.75 33 28 10 10 2 23 080 M16x2 40 32 10 14 5 23 0100 L M20x2.5 50 40 14 17 5 27 0125 M24x3 64 46 14 19 9 37 0160
