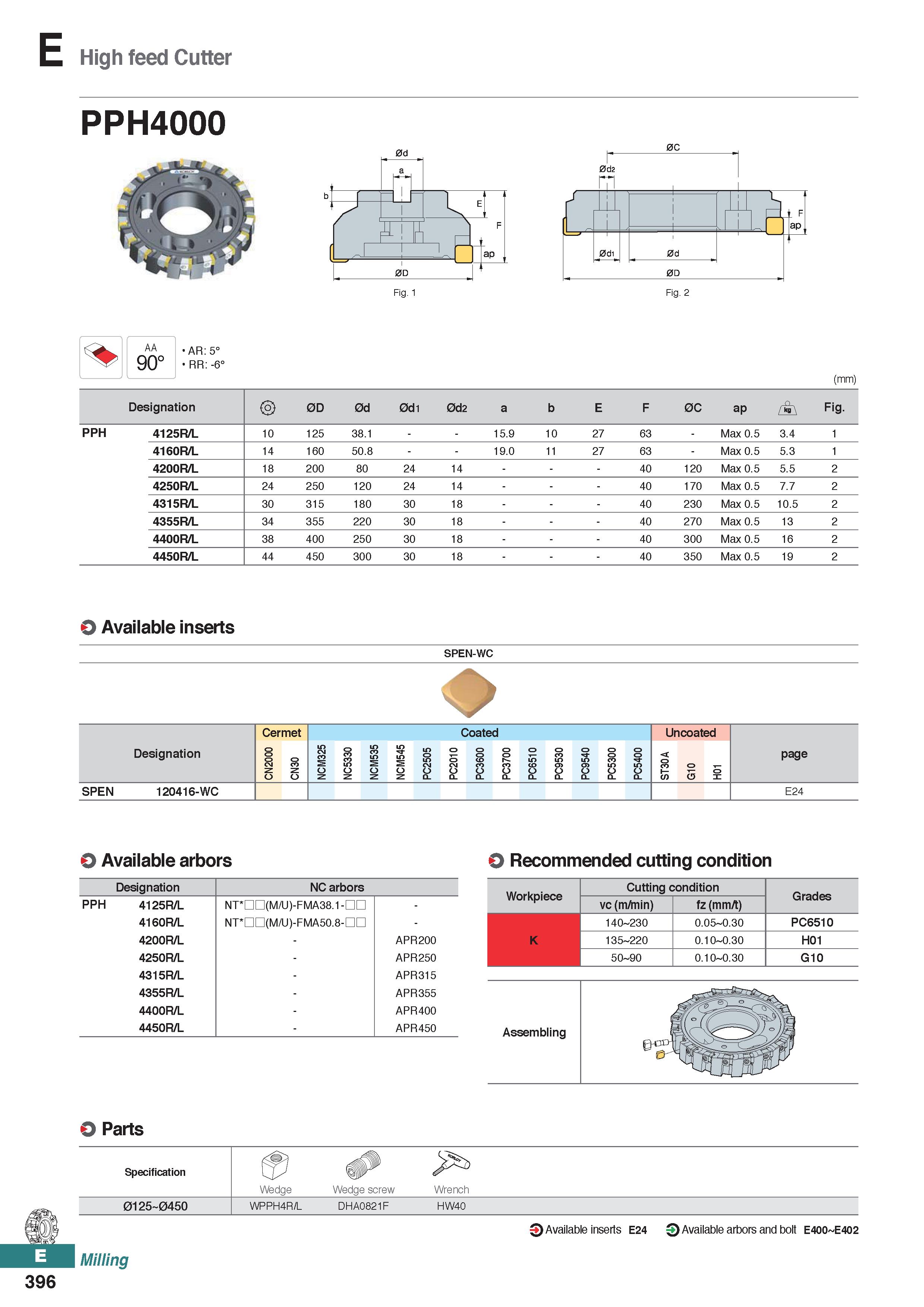

High feed Cutter PPH4000 % AA 90° AR: 5° RR: -6 (mm) Designation 0D 0d 0d1 0d2 a b E F 0C ap Fig. PPH 4125R/L 10 125 38.1 15.9 10 27 63 - Max 0.5 3.4 1 4160R/L 14 160 50.8 19.0 11 27 63 - Max 0.5 5.3 1 4200R/L 18 200 80 24 14 - 40 120 Max 0.5 5.5 2 4250R/L 24 250 120 24 14 - 40 170 Max 0.5 7.7 2 4315R/L 30 315 180 30 18 - 40 230 Max 0.5 10.5 2 4355R/L 34 355 220 30 18 - 40 270 Max 0.5 13 2 4400R/L 38 400 250 30 18 - 40 300 Max 0.5 16 2 4450R/L 44 450 300 30 18 - 40 350 Max 0.5 19 2 O Available inserts SPEN-WC > Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2010 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 page SPEN 120416-WC E24 O Available arbors Designation NC arbors PPH 4125R/L NT nD(M/U)-FMA38.1-nn - 4160R/L NT nD(M/U)-FMA50.8-nn - 4200R/L - APR200 4250R/L - APR250 4315R/L - APR315 4355R/L - APR355 4400R/L - APR400 4450R/L - APR450 O Recommended cutting condition Workpiece Cutting condition Grades vc (m/min) fz (mm/t) K 140 230 0.05 0.30 PC6510 135 220 0.10 0.30 H01 50 90 0.10 0.30 G10 0 Parts Specification Wedge Wedge screw Wrench 0125 045O WPPH4R/L DHA0821F HW40 Milling Q Available inserts E24 Q Available arbors and bolt E400 E402 396
