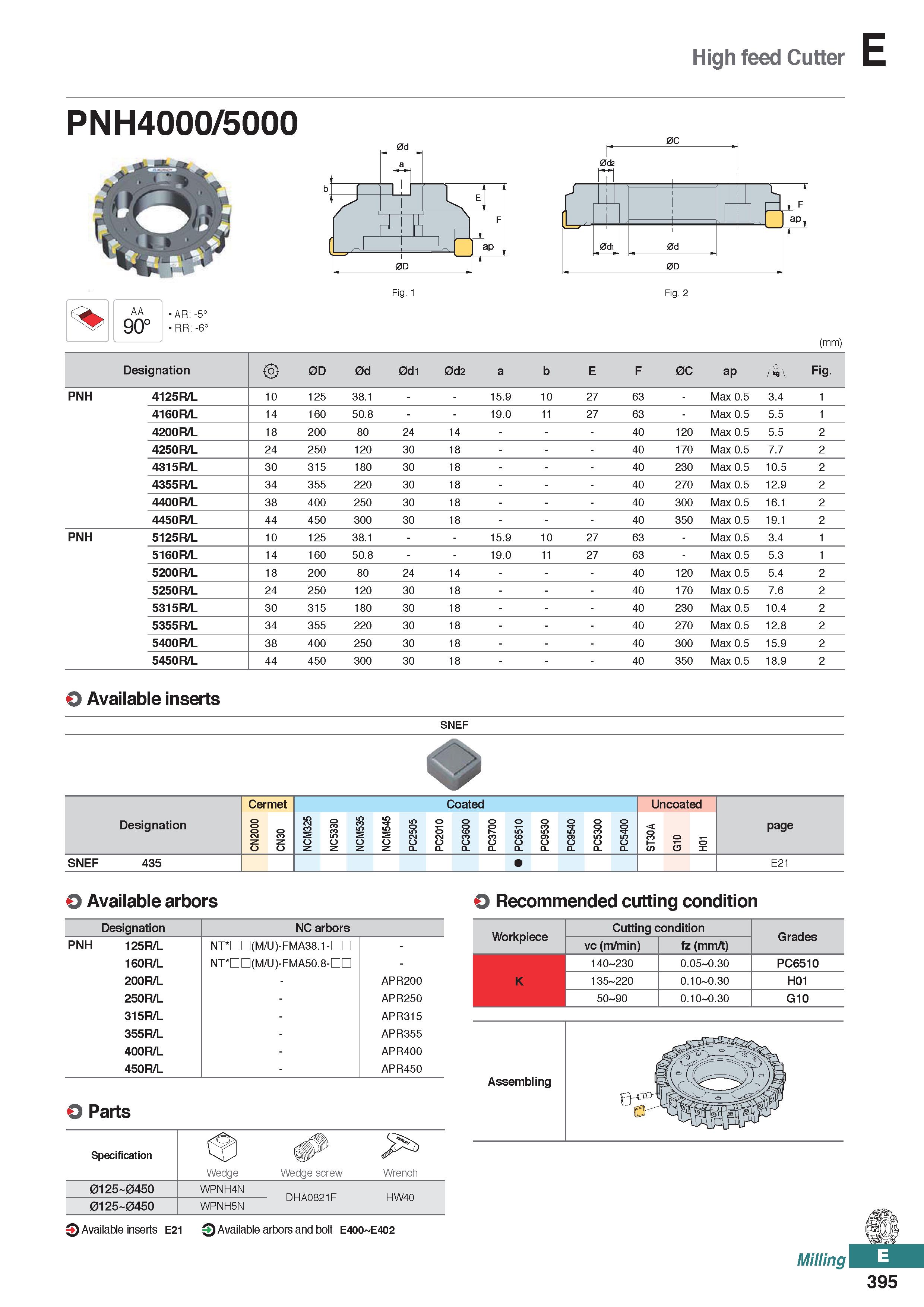

High feed Cutter PNH4000/5000 0C AA 90° AR: -5° RR: -6° Fig. 1 Fig. 2 (mm) Designation 0D 0d 0d1 0d2 a b E F 0C ap /i\ Fig. PNH 4125R/L 10 125 38.1 15.9 10 27 63 - Max 0.5 3.4 1 4160R/L 14 160 50.8 19.0 11 27 63 - Max 0.5 5.5 1 4200R/L 18 200 80 24 14 - 40 120 Max 0.5 5.5 2 4250R/L 24 250 120 30 18 - 40 170 Max 0.5 7.7 2 4315R/L 30 315 180 30 18 - 40 230 Max 0.5 10.5 2 4355R/L 34 355 220 30 18 - 40 270 Max 0.5 12.9 2 4400R/L 38 400 250 30 18 - 40 300 Max 0.5 16.1 2 4450R/L 44 450 300 30 18 - 40 350 Max 0.5 19.1 2 PNH 5125R/L 10 125 38.1 15.9 10 27 63 - Max 0.5 3.4 1 5160R/L 14 160 50.8 19.0 11 27 63 - Max 0.5 5.3 1 5200R/L 18 200 80 24 14 - 40 120 Max 0.5 5.4 2 5250R/L 24 250 120 30 18 - 40 170 Max 0.5 7.6 2 5315R/L 30 315 180 30 18 - 40 230 Max 0.5 10.4 2 5355R/L 34 355 220 30 18 - 40 270 Max 0.5 12.8 2 5400R/L 38 400 250 30 18 - 40 300 Max 0.5 15.9 2 5450R/L 44 450 300 30 18 - 40 350 Max 0.5 18.9 2 O Available inserts SNEF Available arbors Designation NC arbors PNH 125R/L NT nD(M/U)-FMA38.1-nn - 160R/L NT nD(M/U)-FMA50.8-nn - 200R/L - APR200 250R/L - APR250 315R/L - APR315 355R/L - APR355 400R/L - APR400 450R/L - APR450 Parts Specification (P Wedge Wedge screw Wrench 0125 045O WPNH4N 0125 045O WPNH5N Q Available inserts E21 Q Available arbors and bolt E400 E402 O Recommended cutting condition Workpiece Cutting condition Grades vc (m/min) fz (mm/t) K 140-230 0.05-0.30 PC6510 135-220 0.10-0.30 H01 50-90 0.10-0.30 G10 Assembling Milling 395
