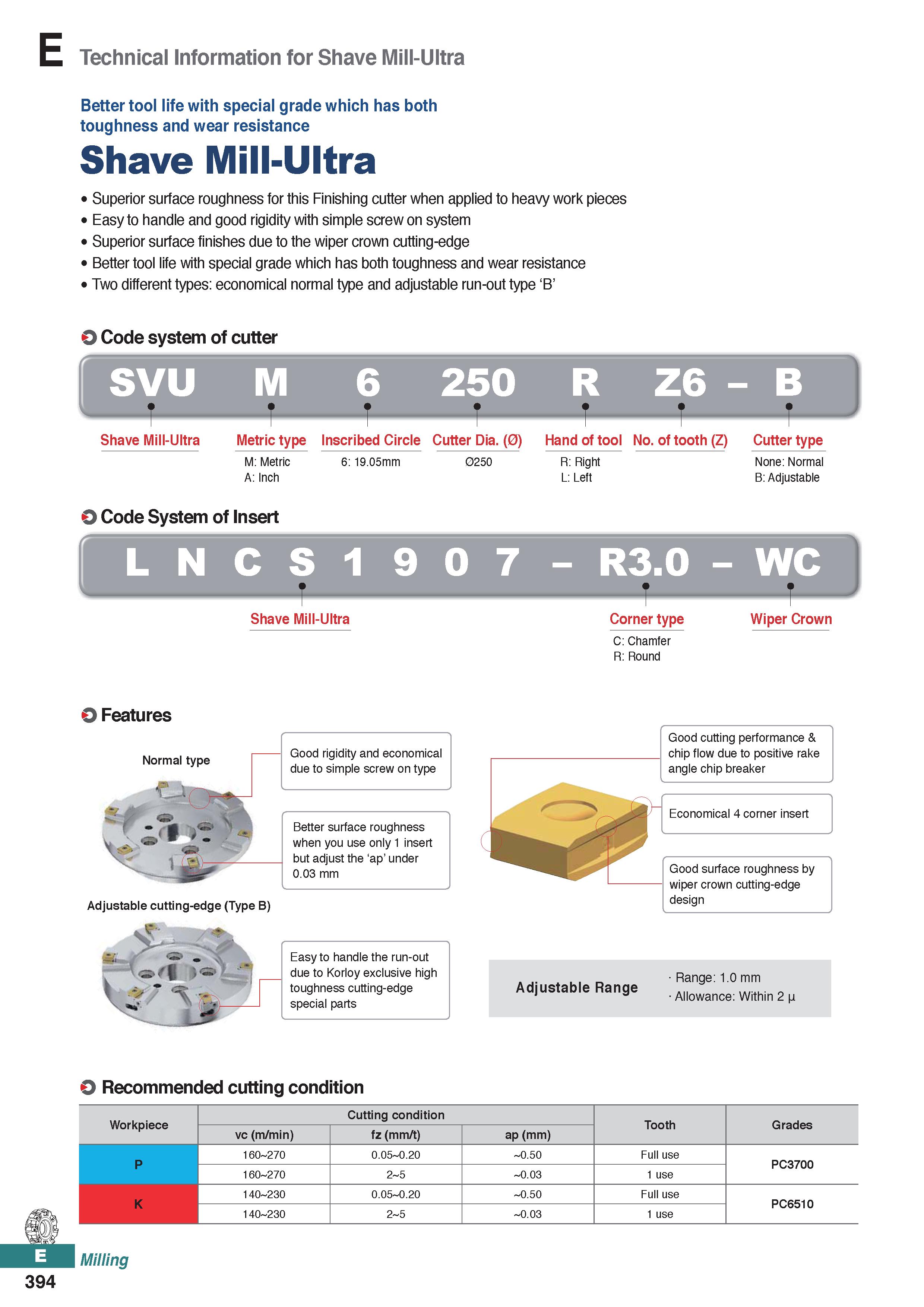

Technical Information for Shave Mill-Ultra Better tool life with special grade which has both toughness and wear resistance Shave Mill-Ultra Superior surface roughness for this Finishing cutter when applied to heavy work pieces Easy to handle and good rigidity with simple screw on system Superior surface finishes due to the wiper crown cutting-edge Better tool life with special grade which has both toughness and wear resistance Two different types: economical normal type and adjustable run-out type ‘B’ 0 Code system of cutter SVU M 250 Z6 - -1- Shave Mill-Ultra Metric type M: Metric A: Inch 0 Code System of Insert Inscribed Circle Cutter Dia. (0) Hand of tool No. of tooth (Z) R: Right L: Left 6: 19.05mm 0250 Cutter type None: Normal B: Adjustable L N C S 1 9 T Shave Mill-Ultra - W Corner type C: Chamfer R: Round T Wiper Crown 6 0 Features Normal type Good rigidity and economical due to simple screw on type Better surface roughness when you use only 1 insert but adjust the ‘ap’ under 0.03 mm Adjustable cutting-edge (Type B) Ml 1 \k A Easy to handle the run-out I m due to Korloy exclusive high toughness cutting-edge w special parts Good cutting performance & chip flow due to positive rake angle chip breaker Adjustable Range Range: 1.0 mm Allowance: Within 2 i O Recommended cutting condition Workpiece Cutting condition Tooth Grades vc (m/min) fz (mm/t) ap (mm) P 160 270 0.05 0.20 0.50 Full use PC3700 160 270 2 5 0.03 1 use K 140 230 0.05 0.20 0.50 Full use PC6510 140 230 2 5 0.03 1 use 394 Milling
