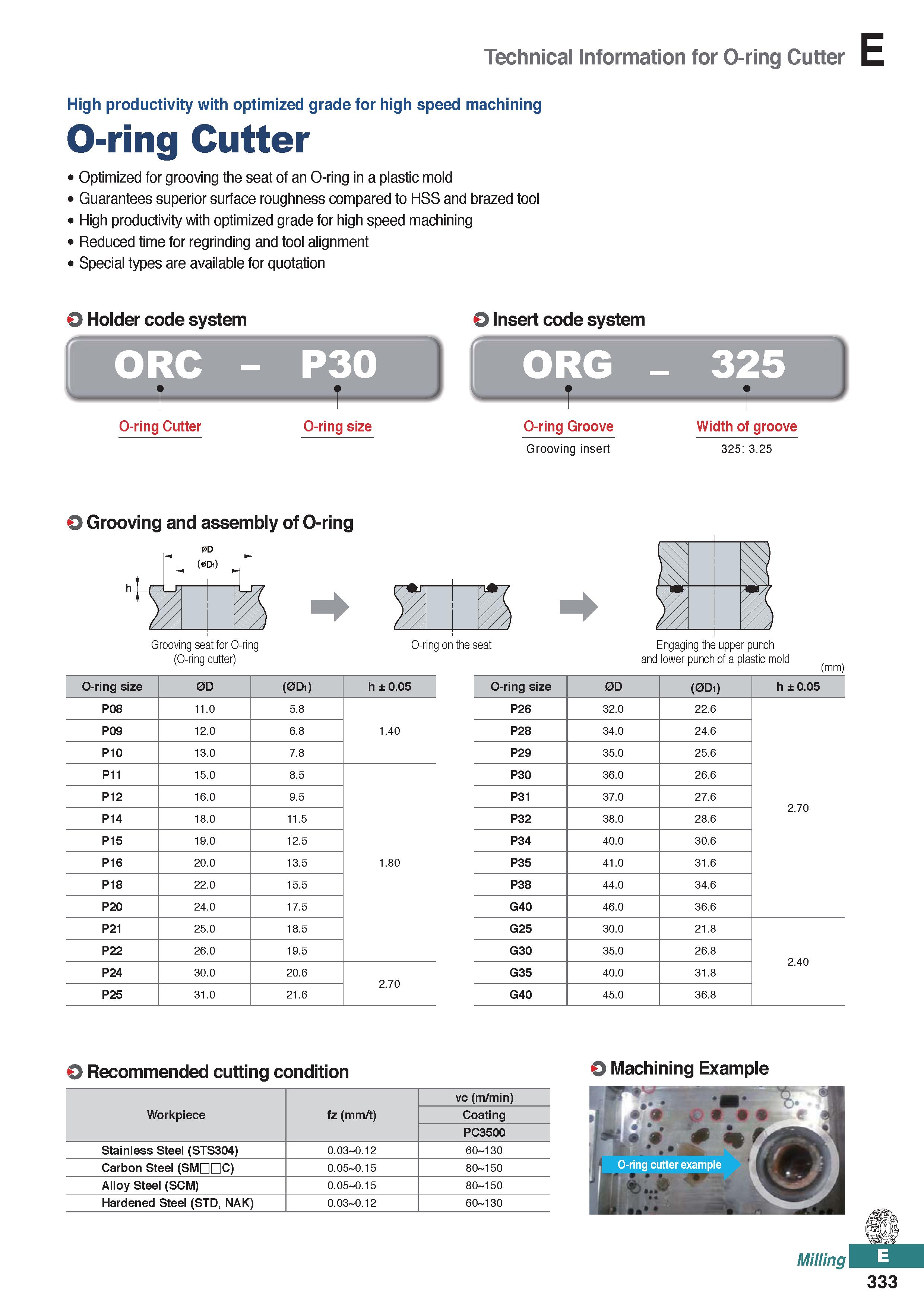

Technical Information for O-ring Cutter High productivity with optimized grade for high speed machining O-ring Cutter Optimized for grooving the seat of an O-ring in a plastic mold Guarantees superior surface roughness compared to HSS and brazed tool High productivity with optimized grade for high speed machining Reduced time for regrinding and tool alignment Special types are available for quotation O Holder code system f O-ring Cutter O-ring size 9 Insert code system ORC - P30 ORG - 325 O-ring Groove Grooving insert Width of groove 325: 3.25 O Grooving and assembly of O-ring ( SDi) r , i Grooving seat for O-ring (O-ring cutter) O-ring on the seat and lower punch of a plastic mold (mm) O-ring size 0D (0D1) h ± 0.05 O-ring size 0D (0D1) h ± 0.05 P08 11.0 5.8 P26 32.0 22.6 P09 12.0 6.8 1.40 P28 34.0 24.6 P10 13.0 7.8 P29 35.0 25.6 P11 15.0 8.5 P30 36.0 26.6 P12 16.0 9.5 P31 37.0 27.6 2.70 P14 18.0 11.5 P32 38.0 28.6 P15 19.0 12.5 P34 40.0 30.6 P16 20.0 13.5 1.80 P35 41.0 31.6 P18 22.0 15.5 P38 44.0 34.6 P20 24.0 17.5 G40 46.0 36.6 P21 25.0 18.5 G25 30.0 21.8 P22 26.0 19.5 G30 35.0 26.8 2.40 P24 30.0 20.6 2.70 G35 40.0 31.8 P25 31.0 21.6 G40 45.0 36.8 0 Recommended cutting condition O Machmmg Example Workpiece fz (mm/t) vc (m/min) Coating PC3500 Stainless Steel (STS304) 0.03 0.12 60 130 Carbon Steel (SMDDC) 0.05 0.15 80 150 Alloy Steel (SCM) 0.05 0.15 80 150 Hardened Steel (STD, NAK) 0.03 0.12 60 130 Milling 333
