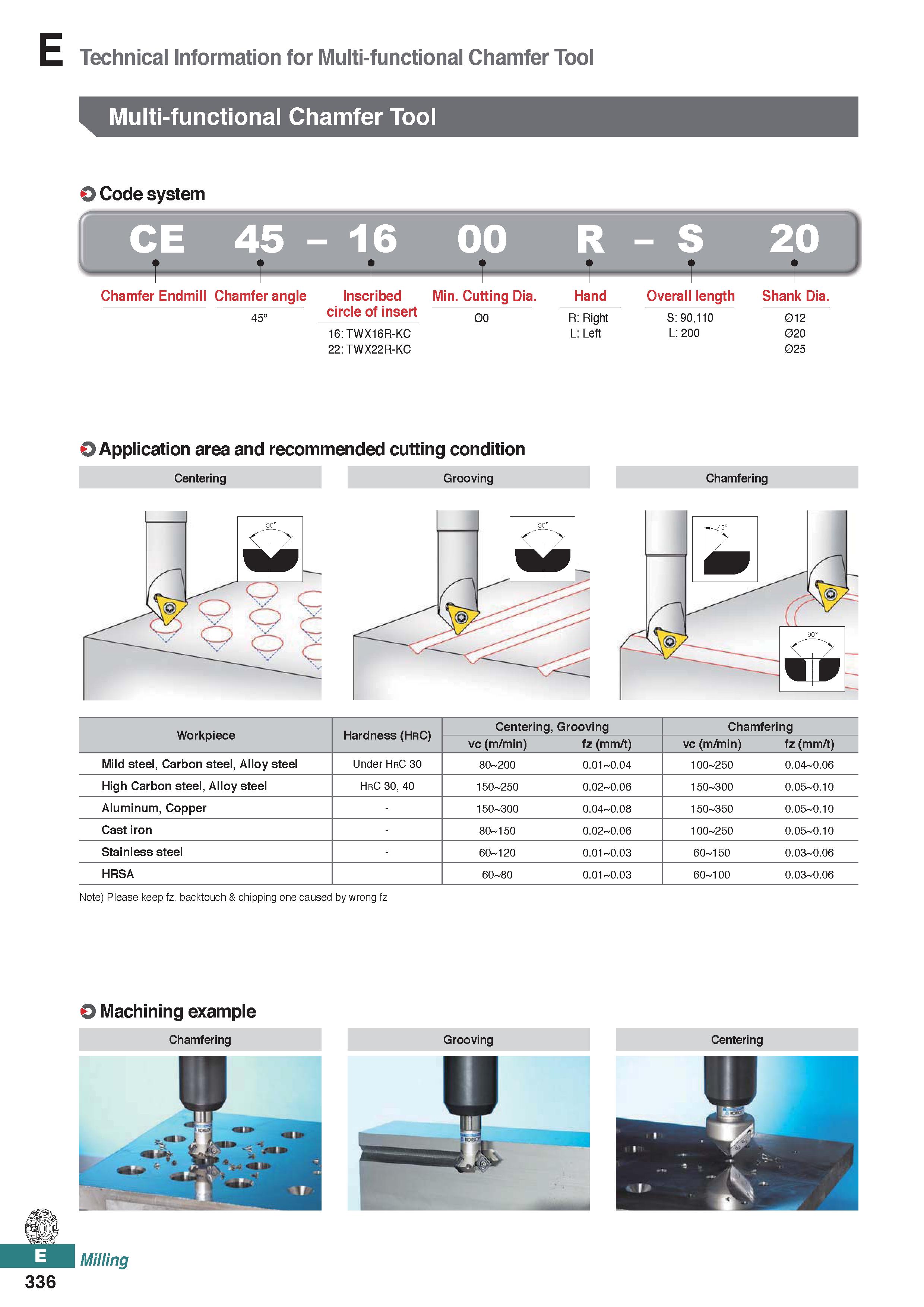

Technical Information for Multi-functional Chamfer Tool Multi-functional Chamfer Tool 0 Code system CE 45 - 16 - S 20 Chamfer Endmill Chamfer angle 45° Inscribed circle of insert 16: TWX16R-KC 22: TWX22R-KC Min. Cutting Dia. Hand Overall length Shank Dia. 00 R: Right L: Left S: 90,110 L: 200 012 020 025 0 Application area and recommended cutting condition Grooving Chamfering Workpiece Hardness (HrC) Centering, Grooving Chamfering vc (m/min) fz (mm/t) vc (m/min) fz (mm/t) Mild steel, Carbon steel, Alloy steel Under HrC 30 80 200 0.01 0.04 100 250 0.04 0.06 High Carbon steel, Alloy steel HrC 30, 40 150 250 0.02 0.06 150 300 0.05 0.10 Aluminum, Copper - 150 300 0.04 0.08 150 350 0.05 0.10 Cast iron - 80 150 0.02 0.06 100 250 0.05 0.10 Stainless steel - 60 120 0.01 0.03 60 150 0.03 0.06 HRSA 60 80 0.01 0.03 60 100 0.03 0.06 Note) Please keep fz. backtouch & chipping one caused by wrong fz 9 Machining example 336
