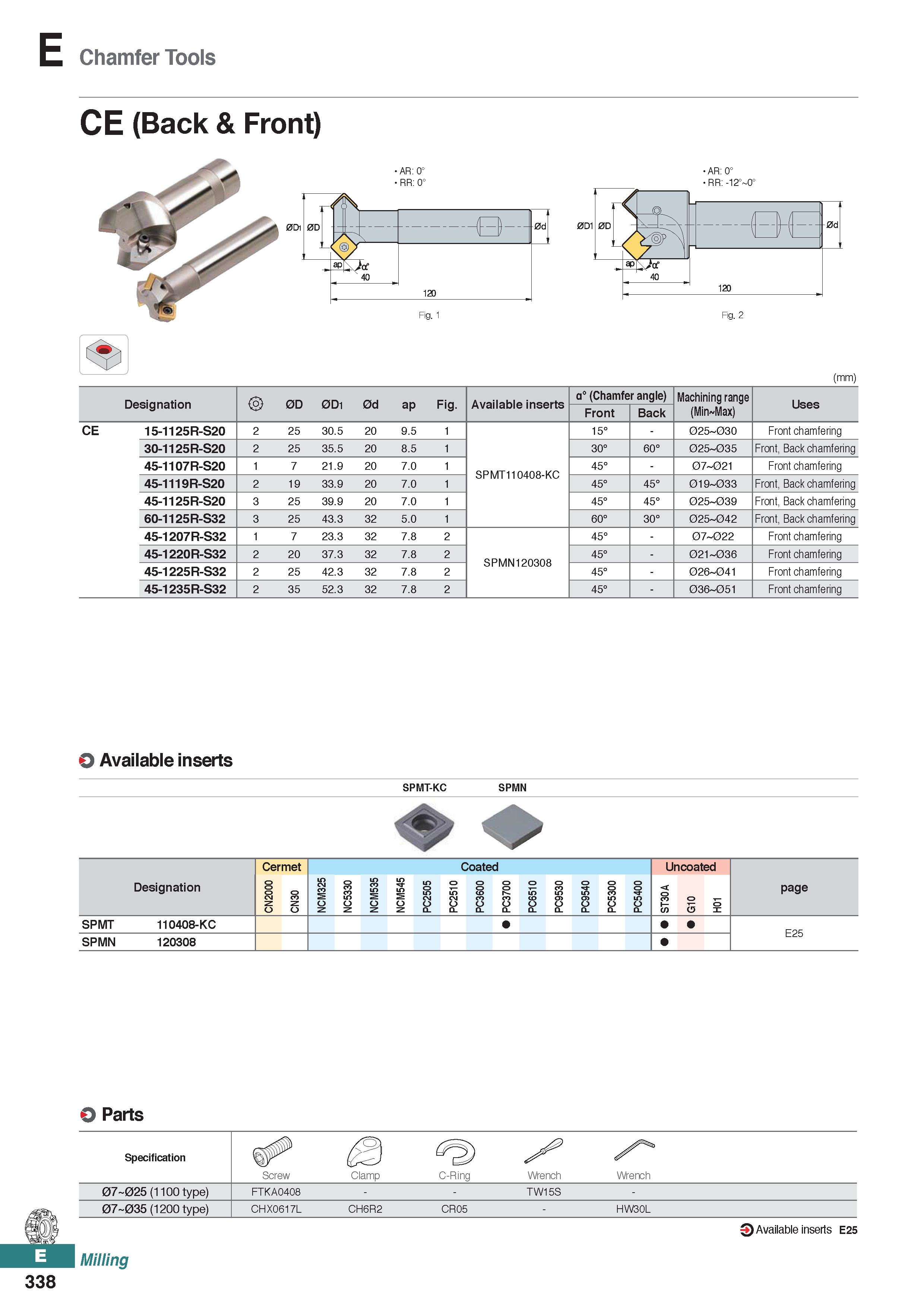

Chamfer Tools CE (Back & Front) AR: 0° RR: -12° 0C (mm) Designation 0D 0D1 0d ap Fig. a° (Chamfer angle) Machining range Uses Available inserts Front Back (Min Max) CE 15-1125R-S20 2 25 30.5 20 9.5 1 15° - 025 030 Front chamfering 30-1125R-S20 2 25 35.5 20 8.5 1 30° 60° 025 035 Front, Back chamfering 45-1107R-S20 1 7 21.9 20 7.0 1 SPMT110408-KC 45° - 07 021 Front chamfering 45-1119R-S20 2 19 33.9 20 7.0 1 45° 45° 019 033 Front, Back chamfering 45-1125R-S20 3 25 39.9 20 7.0 1 45° 45° 025 039 Front, Back chamfering 60-1125R-S32 3 25 43.3 32 5.0 1 60° 30° 025 042 Front, Back chamfering 45-1207R-S32 1 7 23.3 32 7.8 2 45° - 07 022 Front chamfering 45-1220R-S32 2 20 37.3 32 7.8 2 SPMN120308 45° - 021 036 Front chamfering 45-1225R-S32 2 25 42.3 32 7.8 2 45° - 026 041 Front chamfering 45-1235R-S32 2 35 52.3 32 7.8 2 45° - 036 051 Front chamfering O Available inserts SPMT-KC SPMN Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 NCM535 5 4 5 M C N PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 page SPMT 110408-KC E25 SPMN 120308 O Parts Specification Screw Clamp C-Ring Wrench Wrench 07 025 (1100 type) FTKA0408 TW15S - 07 035 (1200 type) CHX0617L CH6R2 CR05 - HW30L 338 Available inserts E25 Milling
