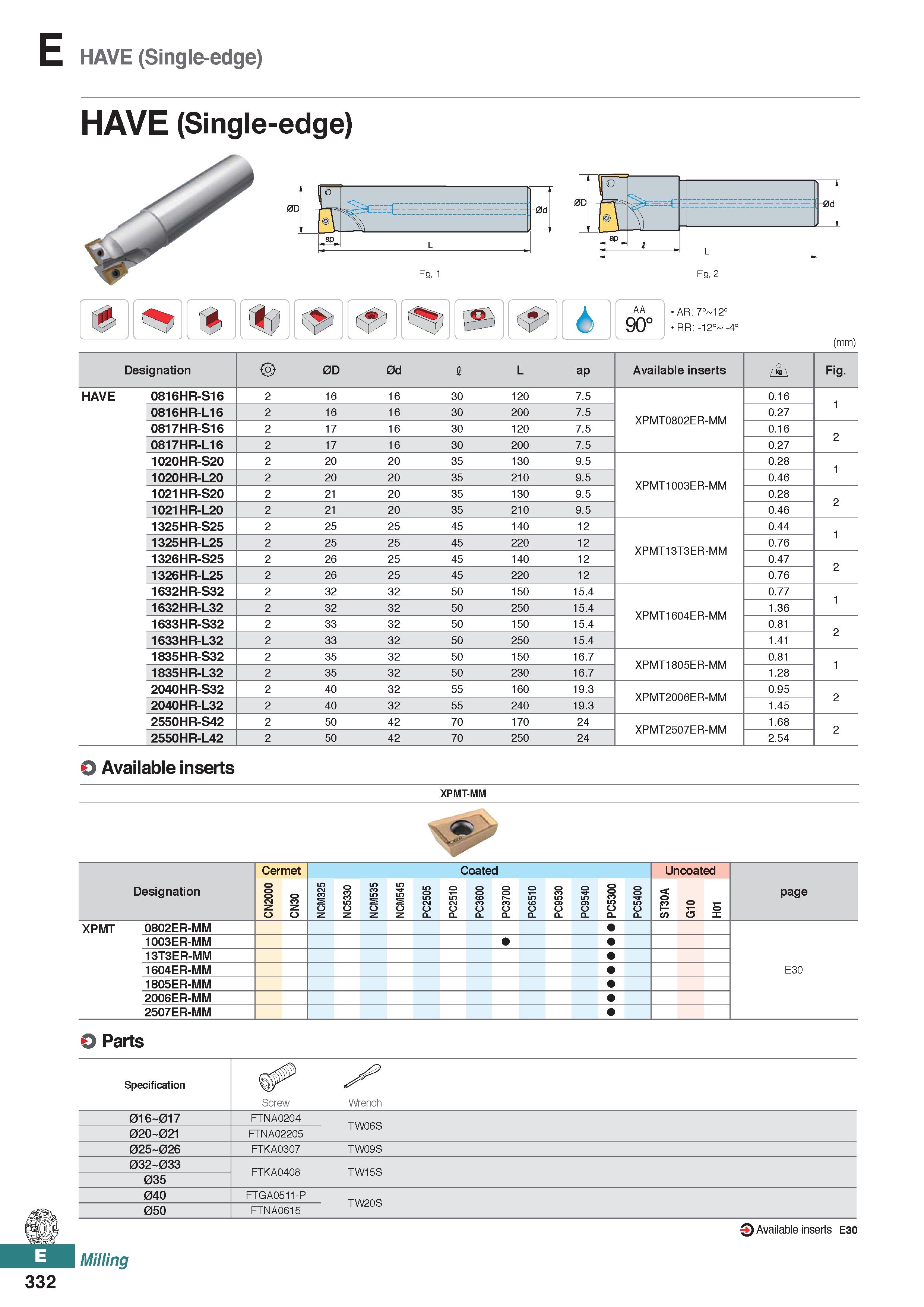

E HAVE (Single-edge) HAVE (Single-edge) 0d Fig. ' AA 90° AR: 7° 12° RR: -12° -4° (mm) Designation 0D 0d I L ap Available inserts Fig. HAVE 0816HR-S16 2 16 16 30 120 7.5 0.16 0816HR-L16 2 16 16 30 200 7.5 XPMT0802ER-MM 0.27 1 0817HR-S16 2 17 16 30 120 7.5 0.16 2 0817HR-L16 2 17 16 30 200 7.5 0.27 1020HR-S20 2 20 20 35 130 9.5 0.28 1020HR-L20 2 20 20 35 210 9.5 XPMT1003ER-MM 0.46 1 1021HR-S20 2 21 20 35 130 9.5 0.28 2 1021HR-L20 2 21 20 35 210 9.5 0.46 1325HR-S25 2 25 25 45 140 12 0.44 1325HR-L25 2 25 25 45 220 12 XPMT13T3ER-MM 0.76 1 1326HR-S25 2 26 25 45 140 12 0.47 2 1326HR-L25 2 26 25 45 220 12 0.76 1632HR-S32 2 32 32 50 150 15.4 0.77 1632HR-L32 2 32 32 50 250 15.4 XPMT1604ER-MM 1.36 1 1633HR-S32 2 33 32 50 150 15.4 0.81 2 1633HR-L32 2 33 32 50 250 15.4 1.41 1835HR-S32 2 35 32 50 150 16.7 XPMT1805ER-MM 0.81 1835HR-L32 2 35 32 50 230 16.7 1.28 1 2040HR-S32 2 40 32 55 160 19.3 XPMT2006ER-MM 0.95 2 2040HR-L32 2 40 32 55 240 19.3 1.45 2550HR-S42 2 50 42 70 170 24 XPMT2507ER-MM 1.68 2 2550HR-L42 2 50 42 70 250 24 2.54 O Available inserts XPMT-MM Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 XPMT 0802ER-MM 1003ER-MM 13T3ER-MM 1604ER-MM E30 1805ER-MM 2006ER-MM 2507ER-MM O Parts Specification Screw Wrench 016 017 FTNA0204 TW06S 02O 021 FTNA02205 025 026 FTKA0307 TW09S 032 033 FTKA0408 TW15S 035 04O FTGA0511-P TW20S 05O FTNA0615 9 Available inserts E30 Milling 332
