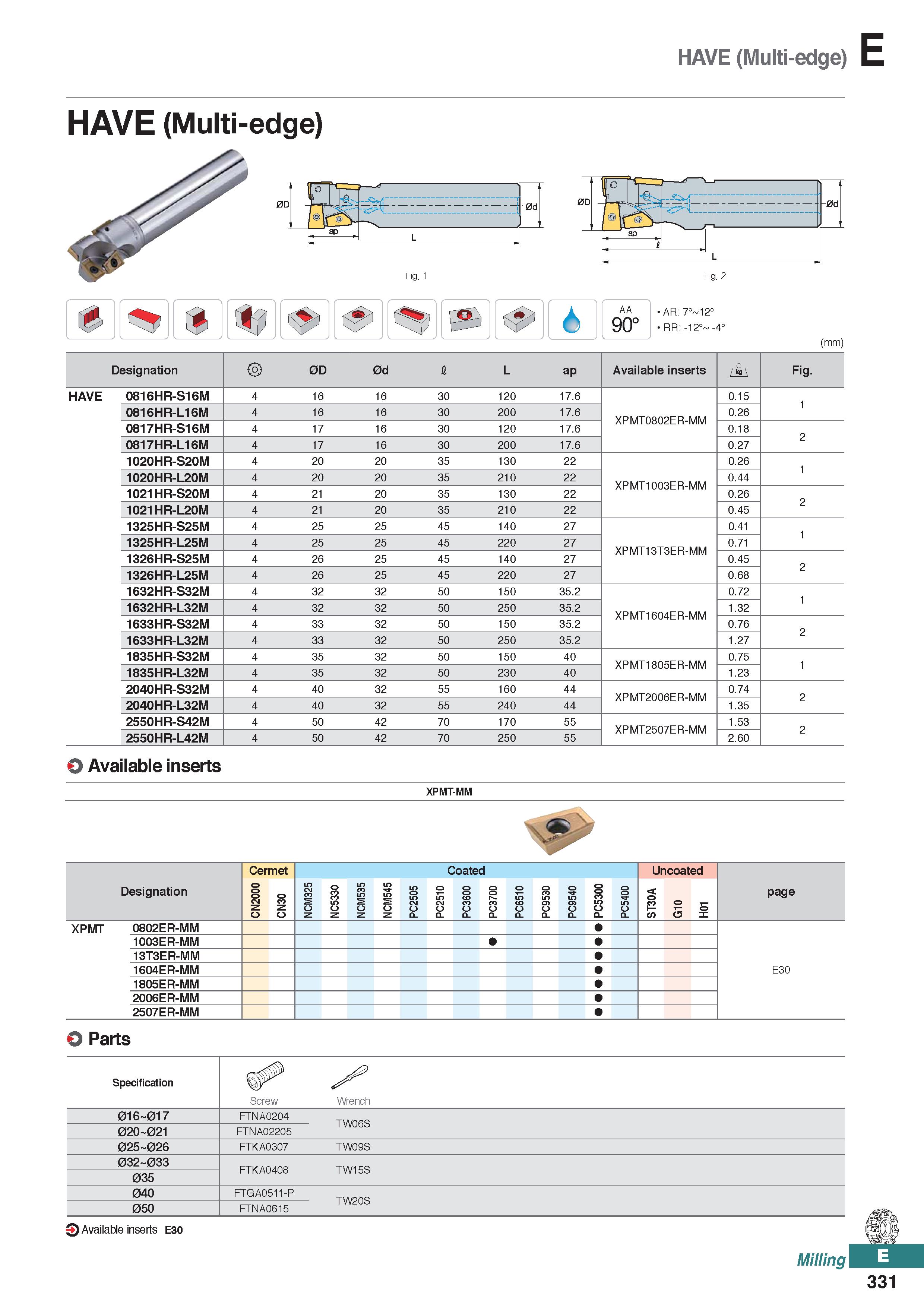

HAVE (Multi-edge) E HAVE (Multi-edge) ho \ ii -1 0d L aP „ L :- Fig. ' AA 90° AR: 7° 12° RR: -12° -4° (mm) Designation 0D 0d 1 L ap Available inserts Fig. HAVE 0816HR-S16M 4 16 16 30 120 17.6 0.15 0816HR-L16M 4 16 16 30 200 17.6 XPMT0802ER-MM 0.26 0817HR-S16M 4 17 16 30 120 17.6 0.18 2 0817HR-L16M 4 17 16 30 200 17.6 0.27 1020HR-S20M 4 20 20 35 130 22 0.26 1020HR-L20M 4 20 20 35 210 22 XPMT1003ER-MM 0.44 1021HR-S20M 4 21 20 35 130 22 0.26 2 1021HR-L20M 4 21 20 35 210 22 0.45 1325HR-S25M 4 25 25 45 140 27 0.41 1325HR-L25M 4 25 25 45 220 27 XPMT13T3ER-MM 0.71 1326HR-S25M 4 26 25 45 140 27 0.45 2 1326HR-L25M 4 26 25 45 220 27 0.68 1632HR-S32M 4 32 32 50 150 35.2 0.72 1632HR-L32M 4 32 32 50 250 35.2 XPMT1604ER-MM 1.32 1633HR-S32M 4 33 32 50 150 35.2 0.76 2 1633HR-L32M 4 33 32 50 250 35.2 1.27 1835HR-S32M 4 35 32 50 150 40 XPMT1805ER-MM 0.75 1835HR-L32M 4 35 32 50 230 40 1.23 2040HR-S32M 4 40 32 55 160 44 XPMT2006ER-MM 0.74 2 2040HR-L32M 4 40 32 55 240 44 1.35 2550HR-S42M 4 50 42 70 170 55 XPMT2507ER-MM 1.53 2 2550HR-L42M 4 50 42 70 250 55 2.60 O Available inserts XPMT-MM Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 5 4 5 M C N PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 XPMT 0802ER-MM 1003ER-MM 13T3ER-MM 1604ER-MM E30 1805ER-MM 2006ER-MM 2507ER-MM O Parts Specification Screw Wrench 016 017 FTNA0204 TW06S 02O 021 FTNA02205 025 026 FTKA0307 TW09S 032 033 FTKA0408 TW15S 035 04O FTGA0511-P TW20S 05O FINA0615 9 Available inserts E30 Milling 331
