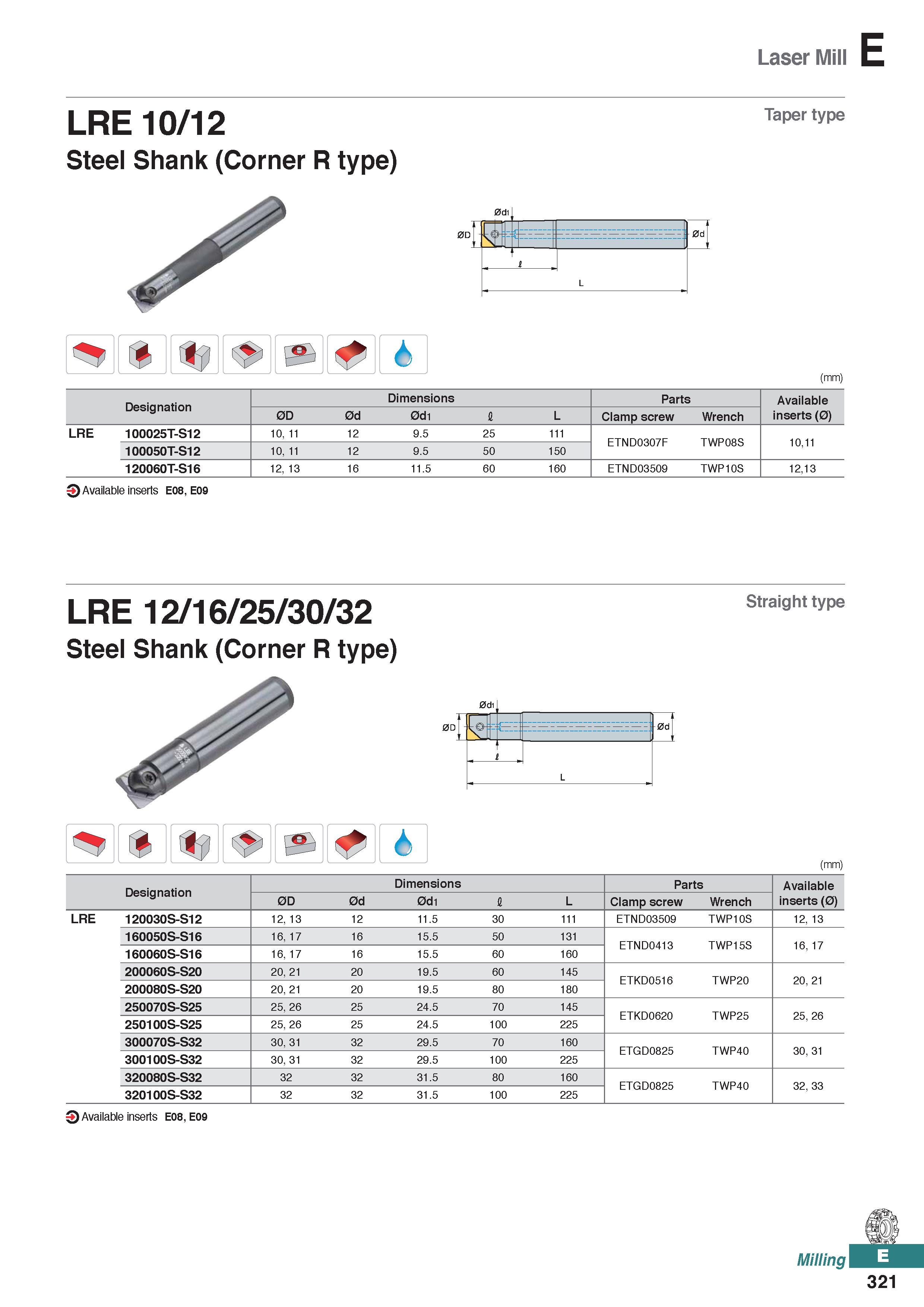

Laser Mill LRE 10/12 Steel Shank (Corner R type) Taper type I L (mm) Designation Dimensions Parts Available 0D 0d 0d1 I L Clamp screw Wrench inserts (0) LRE 100025T-S12 10, 11 12 9.5 25 111 ETND0307F TWP08S 10,11 100050T-S12 10, 11 12 9.5 50 150 120060T-S16 12, 13 16 11.5 60 160 ETND03509 TWP10S 12,13 Q Available inserts E08, E09 LRE 12/16/25/30/32 Steel Shank (Corner R type) Straight type 0dil 0d (mm) Designation Dimensions Parts Available 0D 0d 0d1 I L Clamp screw Wrench inserts (0) LRE 120030S-S12 12, 13 12 11.5 30 111 ETND03509 TWP10S 12, 13 160050S-S16 16, 17 16 15.5 50 131 ETND0413 TWP15S 16, 17 160060S-S16 16, 17 16 15.5 60 160 200060S-S20 20, 21 20 19.5 60 145 ETKD0516 TWP20 20, 21 200080S-S20 20, 21 20 19.5 80 180 250070S-S25 25, 26 25 24.5 70 145 ETKD0620 TWP25 25, 26 250100S-S25 25, 26 25 24.5 100 225 300070S-S32 30, 31 32 29.5 70 160 ETGD0825 TWP40 30, 31 300100S-S32 30, 31 32 29.5 100 225 320080S-S32 32 32 31.5 80 160 ETGD0825 TWP40 32, 33 320100S-S32 32 32 31.5 100 225 Q Available inserts E08, E09 Milling 321
