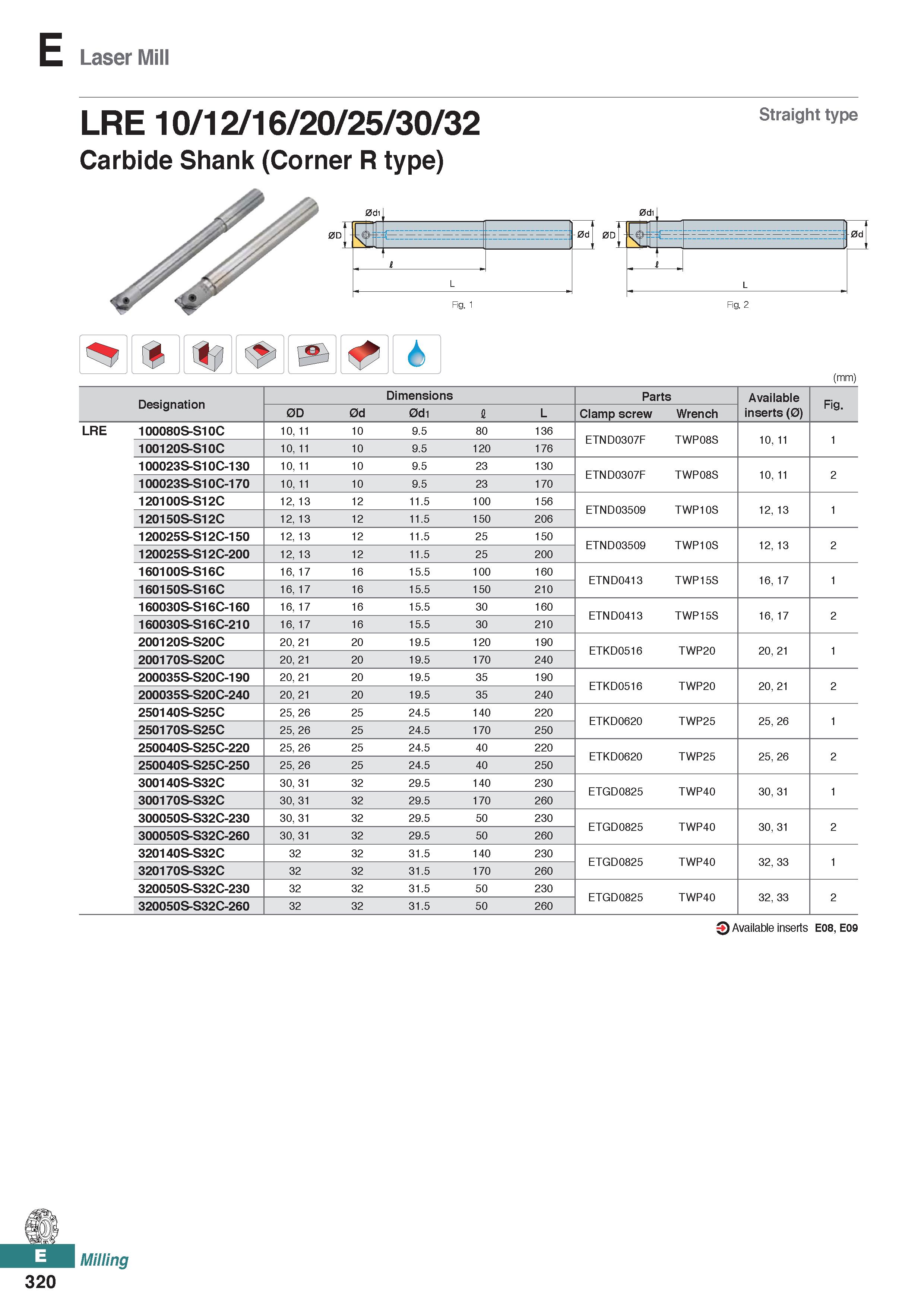

Laser Mill LRE 10/12/16/20/25/30/32 Carbide Shank (Corner R type) Straight type 0d 0D Fig. 2 (mm) Designation Dimensions Parts Available Fig. 0D 0d 0d1 I L Clamp screw Wrench inserts (0) LRE 100080S-S10C 10, 11 10 9.5 80 136 ETND0307F TWP08S 10, 11 100120S-S10C 10, 11 10 9.5 120 176 100023S-S10C-130 10, 11 10 9.5 23 130 ETND0307F TWP08S 10, 11 2 100023S-S10C-170 10, 11 10 9.5 23 170 120100S-S12C 12, 13 12 11.5 100 156 ETND03509 TWP10S 12, 13 120150S-S12C 12, 13 12 11.5 150 206 120025S-S12C-150 12, 13 12 11.5 25 150 ETND03509 TWP10S 12, 13 2 120025S-S12C-200 12, 13 12 11.5 25 200 160100S-S16C 16, 17 16 15.5 100 160 ETND0413 TWP15S 16, 17 160150S-S16C 16, 17 16 15.5 150 210 160030S-S16C-160 16, 17 16 15.5 30 160 ETND0413 TWP15S 16, 17 2 160030S-S16C-210 16, 17 16 15.5 30 210 200120S-S20C 20, 21 20 19.5 120 190 ETKD0516 TWP20 20, 21 200170S-S20C 20, 21 20 19.5 170 240 200035S-S20C-190 20, 21 20 19.5 35 190 ETKD0516 TWP20 20, 21 2 200035S-S20C-240 20, 21 20 19.5 35 240 250140S-S25C 25, 26 25 24.5 140 220 ETKD0620 TWP25 25, 26 250170S-S25C 25, 26 25 24.5 170 250 250040S-S25C-220 25, 26 25 24.5 40 220 ETKD0620 TWP25 25, 26 2 250040S-S25C-250 25, 26 25 24.5 40 250 300140S-S32C 30, 31 32 29.5 140 230 ETGD0825 TWP40 30, 31 300170S-S32C 30, 31 32 29.5 170 260 300050S-S32C-230 30, 31 32 29.5 50 230 ETGD0825 TWP40 30, 31 2 300050S-S32C-260 30, 31 32 29.5 50 260 320140S-S32C 32 32 31.5 140 230 ETGD0825 TWP40 32, 33 320170S-S32C 32 32 31.5 170 260 320050S-S32C-230 32 32 31.5 50 230 ETGD0825 TWP40 32, 33 2 320050S-S32C-260 32 32 31.5 50 260 Q Available inserts E08, E09 320
