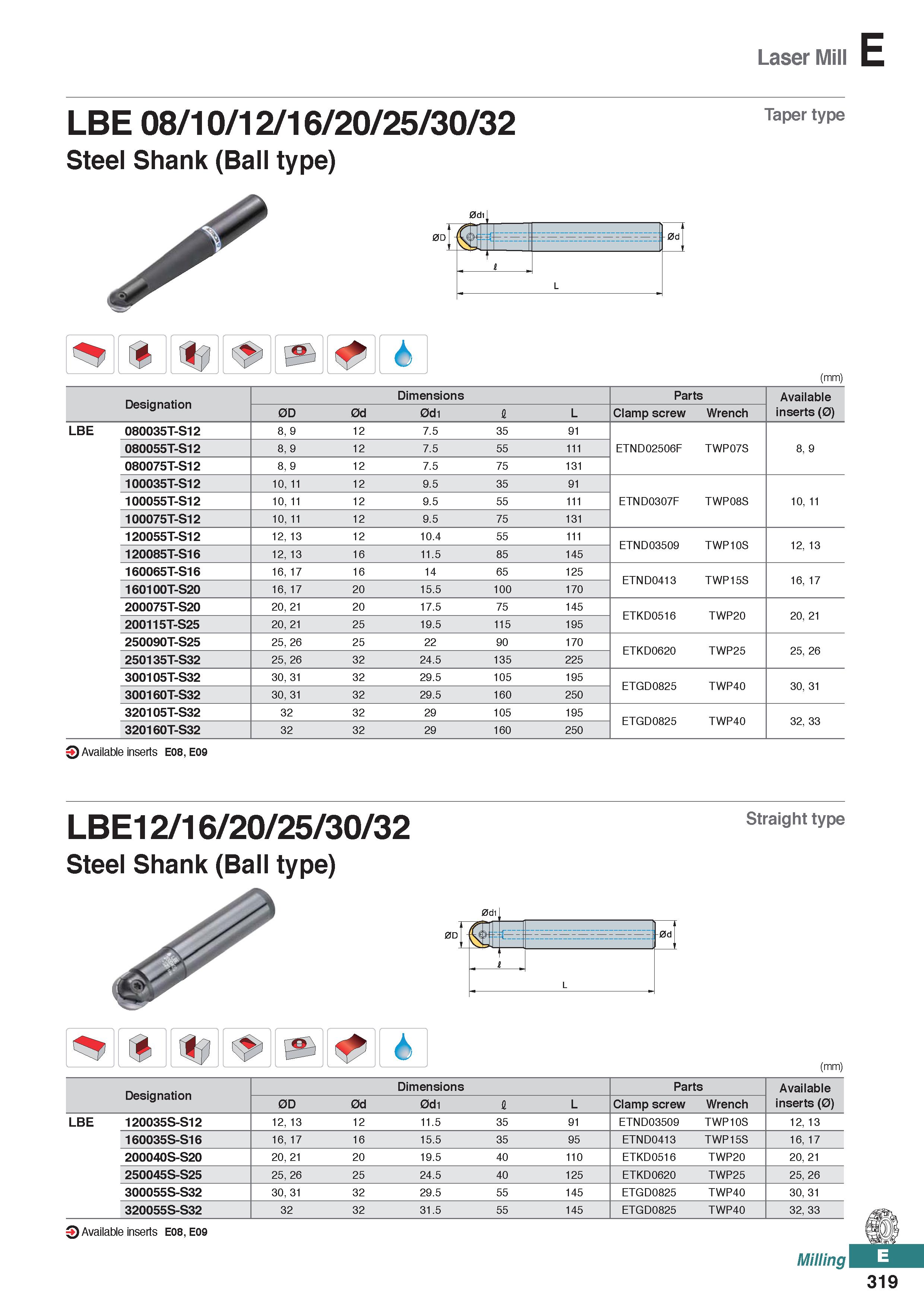

Laser Mill LBE 08/10/12/16/20/25/30/32 Steel Shank (Ball type) Taper type 0D L (mm) Designation Dimensions Parts Available 0D 0d 0d1 I L Clamp screw Wrench inserts (0) LBE 080035T-S12 8, 9 12 7.5 35 91 080055T-S12 8, 9 12 7.5 55 111 ETND02506F TWP07S 8, 9 080075T-S12 8, 9 12 7.5 75 131 100035T-S12 10, 11 12 9.5 35 91 100055T-S12 10, 11 12 9.5 55 111 ETND0307F TWP08S 10, 11 100075T-S12 10, 11 12 9.5 75 131 120055T-S12 12, 13 12 10.4 55 111 ETND03509 TWP10S 12, 13 120085T-S16 12, 13 16 11.5 85 145 160065T-S16 16, 17 16 14 65 125 ETND0413 TWP15S 16, 17 160100T-S20 16, 17 20 15.5 100 170 200075T-S20 20, 21 20 17.5 75 145 ETKD0516 TWP20 20, 21 200115T-S25 20, 21 25 19.5 115 195 250090T-S25 25, 26 25 22 90 170 ETKD0620 TWP25 25, 26 250135T-S32 25, 26 32 24.5 135 225 300105T-S32 30, 31 32 29.5 105 195 ETGD0825 TWP40 30, 31 300160T-S32 30, 31 32 29.5 160 250 320105T-S32 32 32 29 105 195 ETGD0825 TWP40 32, 33 320160T-S32 32 32 29 160 250 0 Available inserts E08, E09 LBE12/16/20/25/30/32 Steel Shank (Ball type) Straight type 0di 0d (mm) Designation Dimensions Parts Available inserts (0) 0D 0d 0d1 I L Clamp screw Wrench LBE 120035S-S12 12, 13 12 11.5 35 91 ETND03509 TWP10S 12, 13 160035S-S16 16, 17 16 15.5 35 95 ETND0413 TWP15S 16, 17 200040S-S20 20, 21 20 19.5 40 110 ETKD0516 TWP20 20, 21 250045S-S25 25, 26 25 24.5 40 125 ETKD0620 TWP25 25, 26 300055S-S32 30, 31 32 29.5 55 145 ETGD0825 TWP40 30, 31 320055S-S32 32 32 31.5 55 145 ETGD0825 TWP40 32, 33 Q Available inserts E08, E09 Milling 319
