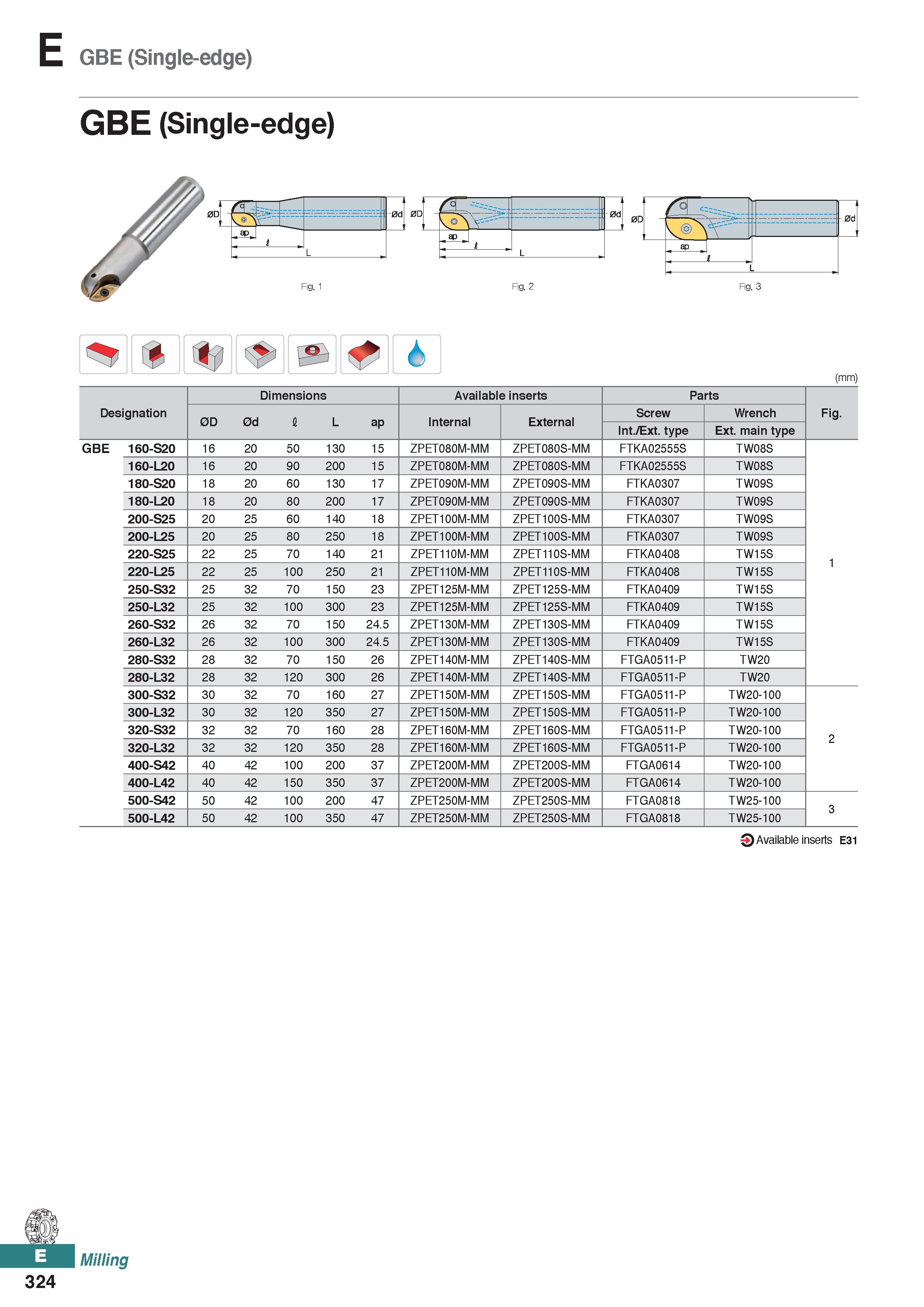

E GBE (Single-edge) GBE (Single-edge) I fA j 1 .ap J 1 . L - i 0d ' ,1 I L Fig. 2 Fig. 3 (mm) Dimensions Available inserts Parts Designation 0D 0d I L ap Internal External Screw Wrench Fig. Int./Ext. type Ext. main type GBE 160-S20 16 20 50 130 15 ZPET080M-MM ZPET080S-MM FTKA02555S TW08S 160-L20 16 20 90 200 15 ZPET080M-MM ZPET080S-MM FTKA02555S TW08S 180-S20 18 20 60 130 17 ZPET090M-MM ZPET090S-MM FTKA0307 TW09S 180-L20 18 20 80 200 17 ZPET090M-MM ZPET090S-MM FTKA0307 TW09S 200-S25 20 25 60 140 18 ZPET100M-MM ZPET100S-MM FTKA0307 TW09S 200-L25 20 25 80 250 18 ZPET100M-MM ZPET100S-MM FTKA0307 TW09S 220-S25 22 25 70 140 21 ZPET110M-MM ZPET110S-MM FTKA0408 TW15S 1 220-L25 22 25 100 250 21 ZPET110M-MM ZPET110S-MM FTKA0408 TW15S 250-S32 25 32 70 150 23 ZPET125M-MM ZPET125S-MM FTKA0409 TW15S 250-L32 25 32 100 300 23 ZPET125M-MM ZPET125S-MM FTKA0409 TW15S 260-S32 26 32 70 150 24.5 ZPET130M-MM ZPET130S-MM FTKA0409 TW15S 260-L32 26 32 100 300 24.5 ZPET130M-MM ZPET130S-MM FTKA0409 TW15S 280-S32 28 32 70 150 26 ZPET140M-MM ZPET140S-MM FTGA0511-P TW20 280-L32 28 32 120 300 26 ZPET140M-MM ZPET140S-MM FTGA0511-P TW20 300-S32 30 32 70 160 27 ZPET150M-MM ZPET150S-MM FTGA0511-P TW20-100 300-L32 30 32 120 350 27 ZPET150M-MM ZPET150S-MM FTGA0511-P TW20-100 320-S32 32 32 70 160 28 ZPET160M-MM ZPET160S-MM FTGA0511-P TW20-100 2 320-L32 32 32 120 350 28 ZPET160M-MM ZPET160S-MM FTGA0511-P TW20-100 400-S42 40 42 100 200 37 ZPET200M-MM ZPET200S-MM FTGA0614 TW20-100 400-L42 40 42 150 350 37 ZPET200M-MM ZPET200S-MM FTGA0614 TW20-100 500-S42 50 42 100 200 47 ZPET250M-MM ZPET250S-MM FTGA0818 TW25-100 3 500-L42 50 42 100 350 47 ZPET250M-MM ZPET250S-MM FTGA0818 TW25-100 9 Available inserts E31 324
