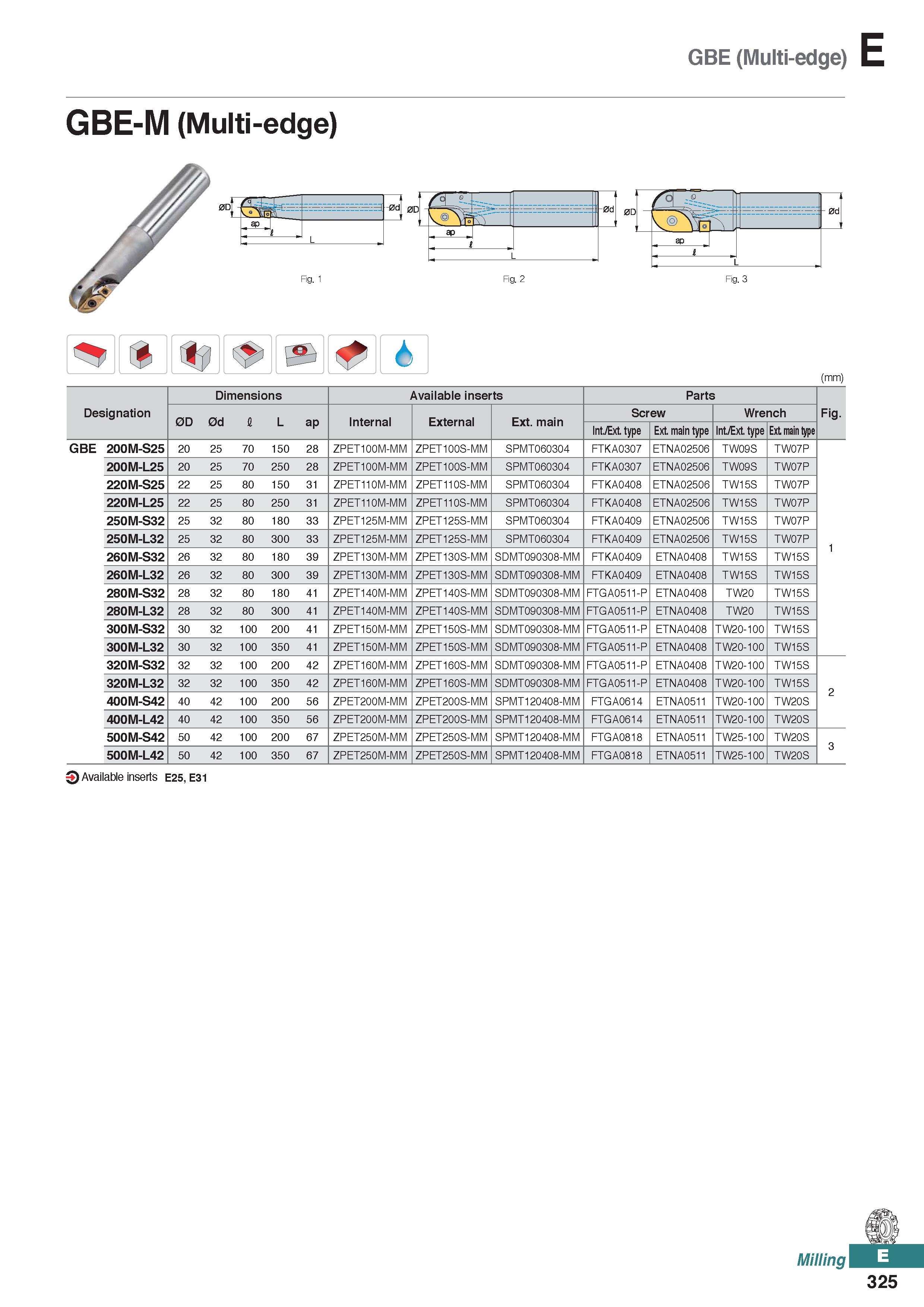

GBE (Multi-edge) E GBE-M (Multi-edge) - P J - . L Fig. ' Fig. 2 > i V vfaS 0d 1 ap i L Fig. 3 (mm) Dimensions Available inserts Parts Designation 0D 0d I L ap Internal External Ext. main Screw Wrench Fig. Int./Ext. type Ext. main type Int./Ext. type Ext. main type GBE 200M-S25 20 25 70 150 28 ZPET100M-MM ZPET100S-MM SPMT060304 FTKA0307 ETNA02506 TW09S TW07P 200M-L25 20 25 70 250 28 ZPET100M-MM ZPET100S-MM SPMT060304 FTKA0307 ETNA02506 TW09S TW07P 220M-S25 22 25 80 150 31 ZPET110M-MM ZPET110S-MM SPMT060304 FTKA0408 ETNA02506 TW15S TW07P 220M-L25 22 25 80 250 31 ZPET110M-MM ZPET110S-MM SPMT060304 FTKA0408 ETNA02506 TW15S TW07P 250M-S32 25 32 80 180 33 ZPET125M-MM ZPET125S-MM SPMT060304 FTKA0409 ETNA02506 TW15S TW07P 250M-L32 25 32 80 300 33 ZPET125M-MM ZPET125S-MM SPMT060304 FTKA0409 ETNA02506 TW15S TW07P 260M-S32 26 32 80 180 39 ZPET130M-MM ZPET130S-MM SDMT090308-MM FTKA0409 ETNA0408 TW15S TW15S 1 260M-L32 26 32 80 300 39 ZPET130M-MM ZPET130S-MM SDMT090308-MM FTKA0409 ETNA0408 TW15S TW15S 280M-S32 28 32 80 180 41 ZPET140M-MM ZPET140S-MM SDMT090308-MM FTGA0511-P ETNA0408 TW20 TW15S 280M-L32 28 32 80 300 41 ZPET140M-MM ZPET140S-MM SDMT090308-MM FTGA0511-P ETNA0408 TW20 TW15S 300M-S32 30 32 100 200 41 ZPET150M-MM ZPET150S-MM SDMT090308-MM FTGA0511-P ETNA0408 TW20-100 TW15S 300M-L32 30 32 100 350 41 ZPET150M-MM ZPET150S-MM SDMT090308-MM FTGA0511-P ETNA0408 TW20-100 TW15S 320M-S32 32 32 100 200 42 ZPET160M-MM ZPET160S-MM SDMT090308-MM FTGA0511-P ETNA0408 TW20-100 TW15S 320M-L32 32 32 100 350 42 ZPET160M-MM ZPET160S-MM SDMT090308-MM FTGA0511-P ETNA0408 TW20-100 TW15S 2 400M-S42 40 42 100 200 56 ZPET200M-MM ZPET200S-MM SPMT120408-MM FTGA0614 ETNA0511 TW20-100 TW20S 400M-L42 40 42 100 350 56 ZPET200M-MM ZPET200S-MM SPMT120408-MM FTGA0614 ETNA0511 TW20-100 TW20S 500M-S42 50 42 100 200 67 ZPET250M-MM ZPET250S-MM SPMT120408-MM FTGA0818 ETNA0511 TW25-100 TW20S 3 500M-L42 50 42 100 350 67 ZPET250M-MM ZPET250S-MM SPMT120408-MM FTGA0818 ETNA0511 TW25-100 TW20S Available inserts E25, E31 325
