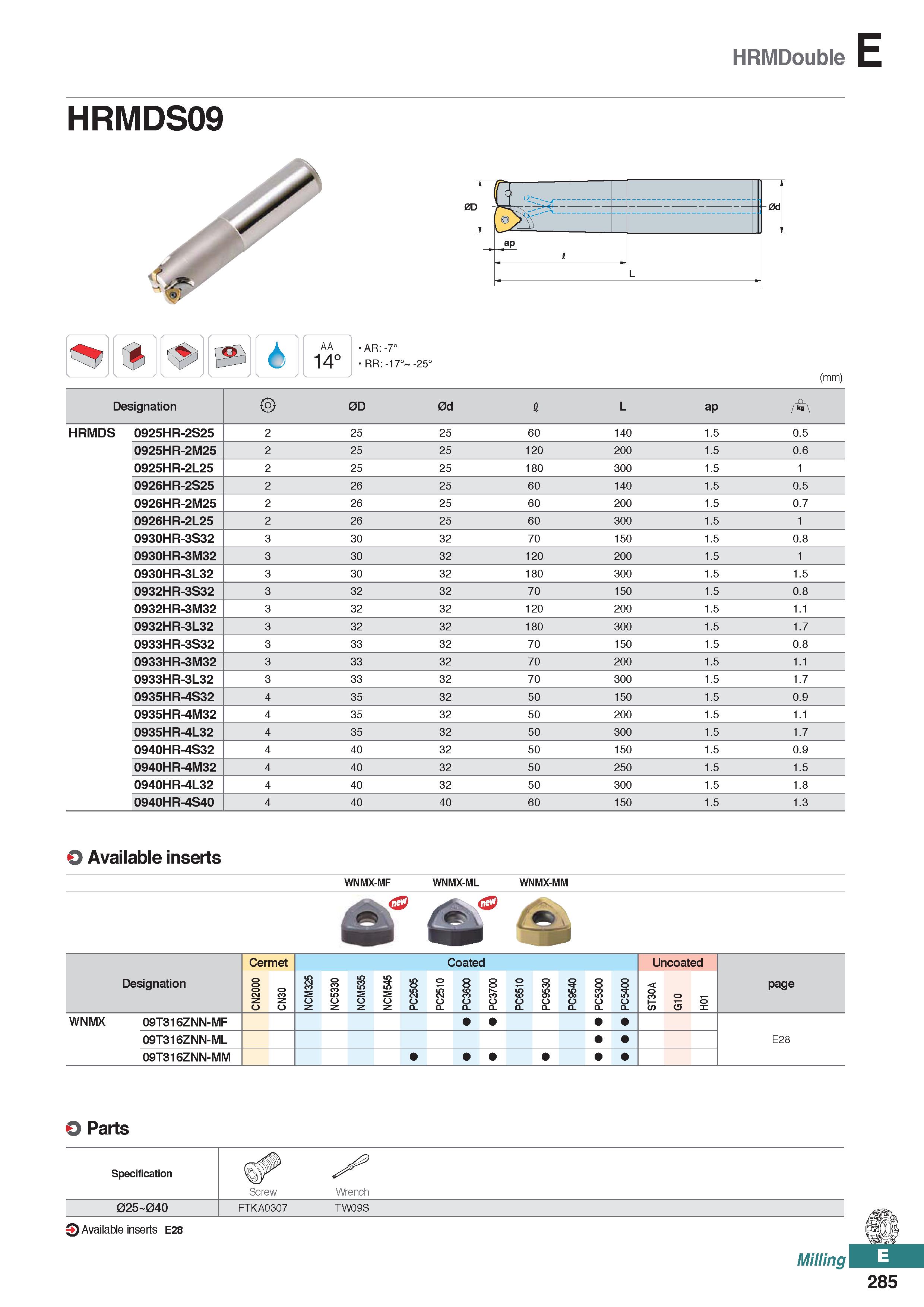

HRMDouble E HRMDS09 AA 14° AR:-7° RR:-17° -25° (mm) Designation 0D 0d I L ap HRMDS 0925HR-2S25 2 25 25 60 140 1.5 0.5 0925HR-2M25 2 25 25 120 200 1.5 0.6 0925HR-2L25 2 25 25 180 300 1.5 1 0926HR-2S25 2 26 25 60 140 1.5 0.5 0926HR-2M25 2 26 25 60 200 1.5 0.7 0926HR-2L25 2 26 25 60 300 1.5 1 0930HR-3S32 3 30 32 70 150 1.5 0.8 0930HR-3M32 3 30 32 120 200 1.5 1 0930HR-3L32 3 30 32 180 300 1.5 1.5 0932HR-3S32 3 32 32 70 150 1.5 0.8 0932HR-3M32 3 32 32 120 200 1.5 1.1 0932HR-3L32 3 32 32 180 300 1.5 1.7 0933HR-3S32 3 33 32 70 150 1.5 0.8 0933HR-3M32 3 33 32 70 200 1.5 1.1 0933HR-3L32 3 33 32 70 300 1.5 1.7 0935HR-4S32 4 35 32 50 150 1.5 0.9 0935HR-4M32 4 35 32 50 200 1.5 1.1 0935HR-4L32 4 35 32 50 300 1.5 1.7 0940HR-4S32 4 40 32 50 150 1.5 0.9 0940HR-4M32 4 40 32 50 250 1.5 1.5 0940HR-4L32 4 40 32 50 300 1.5 1.8 0940HR-4S40 4 40 40 60 150 1.5 1.3 O Available inserts WNMX-MF WNMX-ML WNMX-MM Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 WNMX 09T316ZNN-MF 09T316ZNN-ML E28 09T316ZNN-MM O Parts Specification Screw Wrench 025 04O FTKA0307 TW09S 9 Available inserts E28 Milling 285
