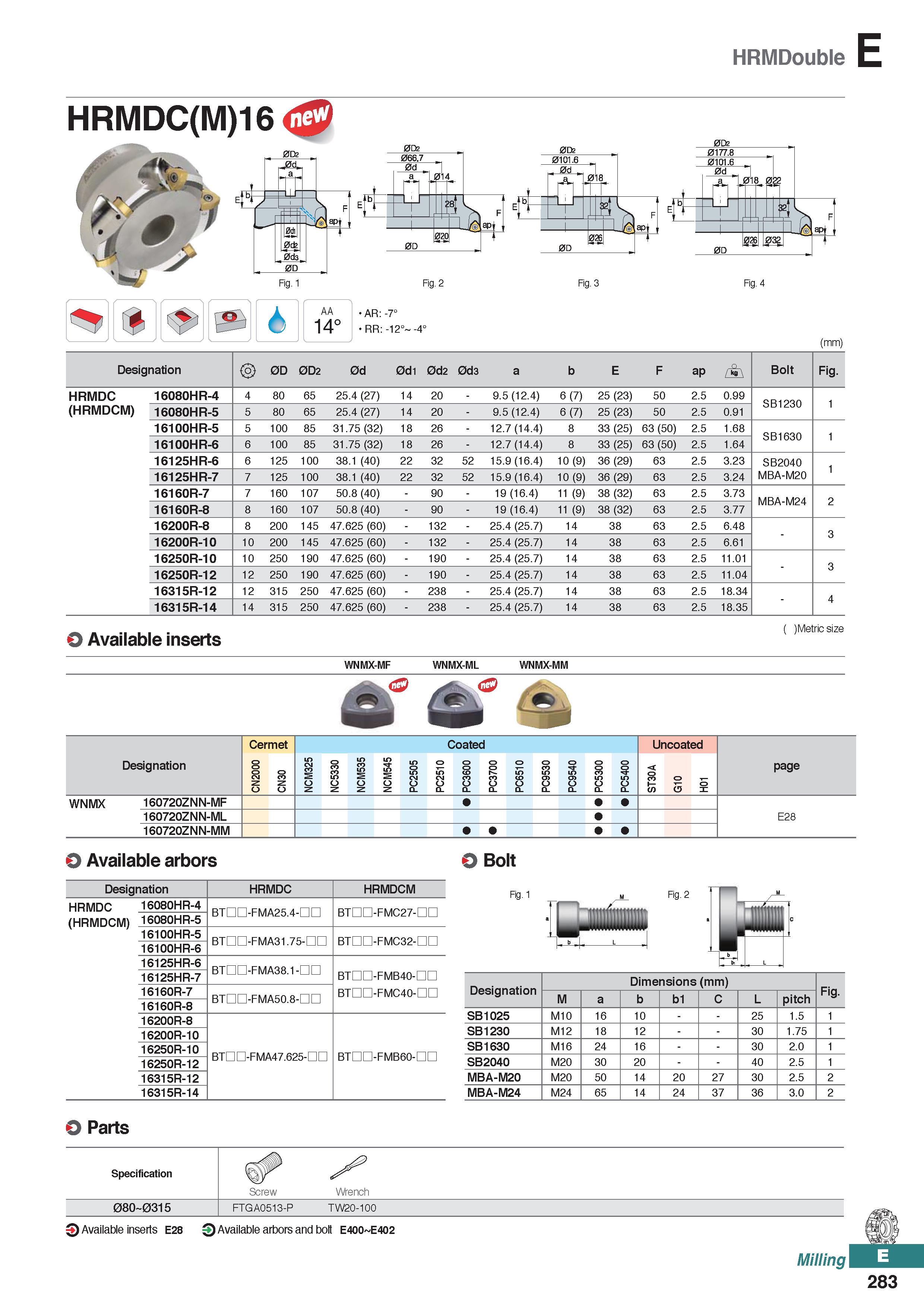

HRMDouble E HRMDC(M)16 JP 0P2 0P2 Fig. 1 6 AA 14° AR: -7° RR: -12° Fig. 2 -4° Fig. 3 Fig. 4 (mm) Designation 0D 0D2 0d 0d1 0d2 0d3 a b E F ap Bolt Fig. HRMDC 16080HR-4 4 80 65 25.4 (27) 14 20 - 9.5 (12.4) 6 (7) 25 (23) 50 2.5 0.99 SB1230 (HRMDCM) 16080HR-5 5 80 65 25.4 (27) 14 20 - 9.5 (12.4) 6 (7) 25 (23) 50 2.5 0.91 1 16100HR-5 5 100 85 31.75 (32) 18 26 - 12.7 (14.4) 8 33 (25) 63 (50) 2.5 1.68 SB1630 16100HR-6 6 100 85 31.75 (32) 18 26 - 12.7 (14.4) 8 33 (25) 63 (50) 2.5 1.64 1 16125HR-6 6 125 100 38.1 (40) 22 32 52 15.9 (16.4) 10 (9) 36 (29) 63 2.5 3.23 SB2040 16125HR-7 7 125 100 38.1 (40) 22 32 52 15.9 (16.4) 10 (9) 36 (29) 63 2.5 3.24 MBA-M20 1 16160R-7 7 160 107 50.8 (40) - 90 - 19 (16.4) 11 (9) 38 (32) 63 2.5 3.73 MBA-M24 2 16160R-8 8 160 107 50.8 (40) - 90 - 19 (16.4) 11 (9) 38 (32) 63 2.5 3.77 16200R-8 8 200 145 47.625 (60) - 132 - 25.4 (25.7) 14 38 63 2.5 6.48 3 16200R-10 10 200 145 47.625 (60) - 132 - 25.4 (25.7) 14 38 63 2.5 6.61 16250R-10 10 250 190 47.625 (60) - 190 - 25.4 (25.7) 14 38 63 2.5 11.01 3 16250R-12 12 250 190 47.625 (60) - 190 - 25.4 (25.7) 14 38 63 2.5 11.04 16315R-12 12 315 250 47.625 (60) - 238 - 25.4 (25.7) 14 38 63 2.5 18.34 4 16315R-14 14 315 250 47.625 (60) - 238 - 25.4 (25.7) 14 38 63 2.5 18.35 O Available inserts ( )Metric size WNMX-MF WNMX-ML WNMX-MM Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 WNMX 160720ZNN-MF 160720ZNN-ML E28 160720ZNN-MM O Available arbors O Bolt Designation HRMDC HRMDCM HRMDC 16080HR-4 BTHO-FMA25.4-DD BTDD-FMC27-DC (HRMDCM) 16°8°HR-5 16100HR-5 BTHD-FMA31.75-HD BTDD-FMC32-DC 16100HR-6 16125HR-6 BTHD-FMA38.1-DD BTDD-FMB40-DC BTDD-FMC40-DC 16125HR-7 16160R-7 BTHD-FMA50.8-DD 16160R-8 16200R-8 BTDD-FMA47.625-m BTDD-FMB60-DC 16200R-10 16250R-10 16250R-12 16315R-12 16315R-14 Fig. 1 Fig. 2 Designation Dimensions (mm) Fig. M a b b1 C L pitch SB1025 M10 16 10 25 1.5 1 SB1230 M12 18 12 30 1.75 1 SB1630 M16 24 16 30 2.0 1 SB2040 M20 30 20 40 2.5 1 MBA-M20 M20 50 14 20 27 30 2.5 2 MBA-M24 M24 65 14 24 37 36 3.0 2 O Parts Specification Screw Wrench 08O 0315 FTGA0513-P TW20-100 Q Available inserts E28 Q Available arbors and bolt E400 E402 Milling 283
