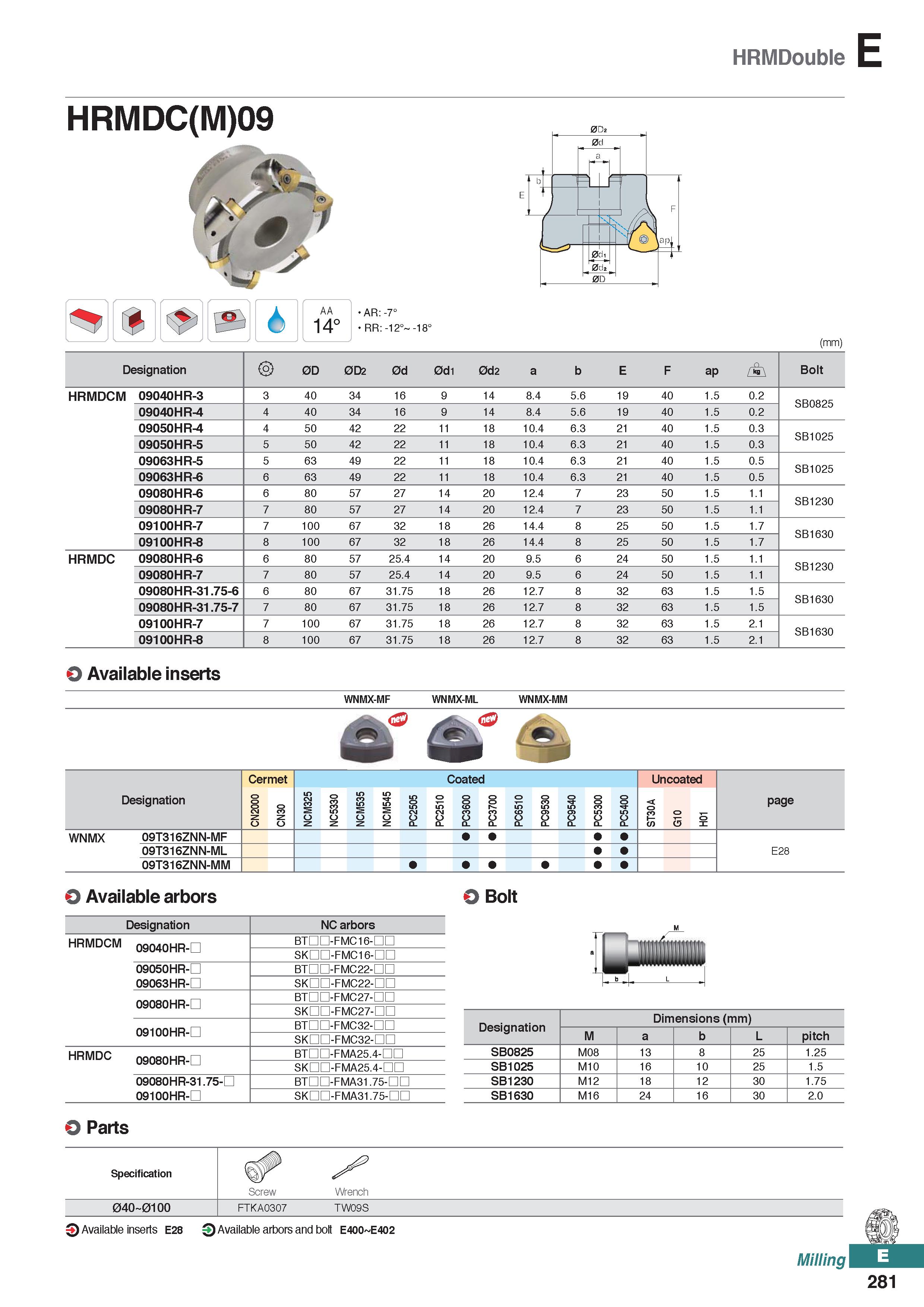

HRMDouble E HRMDC(M)09 (mm) Designation 0D 0D2 0d 0d1 0d2 a b E F ap Bolt HRMDCM 09040HR-3 3 40 34 16 9 14 8.4 5.6 19 40 1.5 0.2 SB0825 09040HR-4 4 40 34 16 9 14 8.4 5.6 19 40 1.5 0.2 09050HR-4 4 50 42 22 11 18 10.4 6.3 21 40 1.5 0.3 SB1025 09050HR-5 5 50 42 22 11 18 10.4 6.3 21 40 1.5 0.3 09063HR-5 5 63 49 22 11 18 10.4 6.3 21 40 1.5 0.5 SB1025 09063HR-6 6 63 49 22 11 18 10.4 6.3 21 40 1.5 0.5 09080HR-6 6 80 57 27 14 20 12.4 7 23 50 1.5 1.1 SB1230 09080HR-7 7 80 57 27 14 20 12.4 7 23 50 1.5 1.1 09100HR-7 7 100 67 32 18 26 14.4 8 25 50 1.5 1.7 SB1630 09100HR-8 8 100 67 32 18 26 14.4 8 25 50 1.5 1.7 HRMDC 09080HR-6 6 80 57 25.4 14 20 9.5 6 24 50 1.5 1.1 SB1230 09080HR-7 7 80 57 25.4 14 20 9.5 6 24 50 1.5 1.1 09080HR-31.75-6 6 80 67 31.75 18 26 12.7 8 32 63 1.5 1.5 SB1630 09080HR-31.75-7 7 80 67 31.75 18 26 12.7 8 32 63 1.5 1.5 09100HR-7 7 100 67 31.75 18 26 12.7 8 32 63 1.5 2.1 SB1630 09100HR-8 8 100 67 31.75 18 26 12.7 8 32 63 1.5 2.1 O Available inserts WNMX-MF WNMX-ML WNMX-MM Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 WNMX 09T316ZNN-MF 09T316ZNN-ML E28 09T316ZNN-MM O Available arbors O Bolt Designation NC arbors HRMDCM 09040HR-D BTDD-FMC16-nn SKHD-FMC16-HD 09050HR-D 09063HR-D BTDD-FMC22-nn SKHD-FMC22-HD 09080HR-D BTDD-FMC27-nn SKHD-FMC27-HD 09100HR-D BTDD-FMC32-nn SKHD-FMC32-HD HRMDC 09080HR-D BTDD-FMA25.4-nn SKHD-FMA25.4-HD 09080HR-31.75-D 09100HR-D BTDD-FMA31.75-nn SKHD-FMA31.75-HD Designation Dimensions (mm) M a b L pitch SB0825 M08 13 8 25 1.25 SB1025 M10 16 10 25 1.5 SB1230 M12 18 12 30 1.75 SB1630 M16 24 16 30 2.0 O Parts Specification Screw Wrench 04O 01OO FTKA0307 TW09S Q Available inserts E28 Q Available arbors and bolt E400 E402 Milling 281
