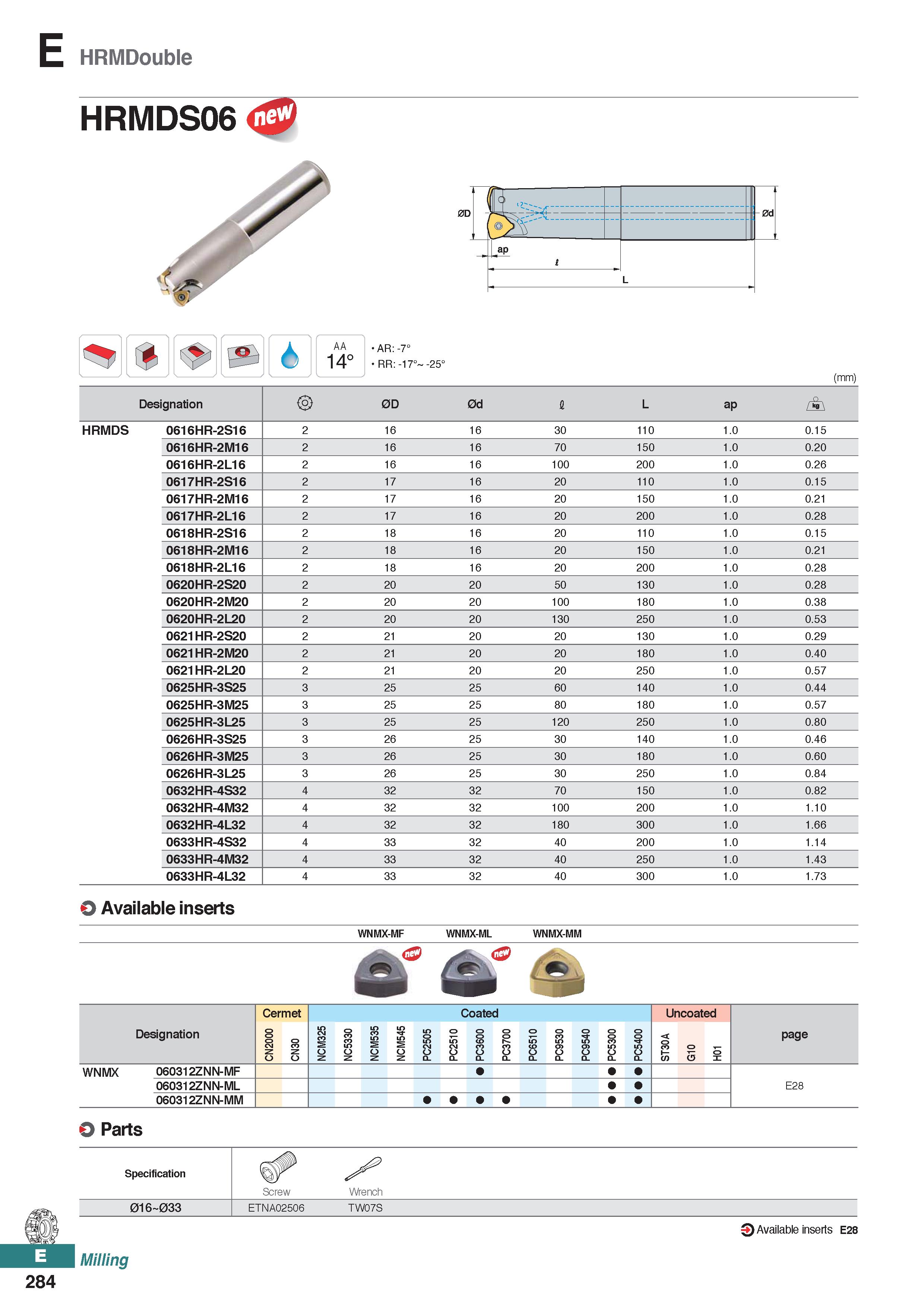

E HRMDouble HRMDS06 AA 14c AR:-7° RR:-17° -25° (mm) Designation 0D 0d I L ap f+\ HRMDS 0616HR-2S16 2 16 16 30 110 1.0 0.15 0616HR-2M16 2 16 16 70 150 1.0 0.20 0616HR-2L16 2 16 16 100 200 1.0 0.26 0617HR-2S16 2 17 16 20 110 1.0 0.15 0617HR-2M16 2 17 16 20 150 1.0 0.21 0617HR-2L16 2 17 16 20 200 1.0 0.28 0618HR-2S16 2 18 16 20 110 1.0 0.15 0618HR-2M16 2 18 16 20 150 1.0 0.21 0618HR-2L16 2 18 16 20 200 1.0 0.28 0620HR-2S20 2 20 20 50 130 1.0 0.28 0620HR-2M20 2 20 20 100 180 1.0 0.38 0620HR-2L20 2 20 20 130 250 1.0 0.53 0621HR-2S20 2 21 20 20 130 1.0 0.29 0621HR-2M20 2 21 20 20 180 1.0 0.40 0621HR-2L20 2 21 20 20 250 1.0 0.57 0625HR-3S25 3 25 25 60 140 1.0 0.44 0625HR-3M25 3 25 25 80 180 1.0 0.57 0625HR-3L25 3 25 25 120 250 1.0 0.80 0626HR-3S25 3 26 25 30 140 1.0 0.46 0626HR-3M25 3 26 25 30 180 1.0 0.60 0626HR-3L25 3 26 25 30 250 1.0 0.84 0632HR-4S32 4 32 32 70 150 1.0 0.82 0632HR-4M32 4 32 32 100 200 1.0 1.10 0632HR-4L32 4 32 32 180 300 1.0 1.66 0633HR-4S32 4 33 32 40 200 1.0 1.14 0633HR-4M32 4 33 32 40 250 1.0 1.43 0633HR-4L32 4 33 32 40 300 1.0 1.73 O Available inserts WNMX-MF WNMX-ML WNMX-MM Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 5 4 5 M C N PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 WNMX 060312ZNN-MF 060312ZNN-ML E28 060312ZNN-MM O Parts Specification Screw Wrench 016 033 ETNA02506 TW07S 9 Available inserts E28 Milling 284
