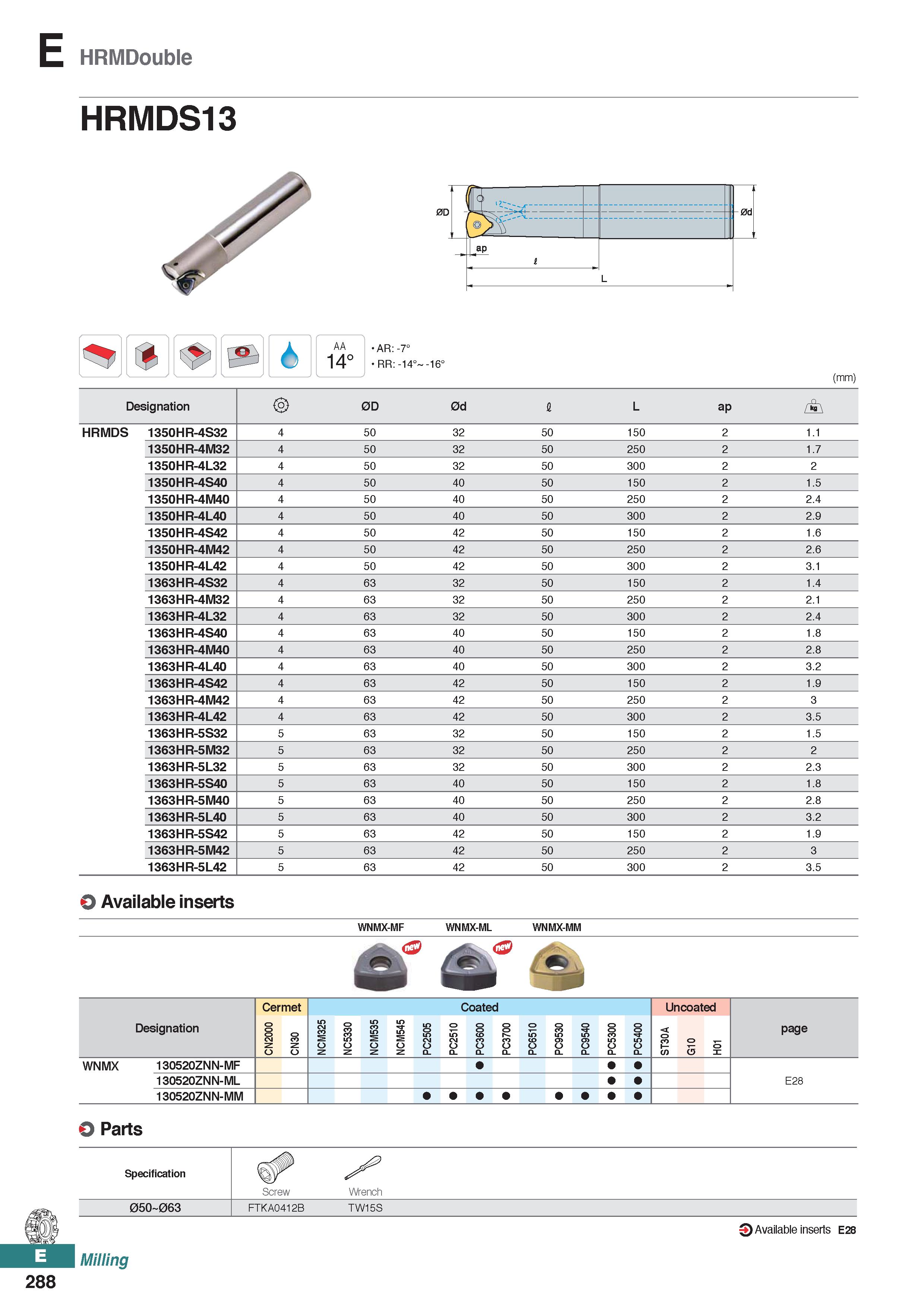

E HRMDouble AA 14° AR:-7° RR:-14° -16° (mm) Designation 0D 0d 1 L ap f \ HRMDS 1350HR-4S32 4 50 32 50 150 2 1.1 1350HR-4M32 4 50 32 50 250 2 1.7 1350HR-4L32 4 50 32 50 300 2 2 1350HR-4S40 4 50 40 50 150 2 1.5 1350HR-4M40 4 50 40 50 250 2 2.4 1350HR-4L40 4 50 40 50 300 2 2.9 1350HR-4S42 4 50 42 50 150 2 1.6 1350HR-4M42 4 50 42 50 250 2 2.6 1350HR-4L42 4 50 42 50 300 2 3.1 1363HR-4S32 4 63 32 50 150 2 1.4 1363HR-4M32 4 63 32 50 250 2 2.1 1363HR-4L32 4 63 32 50 300 2 2.4 1363HR-4S40 4 63 40 50 150 2 1.8 1363HR-4M40 4 63 40 50 250 2 2.8 1363HR-4L40 4 63 40 50 300 2 3.2 1363HR-4S42 4 63 42 50 150 2 1.9 1363HR-4M42 4 63 42 50 250 2 3 1363HR-4L42 4 63 42 50 300 2 3.5 1363HR-5S32 5 63 32 50 150 2 1.5 1363HR-5M32 5 63 32 50 250 2 2 1363HR-5L32 5 63 32 50 300 2 2.3 1363HR-5S40 5 63 40 50 150 2 1.8 1363HR-5M40 5 63 40 50 250 2 2.8 1363HR-5L40 5 63 40 50 300 2 3.2 1363HR-5S42 5 63 42 50 150 2 1.9 1363HR-5M42 5 63 42 50 250 2 3 1363HR-5L42 5 63 42 50 300 2 3.5 O Available inserts WNMX-MF WNMX-ML WNMX-MM Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 WNMX 130520ZNN-MF 130520ZNN-ML E28 130520ZNN-MM O Parts Specification Screw Wrench 05O 063 FTKA0412B TW15S Milling 0 Available inserts E28 288
