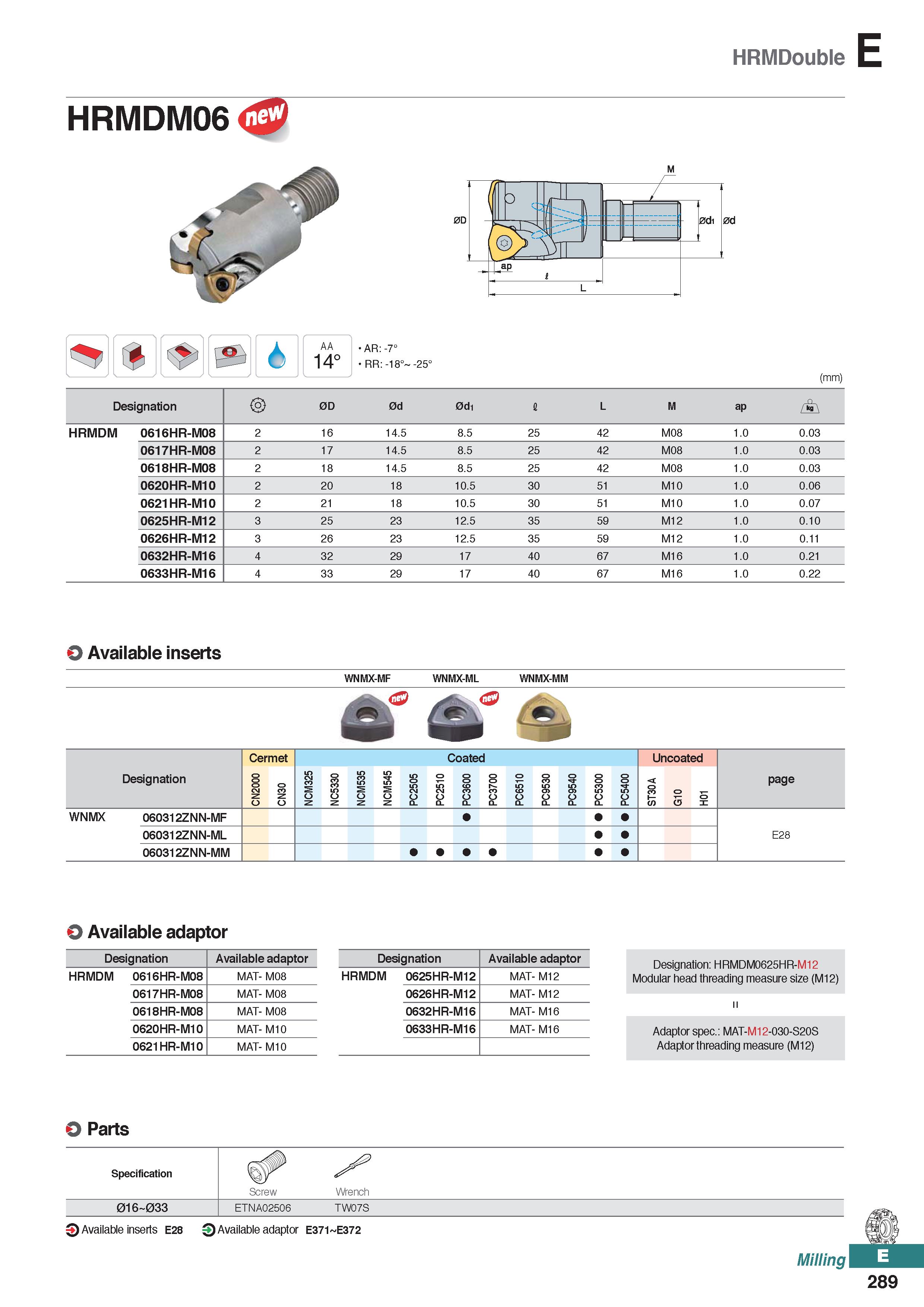

747 Каталог KORLOY 2020 Инструмент и оснастка для станков по металлу Стр.E289

Каталог KORLOY 2020 Инструмент для станков по металлу Стр. E289 0747 Lab2u

HRMDouble E HRMDM06 AA 14° AR:-7° RR:-18° -25° (mm) Designation 0D 0d 0d1 I L M ap HRMDM 0616HR-M08 2 16 14.5 8.5 25 42 M08 1.0 0.03 0617HR-M08 2 17 14.5 8.5 25 42 M08 1.0 0.03 0618HR-M08 2 18 14.5 8.5 25 42 M08 1.0 0.03 0620HR-M10 2 20 18 10.5 30 51 M10 1.0 0.06 0621HR-M10 2 21 18 10.5 30 51 M10 1.0 0.07 0625HR-M12 3 25 23 12.5 35 59 M12 1.0 0.10 0626HR-M12 3 26 23 12.5 35 59 M12 1.0 0.11 0632HR-M16 4 32 29 17 40 67 M16 1.0 0.21 0633HR-M16 4 33 29 17 40 67 M16 1.0 0.22 O Available inserts WNMX-MF WNMX-ML WNMX-MM Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 5 4 5 M C N PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 WNMX 060312ZNN-MF 060312ZNN-ML E28 060312ZNN-MM O Available adaptor Designation Available adaptor Designation Available adaptor Designation: HRMDM0625HR-M12 Modular head threading measure size (M12) HRMDM 0616HR-M08 MAT- M08 HRMDM 0625HR-M12 MAT- M12 0617HR-M08 MAT- M08 0626HR-M12 MAT- M12 0618HR-M08 MAT- M08 0632HR-M16 MAT- M16 ii 0620HR-M10 MAT- M10 0633HR-M16 MAT- M16 Adaptor spec.: MAT-M12-030-S20S 0621HR-M10 MAT- M10 Adaptor threading measure (M12) O Parts Specification Screw Wrench 016 033 ETNA02506 TW07S Q Available inserts E28 0 Available adaptor E371 E372 Milling 289
