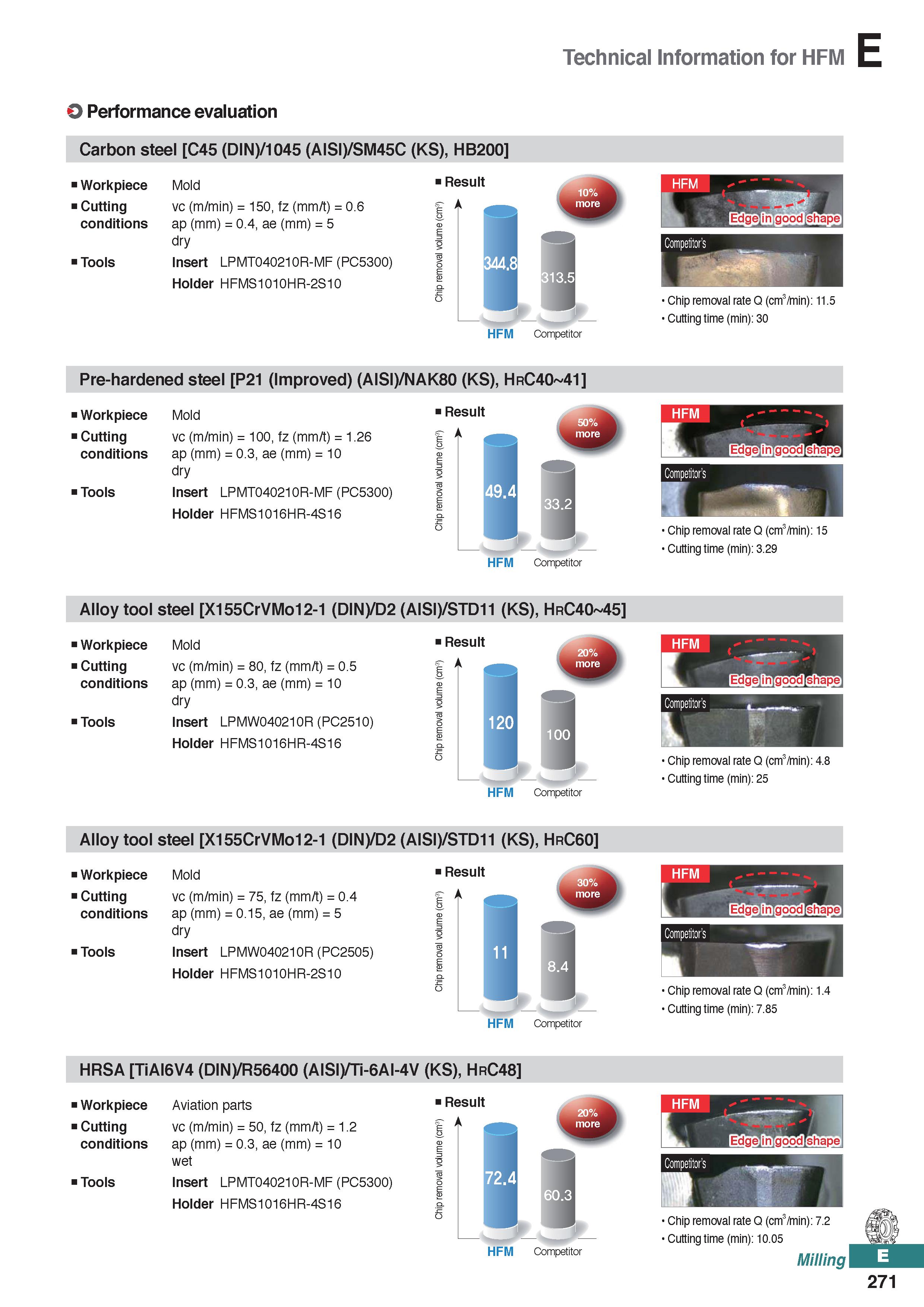

Technical Information for HFM O Performance evaluation Carbon steel C45 (DIN)/1045 (AISI)/SM45C (KS), HB200 Workpiece Mold Cutting vc (m/min) = 150, fz (mm/t) = 0.6 conditions ap (mm) = 0.4, ae (mm) = 5 dry Tools Insert LPMT040210R-MF (PC5300) Holder HFMS1010HR-2S10 Result 3 A o, E HFM Competitor EdgeJn good shape Chip removal rate Q (cm3/min): 11.5 Cutting time (min): 30 Pre-hardened steel P21 (Improved) (AISI)/NAK80 (KS), HrC40 41 Workpiece Mold Cutting vc (m/min) = 100, fz (mm/t) = 1.26 conditions ap (mm) = 0.3, ae (mm) = 10 dry Tools Insert LPMT040210R-MF (PC5300) Holder HFMS1016HR-4S16 Result 3 A o, E Competitor’s i fell HFM Competitor Chip removal rate Q (cm3/min): 15 Cutting time (min): 3.29 Alloy tool steel X155CrVMo12-1 (DIN)/D2 (AISI)/STD11 (KS), HrC40 45 Workpiece Mold Cutting vc (m/min) = 80, fz (mm/t) = 0.5 conditions ap (mm) = 0.3, ae (mm) = 10 dry Tools Insert LPMW040210R (PC2510) Holder HFMS1016HR-4S16 Result 3 A o, E Competitor’s r It r HFM Competitor Chip removal rate Q (cm3/min): 4.8 Cutting time (min): 25 Alloy tool steel X155CrVMo12-1 (DIN)/D2 (AISI)/STD11 (KS), HrC60 Workpiece Mold Cutting vc (m/min) = 75, fz (mm/t) = 0.4 conditions ap (mm) = 0.15, ae (mm) = 5 dry Tools Insert LPMW040210R (PC2505) Holder HFMS1010HR-2S10 Result 3 A o, E Chip removal rate Q (cm3/min): 1.4 Cutting time (min): 7.85 HFM Competitor HRSA TiAl6V4 (DIN)/R56400 (AISI)/Ti-6Al-4V (KS), HrC48 Workpiece Cutting conditions Tools Aviation parts vc (m/min) = 50, fz (mm/t) = 1.2 ap (mm) = 0.3, ae (mm) = 10 wet Insert LPMT040210R-MF (PC5300) Holder HFMS1016HR-4S16 Result 3 A o, 0 E HFM Competitor HFM I ’ 1 V EdgeJinTgood shape Compel H tor’s i Chip removal rate Q (cm3/min): 7.2 Cutting time (min): 10.05 Milling 271 HFM
