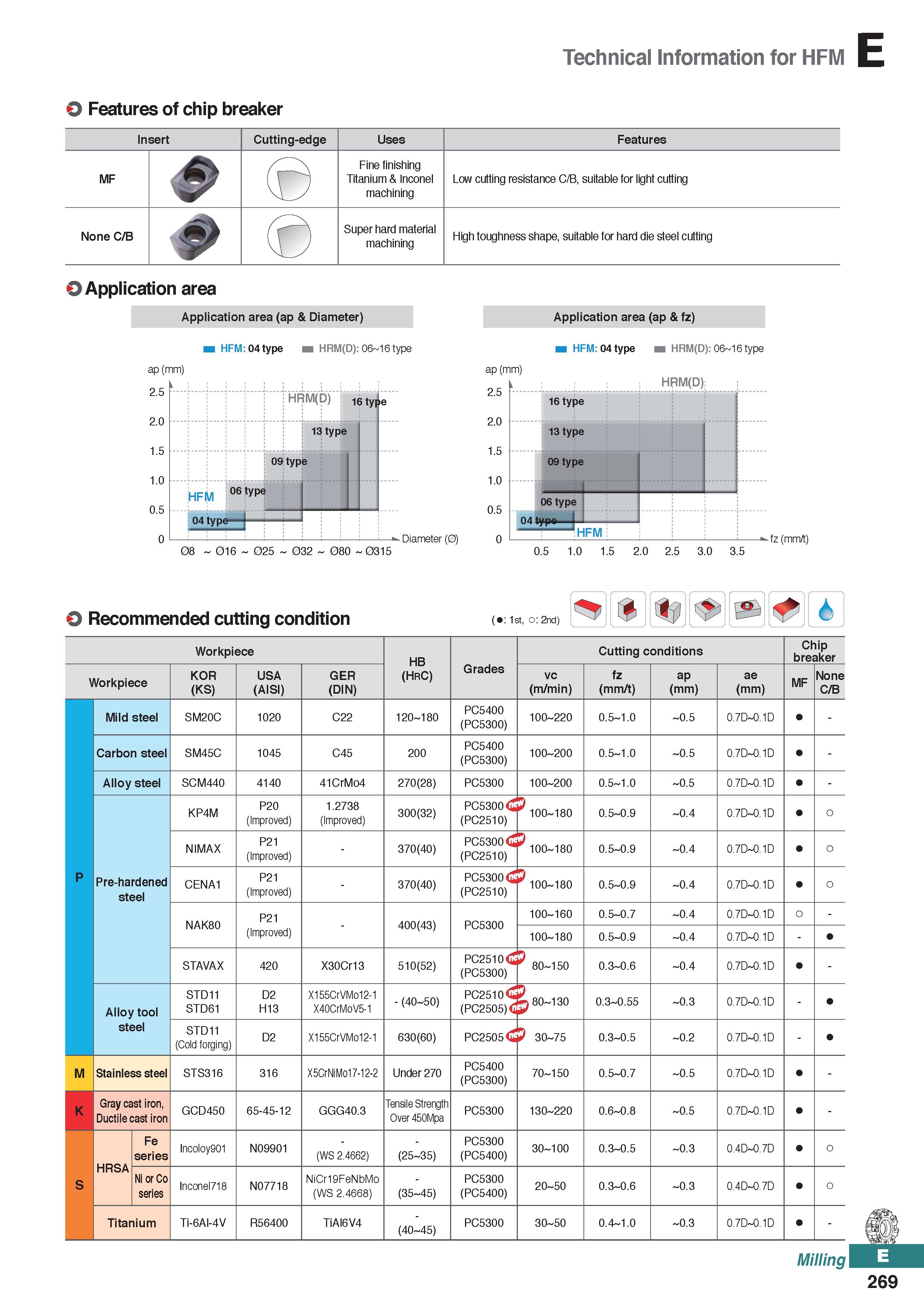

Technical Information for HFM O Features of chip breaker Insert Cutting-edge Uses Features MF Fine finishing Titanium & Inconel machining Low cutting resistance C/B, suitable for light cutting None C/B P Super hard material machining High toughness shape, suitable for hard die steel cutting O Application area Application area (ap & Diameter) Application area (ap & fz) HFM: 04 type HRM(D): 06 16 type HFM: 04 type ap (mm) 2.5 2.0 1.5 1.0 0.5 0 HRM(D) 16 type 13 type 09 type HFM 06,ype 04 type 08 016 025 032 080 0315 Diameter (0) ap (mm) 2.5 2.0 1.5 1.0 0.5 0 HRM(D): 06 16 type HRM(D) 16 type 13 type j 09 type 1 06 type 04 typ \ ' Hrlvl 0.5 1.0 1.5 2.0 2.5 3.0 3.5 -fz (mm/t) O Recommended cutting condition ( : 1st, o: 2nd) Workpiece HB (HrC) Grades Cutting conditions Chip breaker Workpiece KOR (KS) USA (AISI) GER (DIN) vc (m/min) fz (mm/t) ap (mm) ae (mm) MF None C/B P Mild steel SM20C 1020 C22 120 180 PC5400 (PC5300) 100 220 0.5 1.0 0.5 0.7D 0.1D - Carbon steel SM45C 1045 C45 200 PC5400 (PC5300) 100 200 0.5 1.0 0.5 0.7D 0.1D - Alloy steel SCM440 4140 41CrMo4 270(28) PC5300 100 200 0.5 1.0 0.5 0.7D 0.1D - Pre-hardened steel KP4M P20 (Improved) 1.2738 (Improved) 300(32) PC5300 (PC2510) h 100 180 0.5 0.9 0.4 0.7D 0.1D o NIMAX P21 (Improved) - 370(40) PC5300 (PC2510) b 100 180 0.5 0.9 0.4 0.7D 0.1D o CENA1 P21 (Improved) - 370(40) PC5300 (PC2510) b 100 180 0.5 0.9 0.4 0.7D 0.1D o NAK80 P21 (Improved) - 400(43) PC5300 100 160 0.5 0.7 0.4 0.7D 0.1D o - 100 180 0.5 0.9 0.4 0.7D 0.1D - STAVAX 420 X30Cr13 510(52) PC2510 (PC5300) b 80 150 0.3 0.6 0.4 0.7D 0.1D - Alloy tool steel STD11 STD61 D2 H13 X155CrVMo12-1 X40CrMoV5-1 - (40 50) PC2510 (PC2505) b 80 130 0.3 0.55 0.3 0.7D 0.1D - STD11 (Cold forging) D2 X155CrVMo12-1 630(60) PC2505 30 75 0.3 0.5 0.2 0.7D 0.1D - M Stainless steel STS316 316 X5CrNiMo17-12-2 Under 270 PC5400 (PC5300) 70 150 0.5 0.7 0.5 0.7D 0.1D - K Gray cast iron, Ductile cast iron GCD450 65-45-12 GGG40.3 Tensile Strength Over 450Mpa PC5300 130 220 0.6 0.8 0.5 0.7D 0.1D - S HRSA Fe series Incoloy901 N09901 (WS 2.4662) (25 35) PC5300 (PC5400) 30 100 0.3 0.5 0.3 0.4D 0.7D o Ni or Co series Inconel718 N07718 NiCr19FeNbMo (WS 2.4668) (35 45) PC5300 (PC5400) 20 50 0.3 0.6 0.3 0.4D 0.7D o Titanium Ti-6Al-4V R56400 TiAl6V4 (40 45) PC5300 30 50 0.4 1.0 0.3 0.7D 0.1D - Milling 269
