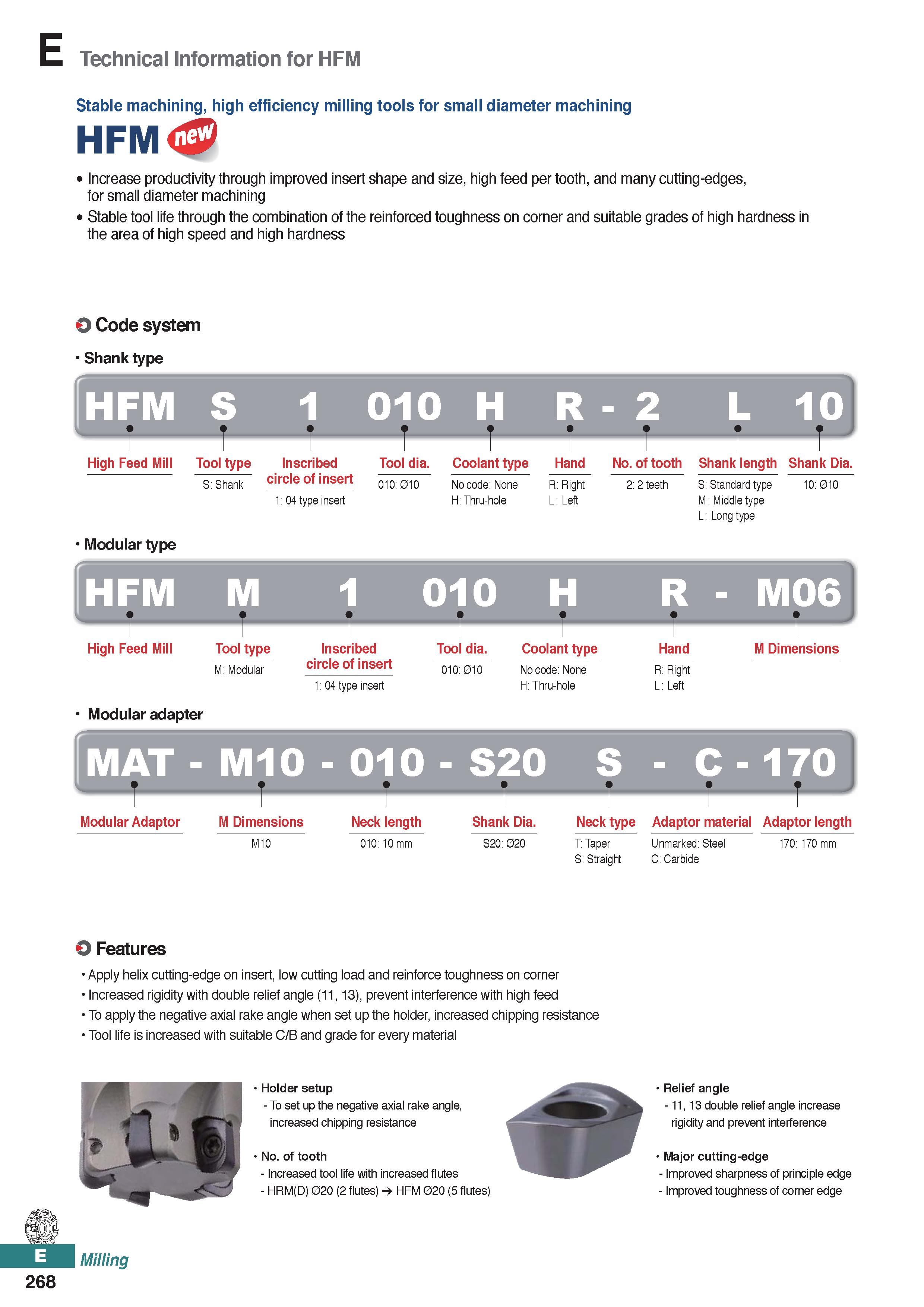

Technical Information for HFM Stable machining, high efficiency milling tools for small diameter machining HFM Increase productivity through improved insert shape and size, high feed per tooth, and many cutting-edges, for small diameter machining Stable tool life through the combination of the reinforced toughness on corner and suitable grades of high hardness in the area of high speed and high hardness O Code system Shank type HFM S 1 010 H R - 2 L 10 + T + T T S: Shank High Feed Mill Tool type Inscribed Tool dia. Coolant type Hand circle of insert 010: 010 No code: None R: Right 1: 04 type insert H: Thru-hole L: Left Modular type No. of tooth 2: 2 teeth Shank length Shank Dia. S: Standard type 10: 010 M: Middle type L: Long type HFM M 010 H High Feed Mill Modular adapter Tool type M: Modular Inscribed circle of insert 1: 04 type insert Tool dia. 010: 010 Coolant type No code: None H: Thru-hole Hand R: Right L: Left M Dimensions MAT - M10 - 010 - S20 S - C - 170 Modular Adaptor M Dimensions M10 Neck length 010: 10 mm Shank Dia. S20: 020 Neck type Adaptor material Adaptor length T: Taper Unmarked: Steel 170: 170 mm S: Straight C: Carbide 0 Features Apply helix cutting-edge on insert, low cutting load and reinforce toughness on corner Increased rigidity with double relief angle (11, 13), prevent interference with high feed To apply the negative axial rake angle when set up the holder, increased chipping resistance Tool life is increased with suitable C/B and grade for every material f ft > yJI w Milling Holder setup - To set up the negative axial rake angle, increased chipping resistance No. of tooth - Increased tool life with increased flutes - HRM(D) 020 (2 flutes) HFM 020 (5 flutes) Relief angle - 11, 13 double relief angle increase rigidity and prevent interference Major cutting-edge - Improved sharpness of principle edge - Improved toughness of corner edge 268
