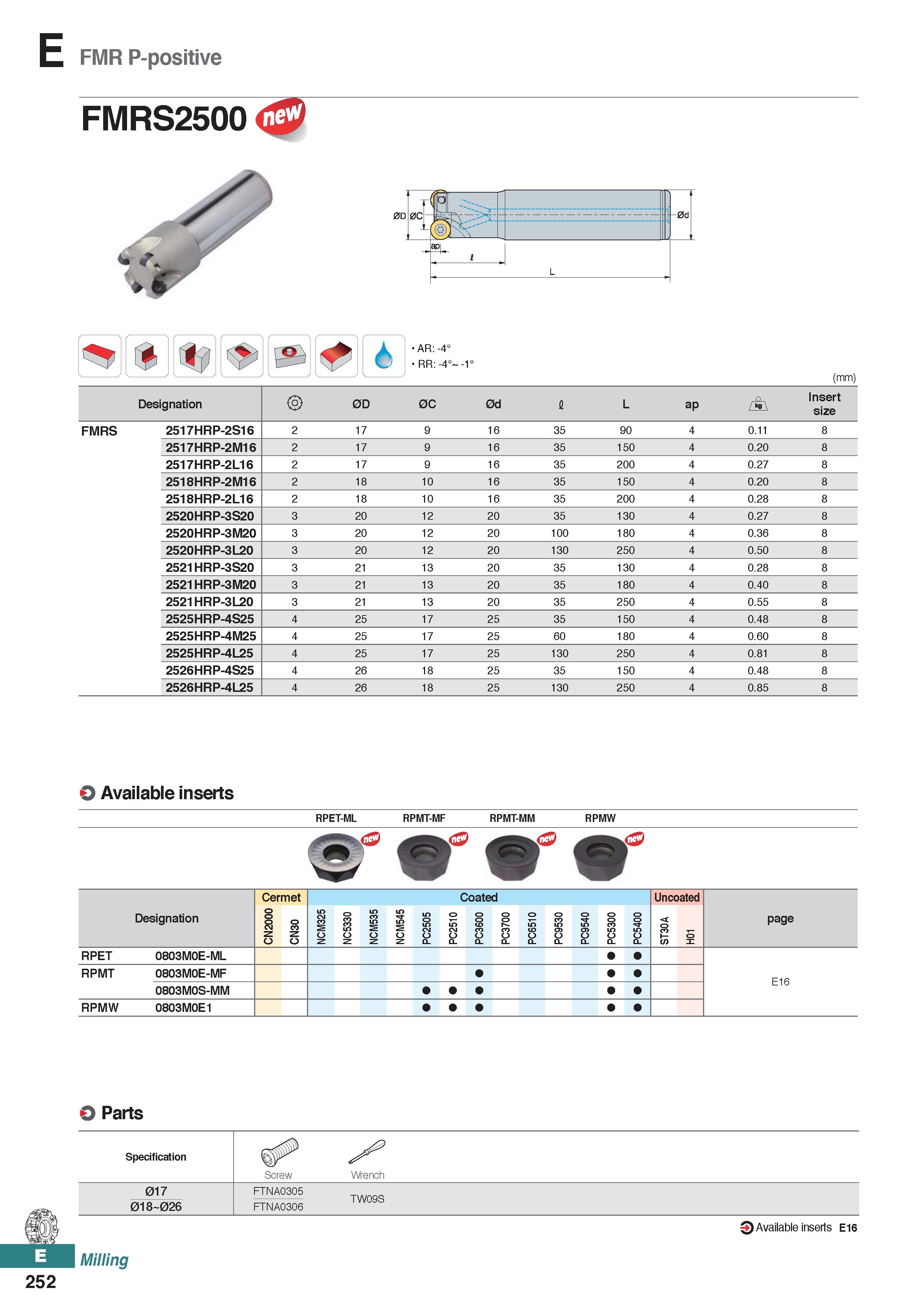

FMR P-positive FMRS2500 AR:-4° RR:-4° -1° (mm) Designation 0D 0C 0d I L ap Insert size FMRS 2517HRP-2S16 2 17 9 16 35 90 4 0.11 8 2517HRP-2M16 2 17 9 16 35 150 4 0.20 8 2517HRP-2L16 2 17 9 16 35 200 4 0.27 8 2518HRP-2M16 2 18 10 16 35 150 4 0.20 8 2518HRP-2L16 2 18 10 16 35 200 4 0.28 8 2520HRP-3S20 3 20 12 20 35 130 4 0.27 8 2520HRP-3M20 3 20 12 20 100 180 4 0.36 8 2520HRP-3L20 3 20 12 20 130 250 4 0.50 8 2521HRP-3S20 3 21 13 20 35 130 4 0.28 8 2521HRP-3M20 3 21 13 20 35 180 4 0.40 8 2521HRP-3L20 3 21 13 20 35 250 4 0.55 8 2525HRP-4S25 4 25 17 25 35 150 4 0.48 8 2525HRP-4M25 4 25 17 25 60 180 4 0.60 8 2525HRP-4L25 4 25 17 25 130 250 4 0.81 8 2526HRP-4S25 4 26 18 25 35 150 4 0.48 8 2526HRP-4L25 4 26 18 25 130 250 4 0.85 8 O Available inserts RPET-ML RPMT-MF RPMT-MM RPMW Cermet Coated Uncoated Designation 1 8 NN 50 g 8 S in CC z z NCM535 NCM545 50 01 in in CC CL Q. 67 33 CC CL Q 0 51 6 C P 0 3 5 9 C CL 0 4 5 9 C Q 0 0 3 5 C P 0 0 4 5 C CL A o 3 T S 01 X page RPET 0803M0E-ML E16 RPMT 0803M0E-MF 0803M0S-MM RPMW 0803M0E1 O Parts Specification Screw Wrench 017 018 026 FTNA0305 FTNA0306 TW09S Q Available inserts E16 Milling 252
