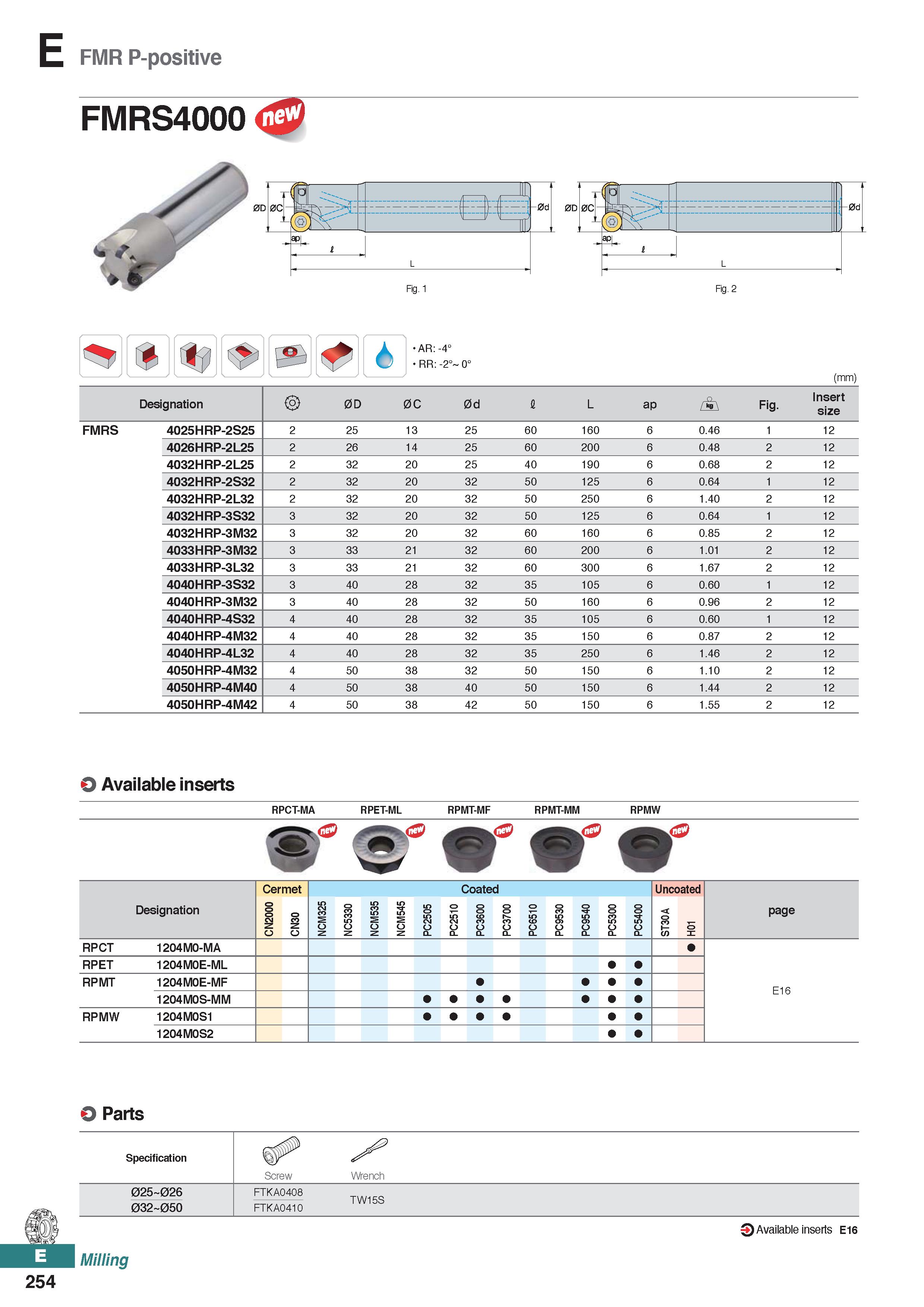

FMR P-positive FMRS4000 AR:-4° RR: -2° 0° (mm) Designation 0D 0C 0d I L ap Fig. Insert size FMRS 4025HRP-2S25 2 25 13 25 60 160 6 0.46 1 12 4026HRP-2L25 2 26 14 25 60 200 6 0.48 2 12 4032HRP-2L25 2 32 20 25 40 190 6 0.68 2 12 4032HRP-2S32 2 32 20 32 50 125 6 0.64 1 12 4032HRP-2L32 2 32 20 32 50 250 6 1.40 2 12 4032HRP-3S32 3 32 20 32 50 125 6 0.64 1 12 4032HRP-3M32 3 32 20 32 60 160 6 0.85 2 12 4033HRP-3M32 3 33 21 32 60 200 6 1.01 2 12 4033HRP-3L32 3 33 21 32 60 300 6 1.67 2 12 4040HRP-3S32 3 40 28 32 35 105 6 0.60 1 12 4040HRP-3M32 3 40 28 32 50 160 6 0.96 2 12 4040HRP-4S32 4 40 28 32 35 105 6 0.60 1 12 4040HRP-4M32 4 40 28 32 35 150 6 0.87 2 12 4040HRP-4L32 4 40 28 32 35 250 6 1.46 2 12 4050HRP-4M32 4 50 38 32 50 150 6 1.10 2 12 4050HRP-4M40 4 50 38 40 50 150 6 1.44 2 12 4050HRP-4M42 4 50 38 42 50 150 6 1.55 2 12 O Available inserts RPCT-MA RPET-ML RPMT-MF RPMT-MM RPMW & , =>, Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 NCM535 5 4 5 M C N PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A H01 page RPCT 1204M0-MA RPET 1204M0E-ML RPMT 1204M0E-MF E16 1204M0S-MM RPMW 1204M0S1 1204M0S2 O Parts Specification Screw Wrench 025 026 032 05O FTKA0408 FTKA0410 TW15S 0 Available inserts E16 Milling 254
