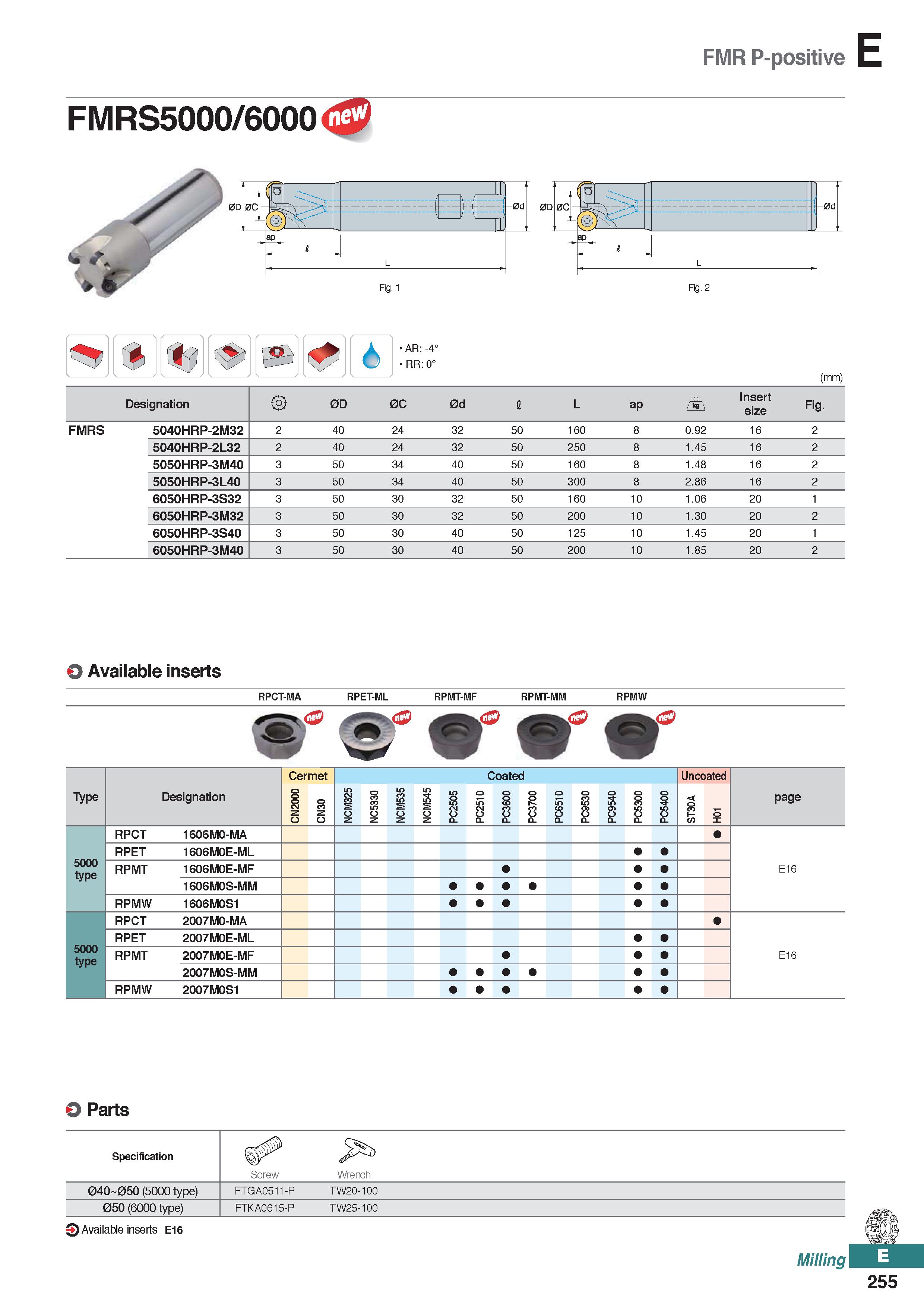

FMR P-positive FMRS5000/6000 Fig. 1 Fig. 2 AR: -4° RR: 0° (mm) Designation 0D 0C 0d I L ap / \ Insert size Fig. FMRS 5040HRP-2M32 2 40 24 32 50 1 60 8 0.92 16 2 5040HRP-2L32 2 40 24 32 50 250 8 1 .45 16 2 5050HRP-3M40 3 50 34 40 50 1 60 8 1 .48 16 2 5050HRP-3L40 3 50 34 40 50 300 8 2.86 16 2 6050HRP-3S32 3 50 30 32 50 1 60 10 1.06 20 1 6050HRP-3M32 3 50 30 32 50 200 10 1.30 20 2 6050HRP-3S40 3 50 30 40 50 1 25 10 1.45 20 1 6050HRP-3M40 3 50 30 40 50 200 10 1.85 20 2 O Available inserts RPCT-MA RPET-ML RPMT-MF RPMT-MM RPMW Cermet Coated Uncoated Type Designation CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A H01 page RPCT 1606M0-MA 5000 type RPET 1606M0E-ML RPMT 1606M0E-MF E16 1606M0S-MM RPMW 1606M0S1 RPCT 2007M0-MA 5000 type RPET 2007M0E-ML RPMT 2007M0E-MF E16 2007M0S-MM RPMW 2007M0S1 O Parts Specification Screw Wrench 04O 05O (5000 type) FTGA0511-P TW20-100 05O (6000 type) FTKA0615-P TW25-100 9 Available inserts E16 Milling 255
