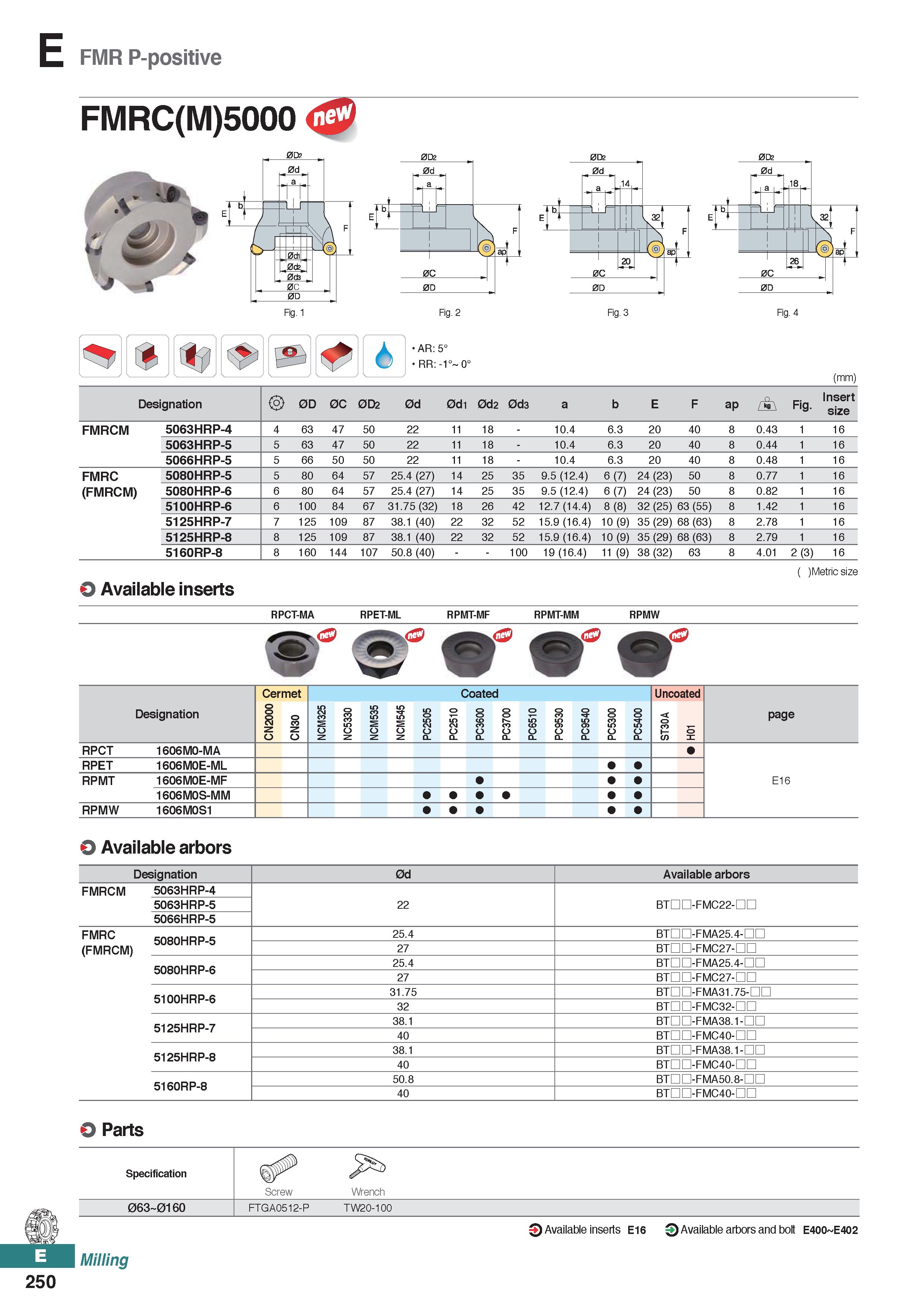

FMR P-positive FMRC(M)5000 0D2 Fig. 2 AR:5° RR:-1° 0° Fig. 4 (mm) Designation 0D 0C 0D2 0d 0d1 0d2 0d3 a b E F ap r+\ Fig. Insert size FMRCM 5063HRP-4 4 63 47 50 22 11 18 - 10.4 6.3 20 40 8 0.43 1 16 5063HRP-5 5 63 47 50 22 11 18 - 10.4 6.3 20 40 8 0.44 1 16 5066HRP-5 5 66 50 50 22 11 18 - 10.4 6.3 20 40 8 0.48 1 16 FMRC 5080HRP-5 5 80 64 57 25.4 (27) 14 25 35 9.5 (12.4) 6 (7) 24 (23) 50 8 0.77 1 16 (FMRCM) 5080HRP-6 6 80 64 57 25.4 (27) 14 25 35 9.5 (12.4) 6 (7) 24 (23) 50 8 0.82 1 16 5100HRP-6 6 100 84 67 31.75 (32) 18 26 42 12.7 (14.4) 8 (8) 32 (25) 63 (55) 8 1.42 1 16 5125HRP-7 7 125 109 87 38.1 (40) 22 32 52 15.9 (16.4) 10 (9) 3) CO 8 6 9) (2 5 3 8 2.78 1 16 5125HRP-8 8 125 109 87 38.1 (40) 22 32 52 15.9 (16.4) 10 (9) 35 (29) 68 (63) 8 2.79 1 16 5160RP-8 8 160 144 107 50.8 (40) 100 19 (16.4) 11 (9) 38 (32) 63 8 4.01 2 (3) 16 O Available inserts ( )Metric size RPCT-MA RPET-ML RPMT-MF RPMT-MM RPMW Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A H01 RPCT 1606M0-MA RPET 1606M0E-ML RPMT 1606M0E-MF E16 1606M0S-MM RPMW 1606M0S1 O Available arbors Designation 0d Available arbors FMRCM 5063HRP-4 22 BTDD-FMC22-DC 5063HRP-5 5066HRP-5 FMRC 5080HRP-5 (FMRCM) 25.4 BTDD-FMA25.4-nn 27 BTDD-FMC27-nn 5080HRP-6 25.4 BTDD-FMA25.4-nn 27 BTDD-FMC27-nn 5100HRP-6 31.75 BTDD-FMA31.75-nn 32 BTDD-FMC32-nn 5125HRP-7 38.1 BTDD-FMA38.1-nn 40 BTDD-FMC40-nn 5125HRP-8 38.1 BTDD-FMA38.1-nn 40 BTDD-FMC40-nn 5160RP-8 50.8 BTDD-FMA50.8-nn 40 BTDD-FMC40-nn O Parts Specification Screw Wrench 063 016O FTGA0512-P TW20-100 Milling Q Available inserts E16 O Available arbors and bolt E400 E402 250
