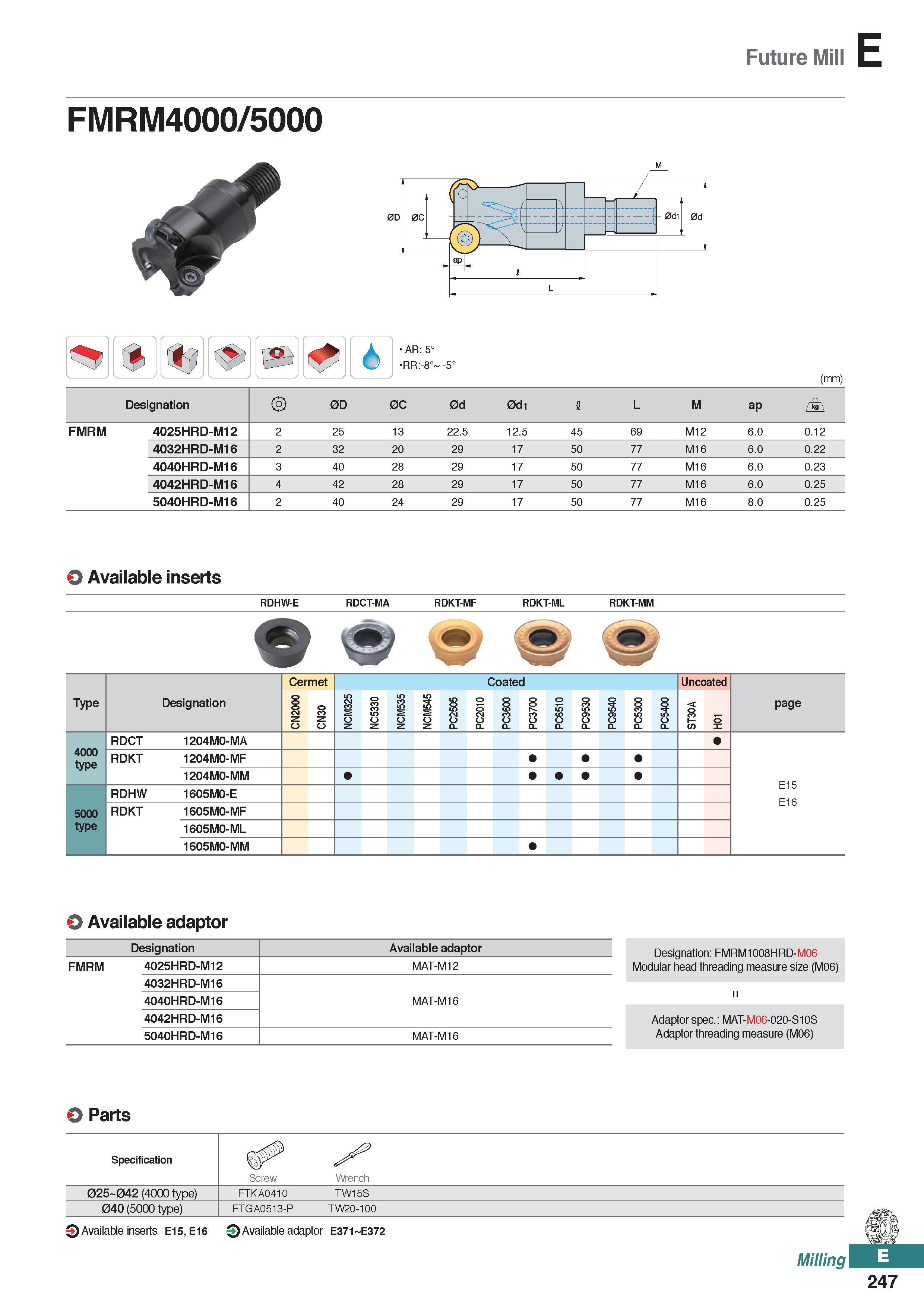

Future Mill FMRM4000/5000 AR: 5° RR:-8° -5° (mm) Designation 0D 0C 0d 0d1 I L M ap r>9\ FMRM 4025HRD-M12 2 25 13 22.5 12.5 45 69 M12 6.0 0.12 4032HRD-M16 2 32 20 29 17 50 77 M16 6.0 0.22 4040HRD-M16 3 40 28 29 17 50 77 M16 6.0 0.23 4042HRD-M16 4 42 28 29 17 50 77 M16 6.0 0.25 5040HRD-M16 2 40 24 29 17 50 77 M16 8.0 0.25 Available inserts RDHW-E RDCT-MA RDKT-MF RDKT-ML RDKT-MM Cermet Coated Uncoated Type Designation CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 0 01 2 C CL PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A H01 page 4000 type RDCT 1204M0-MA RDKT 1204M0-MF 1204M0-MM E15 E16 RDHW 1605M0-E 5000 RDKT 1605M0-MF type 1605M0-ML 1605M0-MM O Available adaptor Designation Available adaptor Designation: FMRM1008HRD-M06 Modular head threading measure size (M06) FMRM 4025HRD-M12 MAT-M12 4032HRD-M16 4040HRD-M16 MAT-M16 ii 4042HRD-M16 Adaptor spec.: MAT-M06-020-S10S 5040HRD-M16 MAT-M16 Adaptor threading measure (M06) O Parts Specification Screw Wrench 025 042 (4000 type) FTKA0410 TW15S 04O (5000 type) FTGA0513-P TW20-100 Q Available inserts E15, E16 O Available adaptor E371 E372 Milling 247
