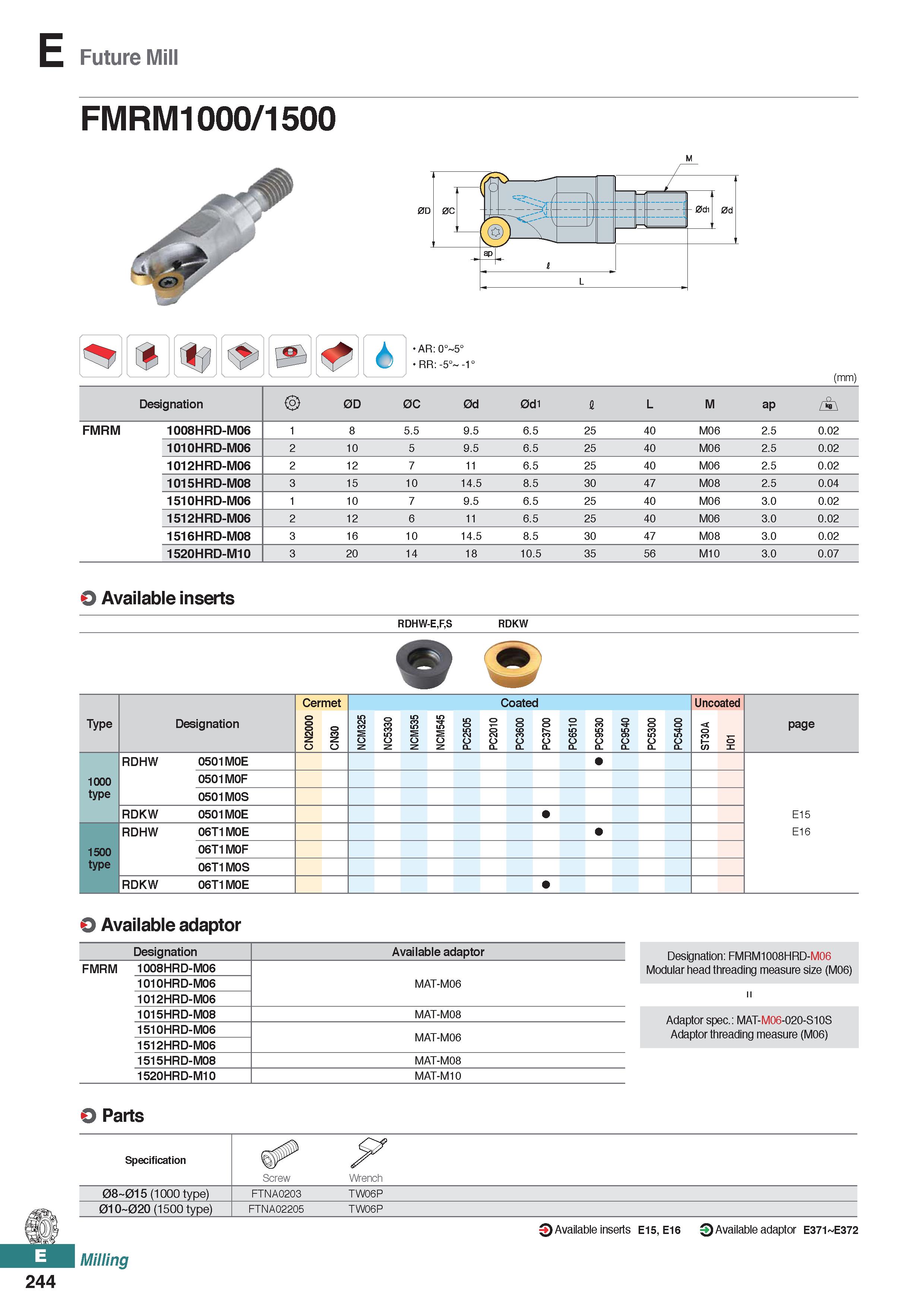

Future Mill AR:0° 5° RR:-5° -1° (mm) Designation 0D 0C 0d 0d1 I L M ap / T\ FMRM 1008HRD-M06 1 8 5.5 9.5 6.5 25 40 M06 2.5 0.02 1010HRD-M06 2 10 5 9.5 6.5 25 40 M06 2.5 0.02 1012HRD-M06 2 12 7 11 6.5 25 40 M06 2.5 0.02 1015HRD-M08 3 15 10 14.5 8.5 30 47 M08 2.5 0.04 1510HRD-M06 1 10 7 9.5 6.5 25 40 M06 3.0 0.02 1512HRD-M06 2 12 6 11 6.5 25 40 M06 3.0 0.02 1516HRD-M08 3 16 10 14.5 8.5 30 47 M08 3.0 0.02 1520HRD-M10 3 20 14 18 10.5 35 56 M10 3.0 0.07 0 Available inserts RDHW-E,F,S RDKW fs Cermet Coated Uncoated Type Designation CN2000 CN30 NCM325 NC5330 NCM535 5 4 5 M C N PC2505 PC2010 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A H01 page RDHW 0501M0E 1000 0501M0F type 0501M0S RDKW 0501M0E E15 RDHW 06T1M0E E16 1500 06T1M0F type 06T1M0S RDKW 06T1M0E O Available adaptor Designation Available adaptor FMRM 1008HRD-M06 1010HRD-M06 MAT-M06 1012HRD-M06 1015HRD-M08 MAT-M08 1510HRD-M06 MAT-M06 1512HRD-M06 1515HRD-M08 MAT-M08 1520HRD-M10 MAT-M10 Designation: FMRM1008HRD-M06 Modular head threading measure size (M06) Adaptor spec.: MAT-M06-020-S10S Adaptor threading measure (M06) O Parts 244 Specification Screw Wrench 08 015 (1000 type) FTNA0203 TW06P 01O 02O (1500 type) FTNA02205 TW06P Milling Q Available inserts E15, E16 O Available adaptor E371 E372
