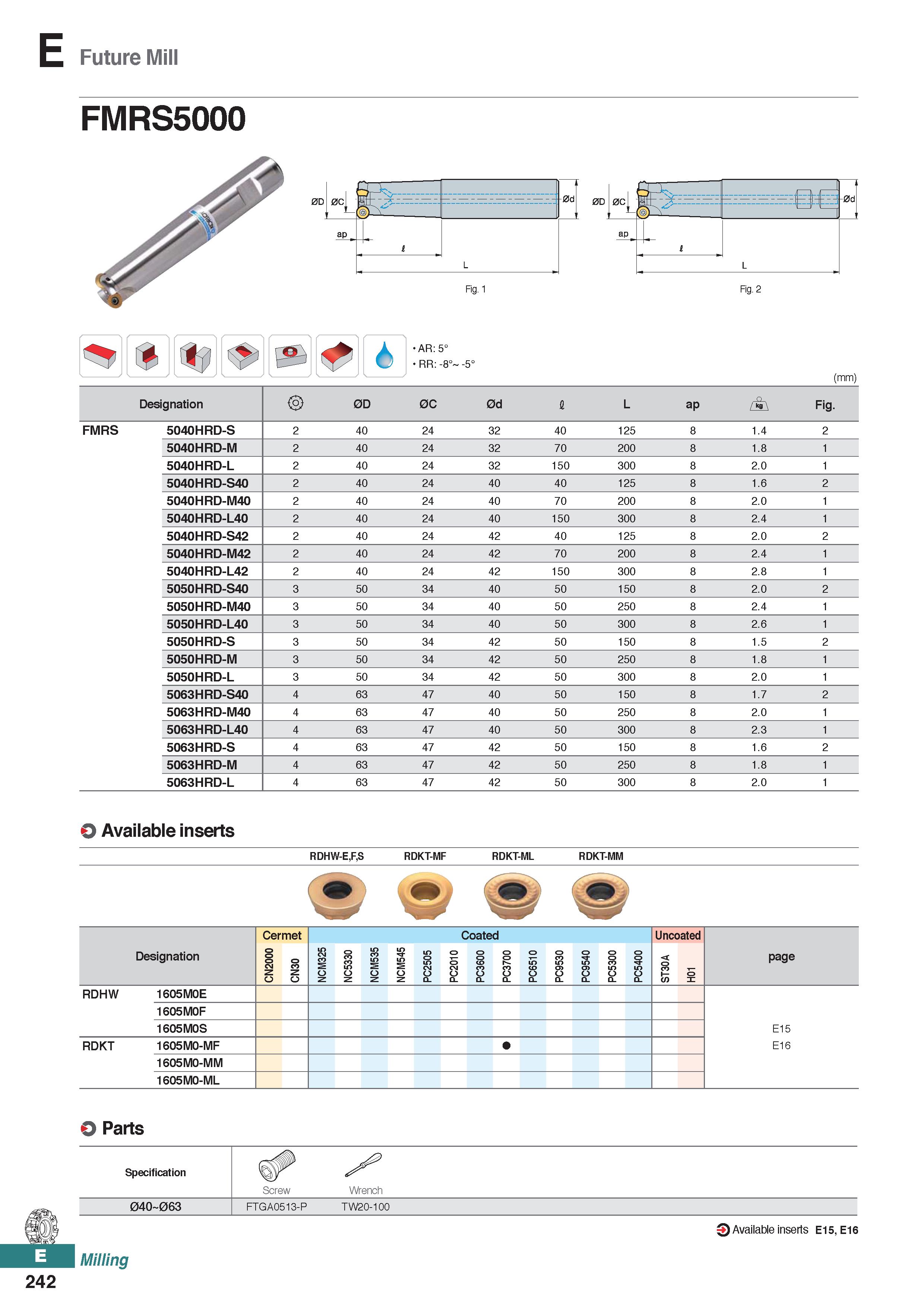

Future Mill FMRS5000 AR:5 RR: -I 8° -5° (mm) Designation 2> 0D 0C 0d I L ap /i\ Fig. FMRS 5040HRD-S 2 40 24 32 40 125 8 1.4 2 5040HRD-M 2 40 24 32 70 200 8 1.8 1 5040HRD-L 2 40 24 32 150 300 8 2.0 1 5040HRD-S40 2 40 24 40 40 125 8 1.6 5040HRD-M40 2 40 24 40 70 200 8 2.0 1 5040HRD-L40 2 40 24 40 150 300 8 2.4 1 5040HRD-S42 2 40 24 42 40 125 8 2.0 5040HRD-M42 2 40 24 42 70 200 8 2.4 1 5040HRD-L42 2 40 24 42 150 300 8 2.8 1 5050HRD-S40 3 50 34 40 50 150 8 2.0 5050HRD-M40 3 50 34 40 50 250 8 2.4 1 5050HRD-L40 3 50 34 40 50 300 8 2.6 1 5050HRD-S 3 50 34 42 50 150 8 1.5 5050HRD-M 3 50 34 42 50 250 8 1.8 1 5050HRD-L 3 50 34 42 50 300 8 2.0 1 5063HRD-S40 4 63 47 40 50 150 8 1.7 5063HRD-M40 4 63 47 40 50 250 8 2.0 1 5063HRD-L40 4 63 47 40 50 300 8 2.3 1 5063HRD-S 4 63 47 42 50 150 8 1.6 5063HRD-M 4 63 47 42 50 250 8 1.8 1 5063HRD-L 4 63 47 42 50 300 8 2.0 1 O Available inserts RDHW-E,F,S RDKT-MF RDKT-ML RDKT-MM Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2010 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A H01 RDHW 1605M0E 1605M0F 1605M0S E15 RDKT 1605M0-MF E16 1605M0-MM 1605M0-ML O Parts Specification Screw Wrench 04O 063 FTGA0513-P TW20-100 O Available inserts E15, E16 Milling 242
