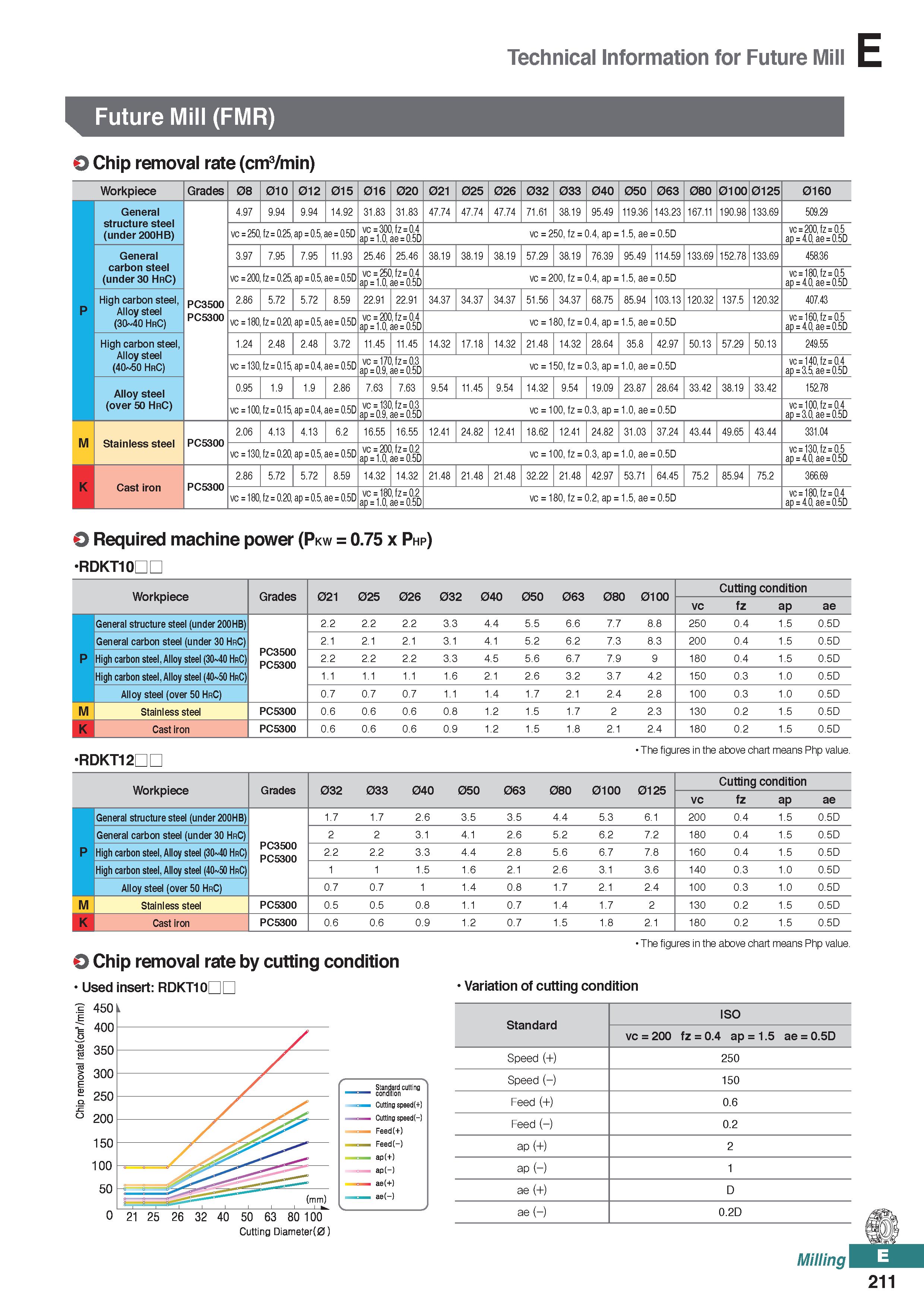

Technical Information for Future Mill Future Mill (FMR) 0 Chip removal rate (cm3/min) workpiece Grades 08 010 012 015 016 020 021 025 026 032 033 040 050 063 080 0100 0125 0160 General structure steel (under 200HB) 4.97 9.94 9.94 14.92 31.83 31.83 47.74 47.74 47.74 71.61 38.19 95.49 119.36 143.23 167.11 190.98 133.69 509.29 vc = 250, fz=0.25, ap = 0.5, ae = 0.5D vc = 300, fz = 0.4 ap = 1.0, ae = 0.5D vc = 250, fz = 0.4, ap = 1.5, ae 0.5D vc = 200, fz = 0.5 ap = 4.0, ae = 0.5D General carbon steel (under 30 HrC) 3.97 7.95 7.95 11.93 25.46 25.46 38.19 38.19 38.19 57.29 38.19 76.39 95.49 114.59 133.69 152.78 133.69 458.36 vc = 200, fz = 0.25, ap = 0.5, ae = 0.5D vc = 250, fz=0.4 ap = 1.0, ae = 0.5D vc = 200, fz = 0.4, ap = 1.5, ae 0.5D vc = 180, fz = 0.5 ap = 4.0, ae = 0.5D P High carbon steel, Alloy steel (30 40 HrC) PC3500 2.86 5.72 5.72 8.59 22.91 22.91 34.37 34.37 34.37 51.56 34.37 68.75 85.94 103.13 120.32 137.5 120.32 407.43 PC5300 vc = 180, fz = 0.20, ap = 0.5, ae = 0.5D vc = 200, fz=0.4 ap = 1.0, ae = 0.5D vc = 180, fz = 0.4, ap = 1.5, ae 0.5D n a, e fz 1 1 1 D5 High carbon steel, Alloy steel (40 50 HrC) 1.24 2.48 2.48 3.72 11.45 11.45 14.32 17.18 14.32 21.48 14.32 28.64 35.8 42.97 50.13 57.29 50.13 249.55 vc = 130, fz = 0.15, ap = 0.4, ae = 0.5D vc = 170, fz=0.3 ap = 0.9, ae = 0.5D vc = 150, fz = 0.3, ap = 1.0, ae = 0.5D vc = 140, fz = 0.4 ap = 3.5, ae = 0.5D Alloy steel 0.95 1.9 1.9 2.86 7.63 7.63 9.54 11.45 9.54 14.32 9.54 19.09 23.87 28.64 33.42 38.19 33.42 152.78 (over 50 HrC) vc = 100, fz = 0.15, ap = 0.4, ae = 0.5D vc = 130, fz=0.3 ap = 0.9, ae = 0.5D vc = 100, fz = 0.3, ap = 1.0, ae = 0.5D vc = 100, fz = 0.4 ap = 3.0, ae = 0.5D M Stainless steel PC5300 2.06 4.13 4.13 6.2 16.55 16.55 12.41 24.82 12.41 18.62 12.41 24.82 31.03 37.24 43.44 49.65 43.44 331.04 vc = 130, fz = 0.20, ap = 0.5, ae = 0.5D vc = 200, fz=0.2 ap = 1.0, ae = 0.5D vc = 100, fz = 0.3, ap = 1.0, ae = 0.5D vc = 130, fz = 0.5 ap = 4.0, ae = 0.5D K Cast iron PC5300 2.86 5.72 5.72 8.59 14.32 14.32 21.48 21.48 21.48 32.22 21.48 42.97 53.71 64.45 75.2 85.94 75.2 366.69 vc = 180, fz = 0.20, ap = 0.5, ae = 0.5D vc = 180, fz=0.2 ap = 1.0, ae = 0.5D vc = 180, fz = 0.2, ap = 1.5, ae = 0.5D vc = 180, fz = 0.4 ap = 4.0, ae = 0.5D O Required machine power (Pkw = 0.75 x Php) RDKT10DL workpiece Grades 021 025 026 032 040 050 063 080 0100 Cutting condition vc fz ap ae General structure steel (under 200HB) 2.2 2.2 2.2 3.3 4.4 5.5 6.6 7.7 8.8 250 0.4 1.5 0.5D General carbon steel (under 30 HrC) PC3500 PC5300 2.1 2.1 2.1 3.1 4.1 5.2 6.2 7.3 8.3 200 0.4 1.5 0.5D P High carbon steel, Alloy steel (30 40 HrC) 2.2 2.2 2.2 3.3 4.5 5.6 6.7 7.9 9 180 0.4 1.5 0.5D High carbon steel, Alloy steel (40 50 HrC) 1.1 1.1 1.1 1.6 2.1 2.6 3.2 3.7 4.2 150 0.3 1.0 0.5D Alloy steel (over 50 HrC) 0.7 0.7 0.7 1.1 1.4 1.7 2.1 2.4 2.8 100 0.3 1.0 0.5D M Stainless steel PC5300 0.6 0.6 0.6 0.8 1.2 1.5 1.7 2 2.3 130 0.2 1.5 0.5D K Cast iron PC5300 0.6 0.6 0.6 0.9 1.2 1.5 1.8 2.1 2.4 180 0.2 1.5 0.5D RDKT12DL The figures in the above chart means Php value. workpiece Grades 032 033 040 050 063 080 0100 0125 Cutting condition vc fz ap ae General structure steel (under 200HB) 1.7 1.7 2.6 3.5 3.5 4.4 5.3 6.1 200 0.4 1.5 0.5D General carbon steel (under 30 HrC) PC3500 PC5300 2 2 3.1 4.1 2.6 5.2 6.2 7.2 180 0.4 1.5 0.5D P High carbon steel, Alloy steel (30 40 HrC) 2.2 2.2 3.3 4.4 2.8 5.6 6.7 7.8 160 0.4 1.5 0.5D High carbon steel, Alloy steel (40 50 HrC) 1.5 1.6 2.1 2.6 3.1 3.6 140 0.3 1.0 0.5D Alloy steel (over 50 HrC) 0.7 0.7 1 1.4 0.8 1.7 2.1 2.4 100 0.3 1.0 0.5D M Stainless steel PC5300 0.5 0.5 0.8 1.1 0.7 1.4 1.7 2 130 0.2 1.5 0.5D K Cast iron PC5300 0.6 0.6 0.9 1.2 0.7 1.5 1.8 2.1 180 0.2 1.5 0.5D O Chip removal rate by cutting condition Used insert: RDKT10GL The figures in the above chart means Php value. > Variation of cutting condition JE 5 „T. cutting condition Cutting speed +) Cutting speed(-) Feed(+) Feed(-) ap(+) ap(-) ae(+) ae(-) Standard ISO vc = 200 fz = 0.4 ap = 1.5 ae = 0.5D Speed (+) 250 Speed (-) 150 Feed (+) 0.6 Feed (-) 0.2 ap (+) 2 ap (-) 1 ae (+) D ae (-) 0.2D Cutting Diameter(0) Milling
