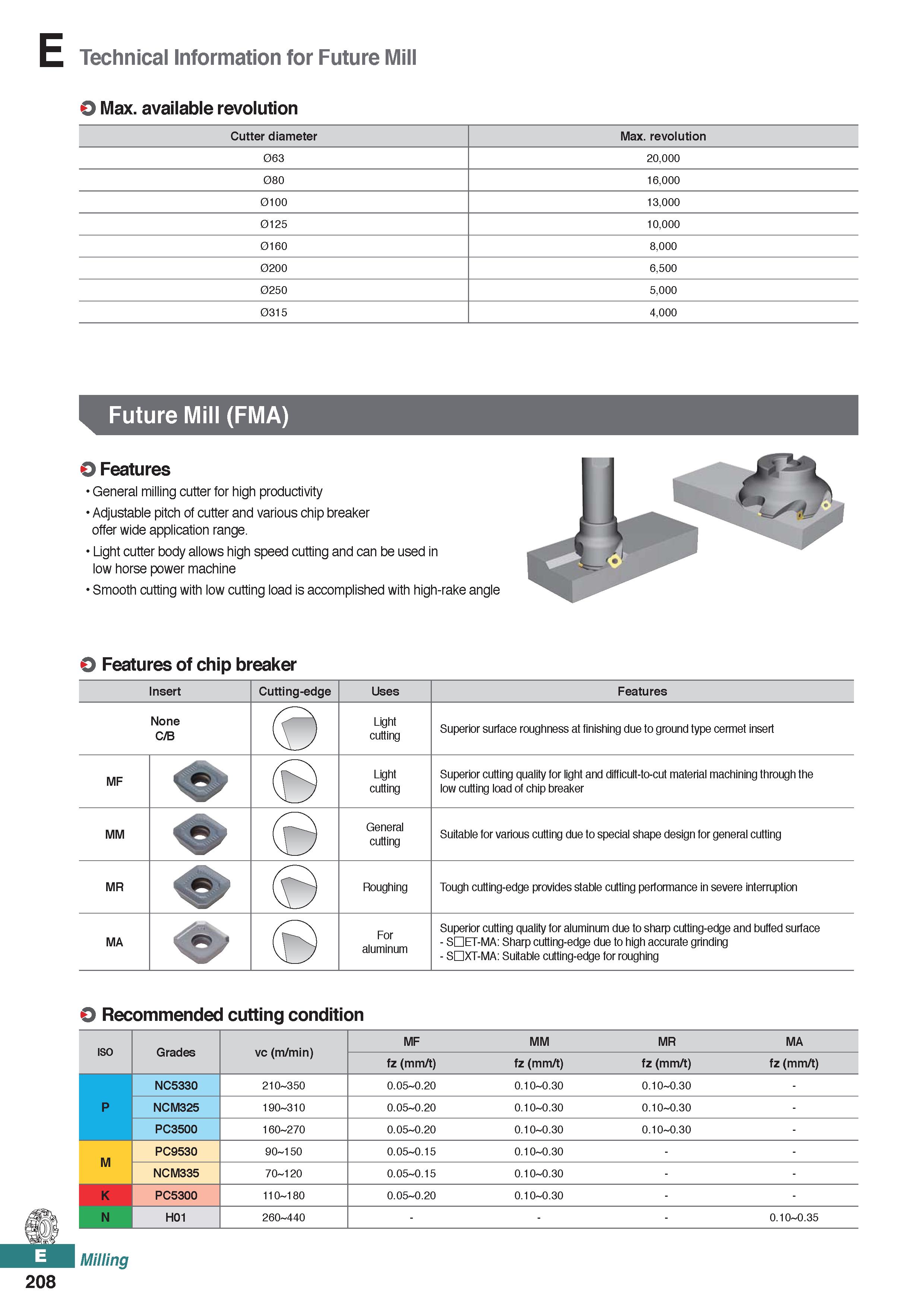

E Technical Information for Future Mill O Max. available revolution Cutter diameter Max. revolution 063 20,000 080 16,000 0100 13,000 0125 10,000 0160 8,000 0200 6,500 0250 5,000 0315 4,000 Future Mill (FMA) O Features General milling cutter for high productivity Adjustable pitch of cutter and various chip breaker offer wide application range. Light cutter body allows high speed cutting and can be used in low horse power machine Smooth cutting with low cutting load is accomplished with high-rake angle O Features of chip breaker Insert Cutting-edge Uses Features None C/B Light cutting Superior surface roughness at finishing due to ground type cermet insert MF v 0 Light cutting Superior cutting quality for light and difficult-to-cut material machining through the low cutting load of chip breaker MM 0 General cutting Suitable for various cutting due to special shape design for general cutting MR 0 Roughing Tough cutting-edge provides stable cutting performance in severe interruption MA a 0 For aluminum Superior cutting quality for aluminum due to sharp cutting-edge and buffed surface - SDET-MA: Sharp cutting-edge due to high accurate grinding - SDXT-MA: Suitable cutting-edge for roughing O Recommended cutting condition ISO Grades vc (m/min) MF MM MR MA fz (mm/t) fz (mm/t) fz (mm/t) fz (mm/t) NC5330 210 350 0.05 0.20 0.10 0.30 0.10 0.30 - P NCM325 190 310 0.05 0.20 0.10 0.30 0.10 0.30 - PC3500 160 270 0.05 0.20 0.10 0.30 0.10 0.30 - M PC9530 90 150 0.05 0.15 0.10 0.30 NCM335 70 120 0.05 0.15 0.10 0.30 K PC5300 110 180 0.05 0.20 0.10 0.30 N H01 260 440 - 0.10 0.35 208 Milling
