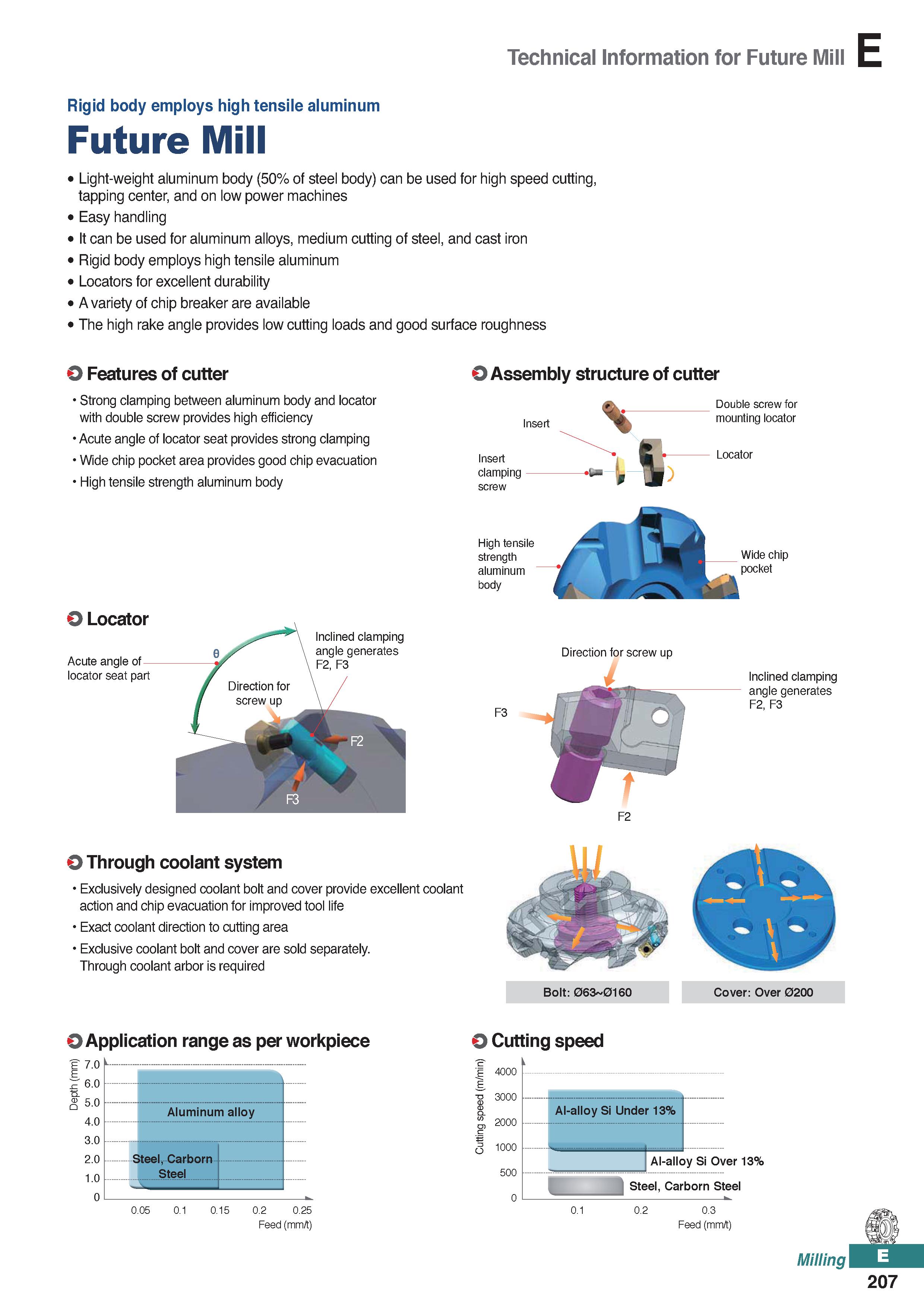

Technical Information for Future Mill Rigid body employs high tensile aluminum Future Mill Light-weight aluminum body (50% of steel body) can be used for high speed cutting, tapping center, and on low power machines Easy handling It can be used for aluminum alloys, medium cutting of steel, and cast iron Rigid body employs high tensile aluminum Locators for excellent durability A variety of chip breaker are available The high rake angle provides low cutting loads and good surface roughness O Features of cutter Strong clamping between aluminum body and locator with double screw provides high efficiency Acute angle of locator seat provides strong clamping Wide chip pocket area provides good chip evacuation High tensile strength aluminum body O Locator Acute angle of locator seat part lnclined clamping angle generates F2, F3 O Assembly structure of cutter Insert Double screw for mounting locator Insert clamping screw High tensile strength aluminum body Locator F3 Wide chip pocket Direction for screw up lnclined clamping angle generates F2, F3 F2 O Through coolant system Exclusively designed coolant bolt and cover provide excellent coolant action and chip evacuation for improved tool life Exact coolant direction to cutting area Exclusive coolant bolt and cover are sold separately. Through coolant arbor is required Bolt: 063 0160 Cover: Over 0200 O Application range as per workpiece 7.0 m 6.0 H S 5.0 4.0 3.0 2.0 1.0 0 Aluminum alloy Steel 0.05 0.1 0.15 0.2 0.25 Feed (mm/t) O Cutting speed 4000 3000 2000 1000 500 0 Al-alloy Si Under 13% Al-alloy Si Over 13% ) Steel, Carborn Steel 0.1 0.2 0.3 Feed (mm/t) Milling 207
